21
Chapter 2: Maintenance and Component Installation
Installing the Hard Drive
The motherboard should be installed before installing the hard drive.
1. Make sure there is no power to the system as described in section 2.1 and remove the
chassis cover.
2. Remove the two screws securing the hard drive tray to the support bracket and set them
aside for later use. Lift the tray out.
3. Place the hard drive into the tray and secure it to the tray with the screws provided with
hard drive.
4. Return the hard drive tray assembly into the chassis, aligning the tabs of the tray with
the slots in the chassis. Secure the tray to the chassis support bracket with the screws
previously set aside.
5. Attach the cable SATA connector and to the motherboard connector. This cable carries
both the SATA sginal and the SATA power.
6. Reinstall the chassis cover and power up the system.
2.4 Chassis Components
Installing the Hard Drive
The SC101S can accommodate a single xed 2.5" hard drive of 15 mm thickness. It is installed
to a mounting tray inside the chassis. Use an enterprise quality drive.

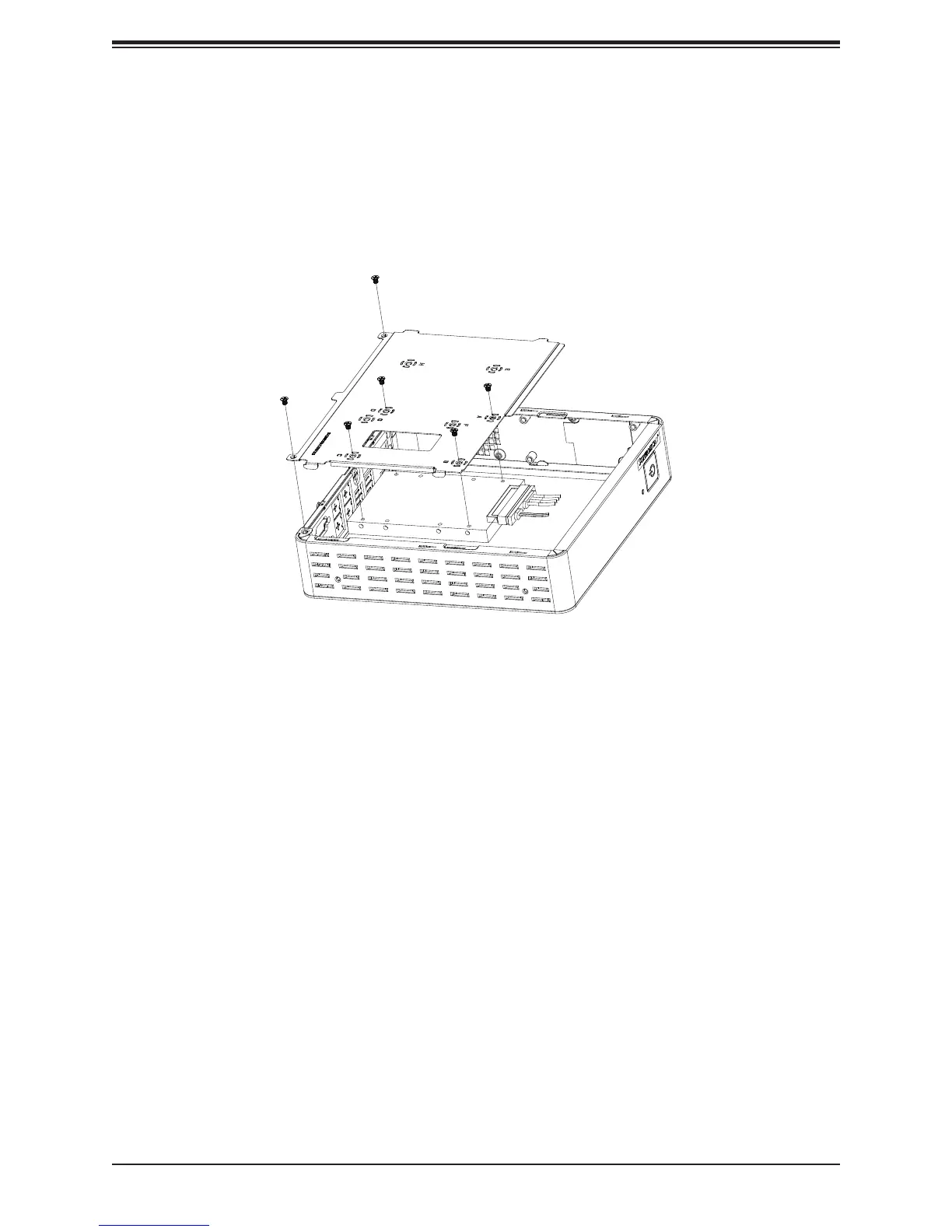

Figure 2-4. Installing the Hard Drive
