Supermicro X10SRH-CF/CLN4F User Manual

Chapter 2: Installation
2-25
DESIGNED IN USA
1.00REV:
X10SRH-CF
SAS CODE
1
BIOS
LICENSE
IPMI CODE
MAC CODE
BAR CODE
321
123
PCH SLOT2 PCI-E 2.0 X4(IN X8)
LGA2011-3
1
1
PCH
C610
i350
LSI
3008
BMC
BIOS
SP1
I-SATA5
S-SATA2
S-SATA1
S-SATA0
I-SATA3
I-SATA2
I-SATA1
I-SATA0
I-SATA4
S-SATA3
JSTBY1
JPI2C1
FANA
FAN3
FAN2
FAN1
FAN4
FANB
FANC
FAN5
BT1
JBT1
LEDM1
LE2
LE1
JUIDB1
JPWR1
JP4
JIPMB1
JSD2
JSD1
JVR1
JPL1
JVRM1
JVRM2
JBR1
JI2C1
JI2C2
JPB1
JPG1
JWD1
JPME2
JPS1
T-SGPIO3
T-SGPIO2
T-SGPIO1
J23
JD1
JF1
JTPM1
LEDS1
JF2
J33
JOH1
JL1
JPSAS1
J24
SATA DOM
+
POWER
+
POWERSATA DOM
UID-LED
X
LED
2-3:DISABLE
1-2:ENABLE
JPS1:SAS 1-2:ENABLE
2-3:DISABLE
LAN2/LAN4
L-SAS4-7
L-SAS0-3
1-2:ENABLE
2-3:DISABLE
JPB1:BMC
CPU
CPU SLOT6 PCI-E 3.0 X8(IN X16)
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X8
PCH SLOT3 PCI-E 2.0 X2(IN X4)
JPME2
2-3:ME MANUFACTURING MODE
1-2:Normal
USB0/1
DIMMC2
PWR LED1-3:
JD1:
SPEAKER4-7:
JBR1
1-2:Normal
2-3:BIOS recovery
:TPM/PRO80
CHASSIS
INTRUSION
USB8/9
JF1
USB6/7
LED
NMI
PWR
X
USB2/3(3.0)
HDD
NIC
1
JWD1:Watch Dog
1-2:RST
2-3:NMI
DIMMA2 DIMMA1
USB10(3.0)
FF
2
NIC
OH
LAN1/LAN3
RST
PWR
USB4/5
ON
1-2:ENABLE
2-3:DISABLE
JPG1:VGA
JI2C1/JI2C2
I2C bus for PCI-E slot
CPU SLOT7 PCI-E 3.0 X4(IN X8)
COM2
COM1
DIMMB1
DIMMD2
DIMMD1
DIMMC1
IPMI_LAN
UID-SW
USB11(3.0)
SATA DOM POWER
CLEARCMOS
JPL1:LAN1/2/3/4 1-2:ENABLE
VGA
2-3:DISABLE
DIMMB2

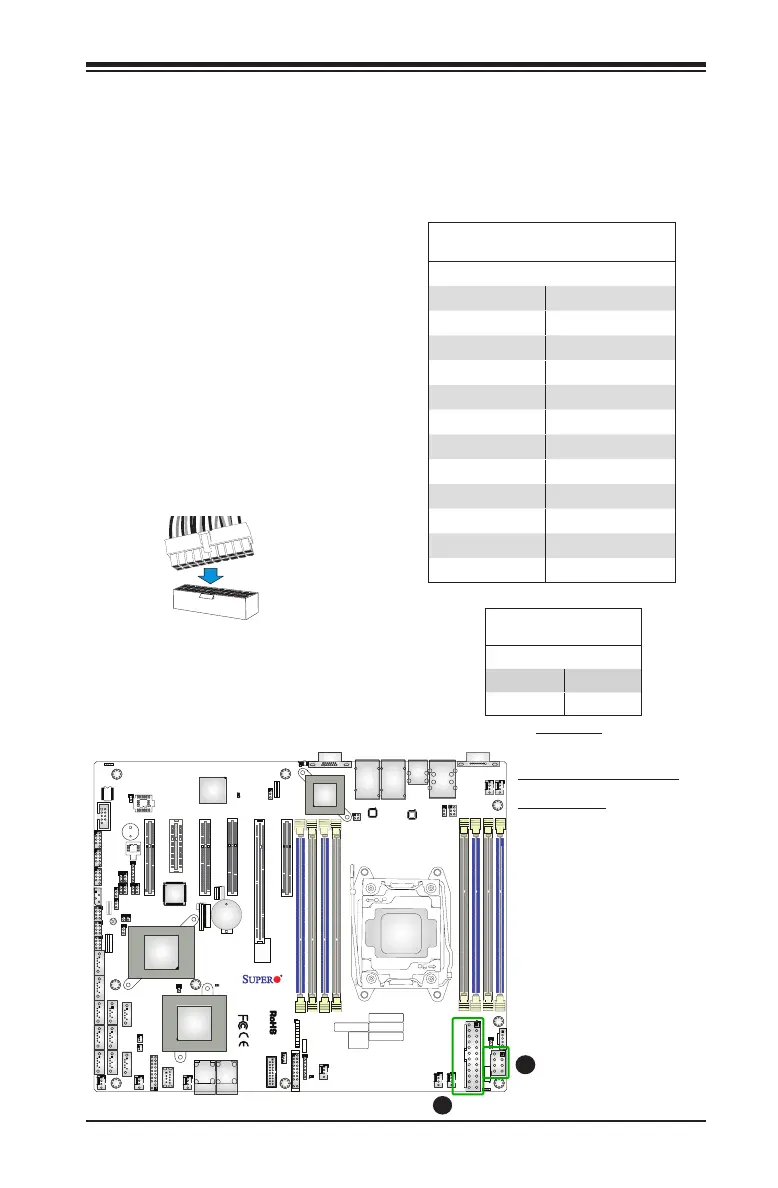

2-7 Connecting Cables
This section provides brief descriptions and pin-out denitions for onboard headers
and connectors. Be sure to use the correct cable for each header or connector. For
information on Back Panel USB and Front Panel USB ports, refer to page 2-17.
A. 24-Pin ATX Main PWR
B. 8-Pin PWR
ATX Power 24-pin Connector
Pin Denitions (J24)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
ATX Main PWR & CPU PWR
Connectors (J24 & JPW1)
The 24-pin main power connector
(J24) is used to provide power to the
motherboard. The 8-pin CPU PWR
connector (JPWR1) is also required
for the processor. These power
connectors meet the SSI EPS 12V
specication. See the table on the
right for pin denitions.
24-Pin Main PWR
A
B
