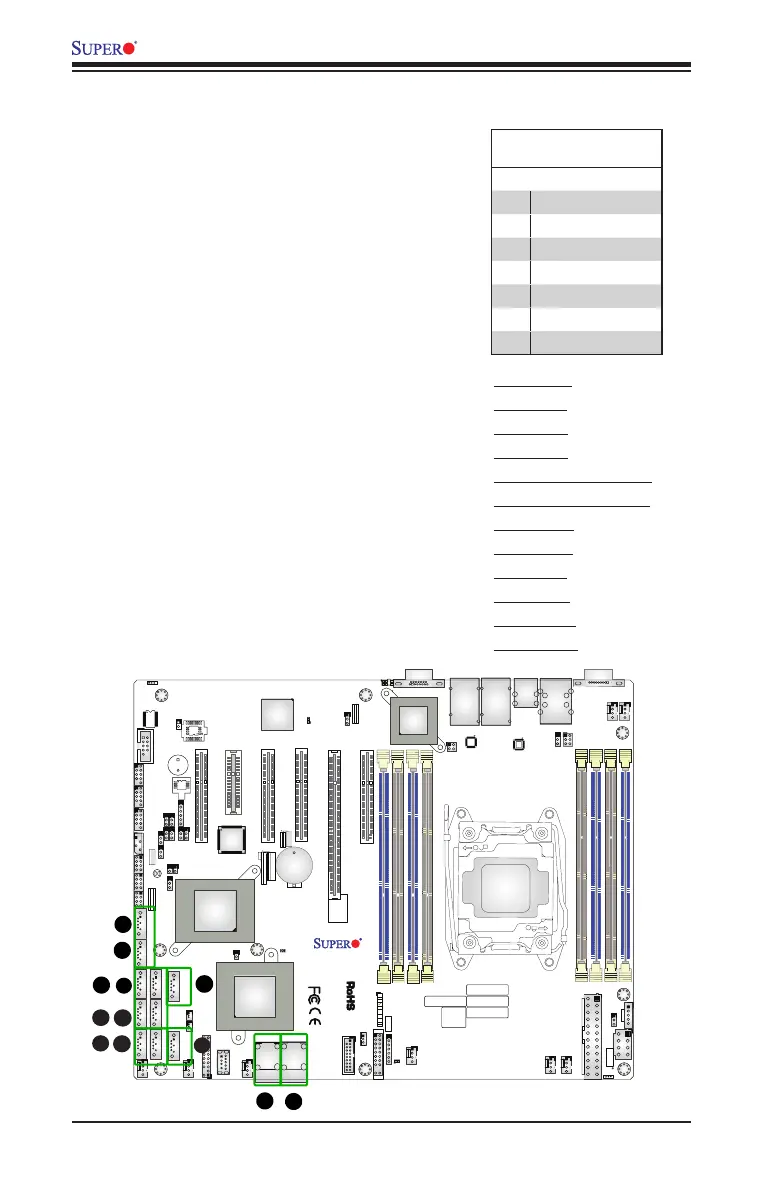

2-10 SATA Connections
SATA/SAS Connections
Ten SATA 3.0 connectors (I-SATA 0-5) and (S-
SATA 0-3) are located on the board. I-SATA 0-5
ports are supported by the AHCI controller and
are compatible with RAID 0, 1, 5, 10. S-SATA 0-3
ports are supported by the sSATA controller and
are compatible with RAID 0, 1, 5, 10. In addition to
SATA connections, there are eight SAS connec-
tions (L-SAS 0-7) supported by the LSI 3008 SAS
controller. These Serial Link connections provide
faster data transmission than legacy Parallel ATA.
See the table on the right for pin denitions.
SATA/SAS Connectors
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
A. I-SATA 0
B. I-SATA 1
C. I-SATA 2
D. I-SATA 3
E. I-SATA 4 (SATA DOM)
F. I-SATA 5 (SATA DOM)
G. S-SATA 0
H. S-SATA 1
I. S-SATA 2
J. S-SATA 3
L. L-SAS 0-3
K. L-SAS 4-7
D
E
F
C
A
B
G
H
I
J
K
L
L
