1. UID
2. IPMI_LAN
3. Front UID LED
4. LED1
2
1
2

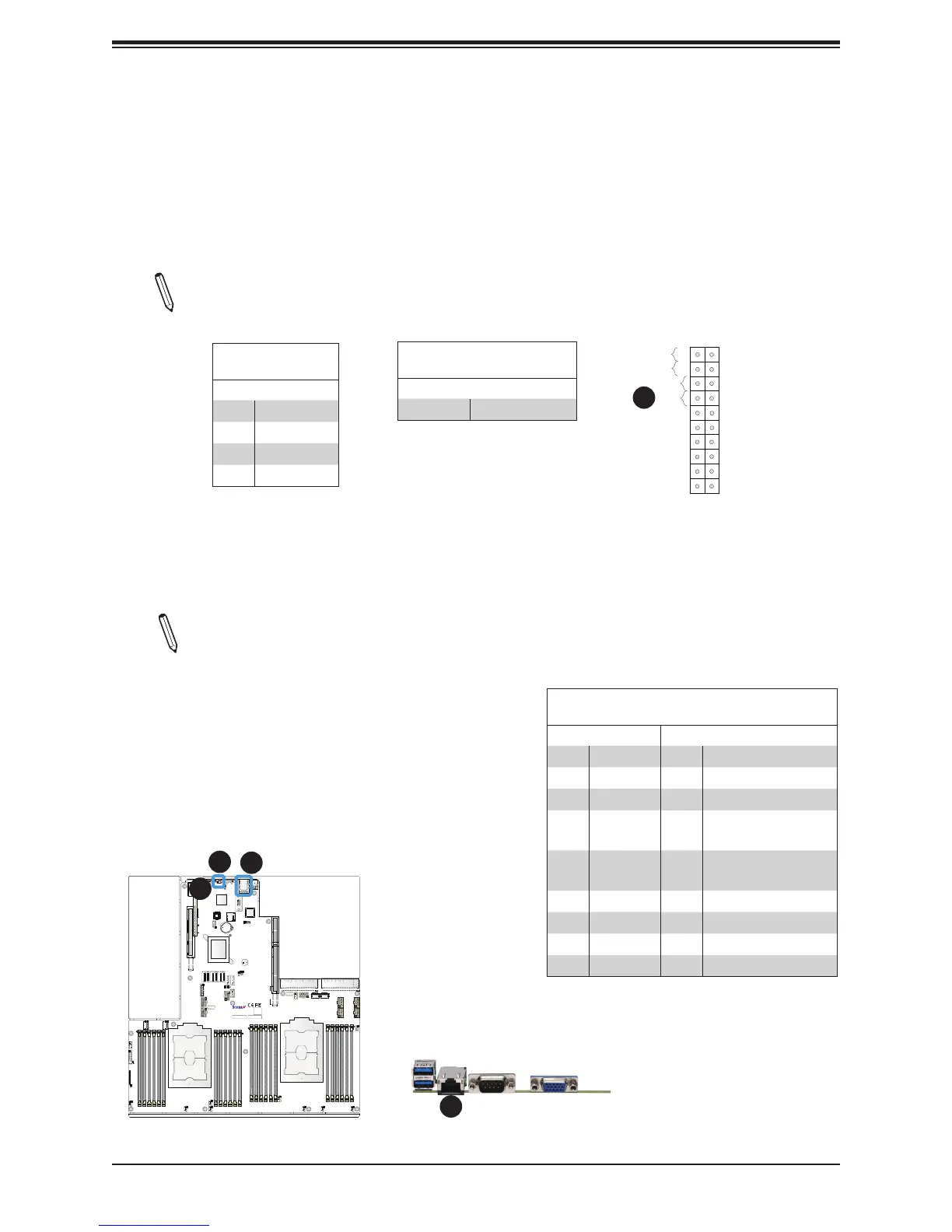

Unit Identier Switch/UID LED Indicator
A rear Unit Identier (UID) switch (JUIDB2) and an rear LED Indicator (LED1) are located
on the rear side of the system. The front UID LED is located on Pin 7 of the Front Control
Panel (JF1). When you press the UID switch, both front and rear UID LED indicators will be
turned on. Press the UID switch again to turn off the LEDs. The UID Indicators provide easy
identication of a system unit that may be in need of service.
Note: UID can also be triggered via IPMI on the motherboard. For more information
on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.
supermicro.com.
UID Switch
Pin Denitions
Pin# Denition
1 Ground
2 Ground
3 Button In
4 Button In
UID LED
Pin Denitions
Color Status
Blue: On Unit Identied
IPMI LAN Port
An IPMI_Dedicated LAN that supports Gigabit LAN is located next to USB 0/1 ports on the
back panel. This LAN port is supported by the onboard AST 2500 BMC and accepts an RJ45
type cable. Refer to the LED Indicator Section for LAN LED information.
Note: For additional LAN connections, please install an appropriate Ultra riser card on
Slot SXB3A/3B/3C. Please refer to the AOC list posted at http://www.supermicro.com/
support/resources/aoc/aoc_compatibility_ultra.cfm for more information.
Power Button
OH/Fan Fail LED
1
Reset Button
2
Power Fail LED
HDD LED
FP PWRLED
Reset
PWR
UID LED
Ground
Ground
19 20
3.3V
X
Ground
NMI
X
Vcc
Vcc
X
X NIC2 Activity LED
NIC1 Activity LED
3
4
LAN Ports
Pin Denitions
Pin# Denition Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4
TD1+
13
Link 100 LED (Yellow,
+3V3SB)
5
TD1-
14
Link 1000 LED (Yel-
low, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 18 Ground
