X11SPW-CTF/-TF User's Manual

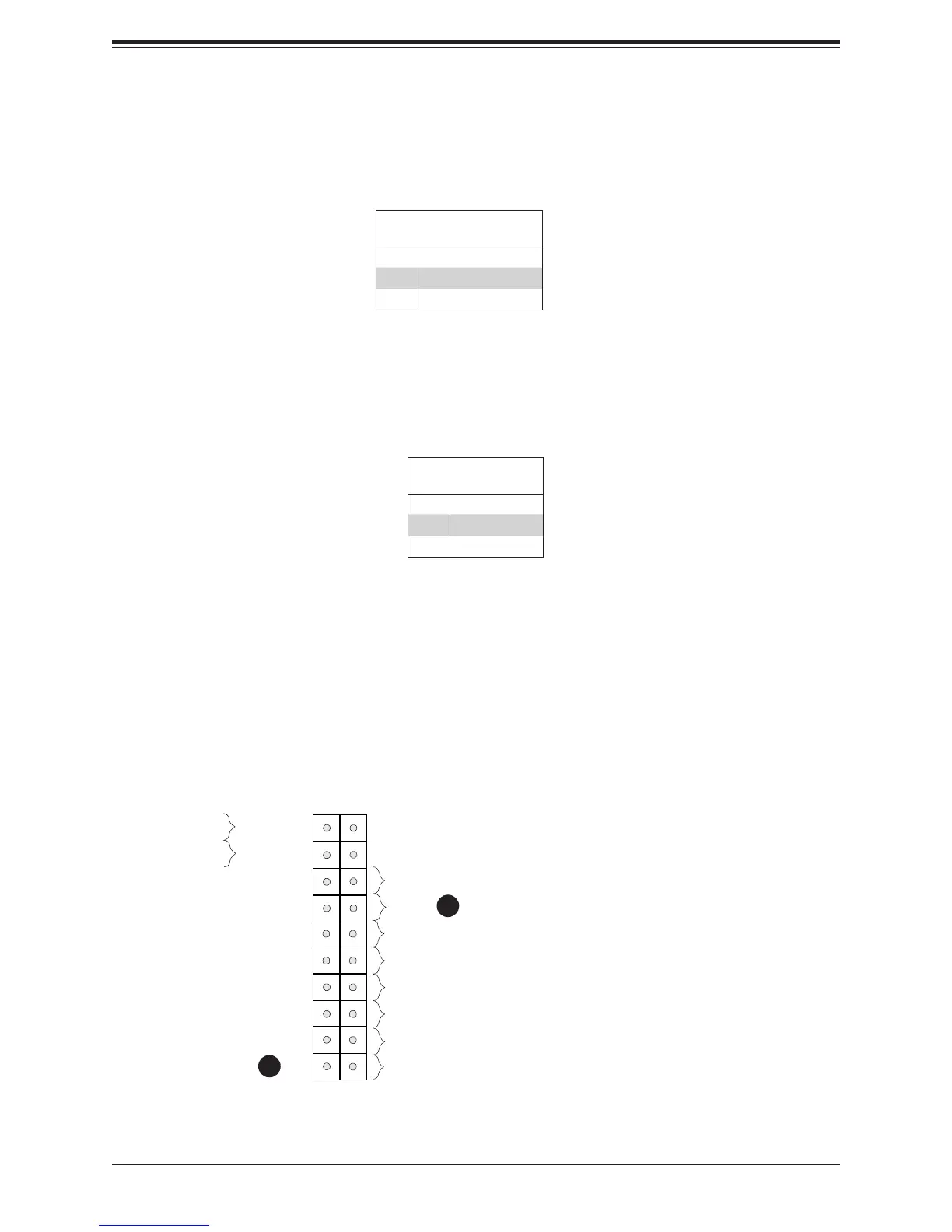

UID LED
The UID LED is on pins 7 and 8 of JF1. Connect a cable here to show the UID activity. Refer
to the table below for pin denitions.
1. UID LED
2. NMI
Power Button
UID LED
NIC1 Active LED
Reset Button
HDD LED
PWR LED
Reset
PWR
3.3V Stby
3.3V Stby
3.3V Stby
Ground
19
X
Ground
X
3.3V Stby
3.3 V
5V Stby
20
1 2
Ground
Power Fail LED
NIC2 Active LED
NMI
1
2
NMI Button
The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the
table below for pin denitions.
NMI Button
Pin Denitions (JF1)
Pins Denition
19 Control
20 Ground
UID LED
Pin Denitions (JF1)
Pins Denition
7 5V Stby
8 UID LED
