Supermicro X11SPW-CTF User Manual

46
X11SPW-CTF/-TF User's Manual
JTPM1
SAN MAC
SAS CODE
PRESS FIT
JPWR3
JSD2
JSD1
JBT1
JNVI2C1
JRK1
MH11
MH10
JSTBY1
BT1
+
LEDS1
JD1
JP2
JP3
I-SGPIO1
S-SGPIO1
I-SGPIO2
I-SATA3
I-SATA2
I-SATA1
I-SATA0
S-SATA1
S-SATA0
JPWR2
JPWR1
SXB2
IPMI CODE
FAN6
FAN7
FAN5
FAN3
FAN4
FAN2
FAN1
LE2
LEDM1
LE3
LE1
JP4
JPSAS1
JPS1
JP1
JPG1
JWD1
JPME2 JPTG1
JOH1
JF1
JPI2C1
BIOS LICENSE
DESIGNED IN USA
MAC CODE
X11SPW-CTF
REV:1.02
BAR CODE
M.2 PCI-E 3.0 X4
USB6
USB4/5
SXB1C
SXB1B
SXB1A
USB10/11(3.0)
JIPMB1
USB7/8(3.0)
USB9(3.0)
USB2/3
COM2
I-SATA 4-7
LAN2
VGA
CPU
LAN1
DIMMB1
LEDLED12LEDFAIL
ON
DIMMA1
NMIXPWRHDDNICNICUIDPSRSTPWR
DIMMF1 DIMME1 DIMMD1
DIMMC1
IPMI_LAN
USB0/1
COM1
SP1
LSI3008
(-CTF only)
Intel
C622
ASpeed
AST2500
Intel
X557
JUIDB1
JL1
L-SAS0-3
Required Connection
+12V 8-pin Power
Pin Denitions
Pin# Denition
1 - 4 Ground
5 - 8 +12V
Secondary Power Connector
JPWR1 must also be connected to the power supply. This connector is used to power the
processor.
1
Power Connector for GPU
JPWR3 is a 4-pin 12V power connector for GPU cards that requires an extra 12V power with
up to 75W.
2

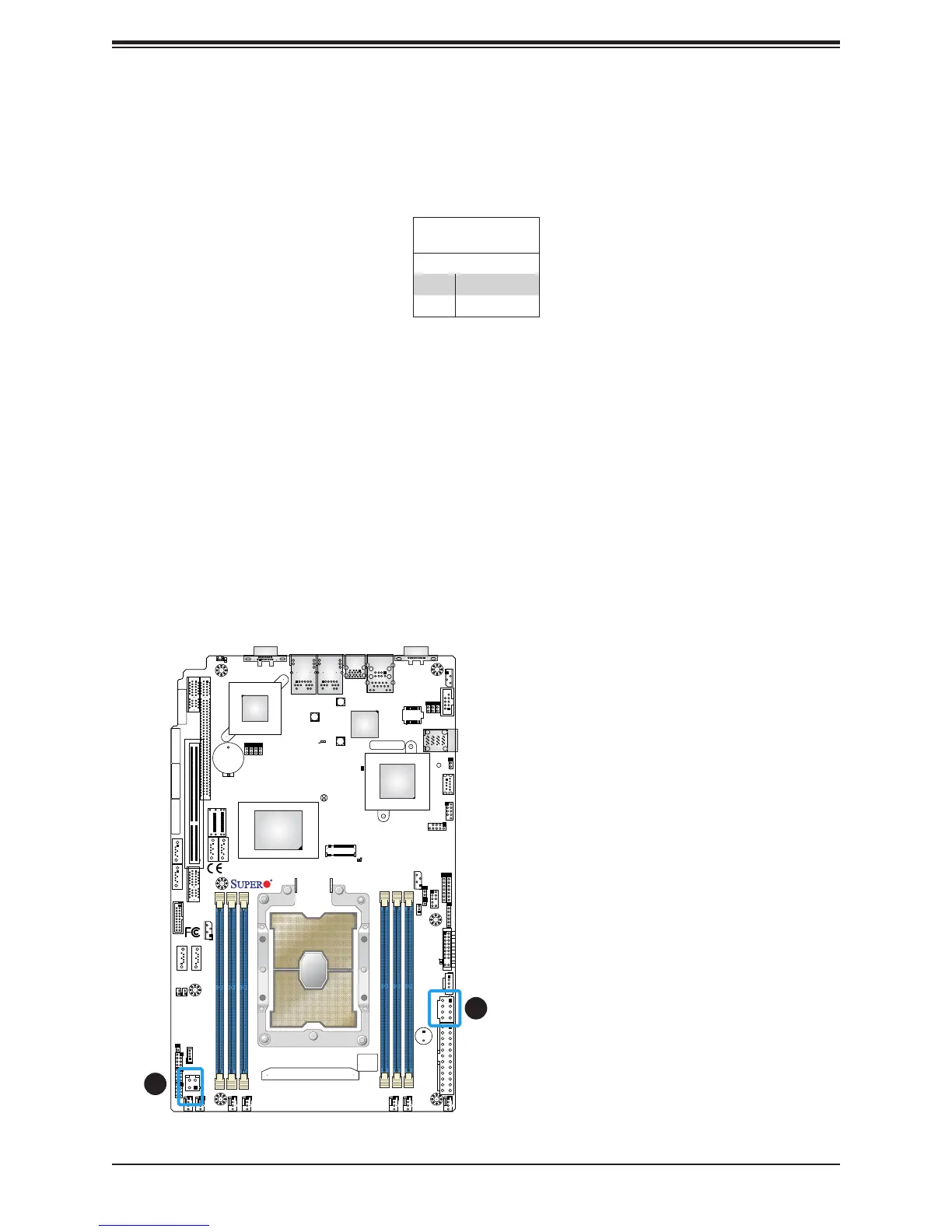

1. 8-Pin PWR
2. 4-Pin 12V for GPU

Supermicro X11SPW-CTF Specifications

General

Brand	Supermicro
Model	X11SPW-CTF
Category	Motherboard
Language	English
