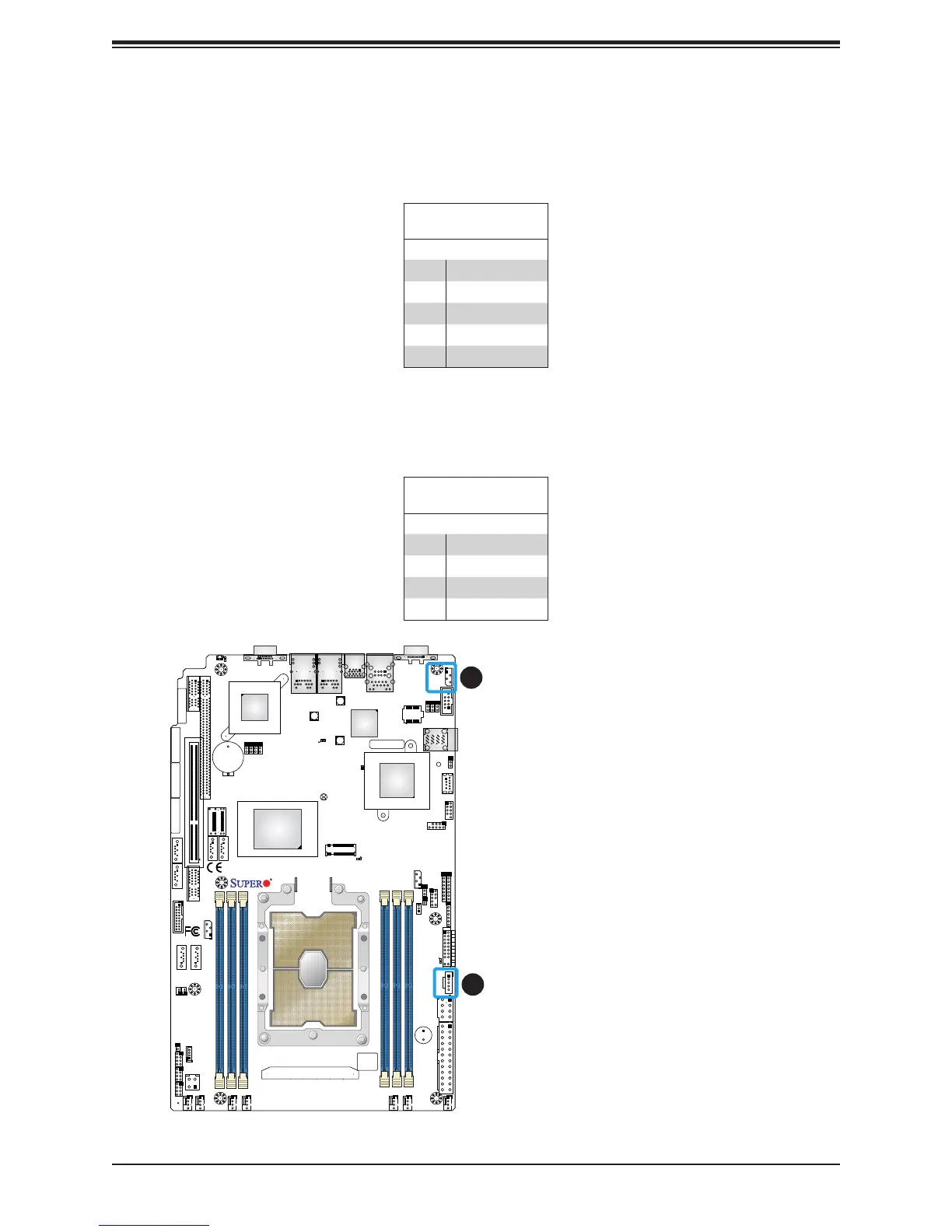

Power SMB (I
2
C) Header
A Power System Management Bus (I
2
C) header at JPI
2
C1 monitors the power supply, fan,
and system temperatures. See the table below for pin denitions.
Power SMB Header
Pin Denitions
Pin# Denition
1 Clock
2 Data
3 PMBUS_Alert
4 Ground
5 +3.3V
4-pin BMC External I
2
C Header
A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect a cable to this
header to use the IPMB I
2
C connection on your system. See the table below for pin denitions.
External I
2
C Header
Pin Denitions
Pin# Denition
1 Data
2 Ground
3 Clock
4 No Connection
1
2
1. Power SMB Header
2. BMC External Header
