Supermicro X11SSL-CF User Manual

42

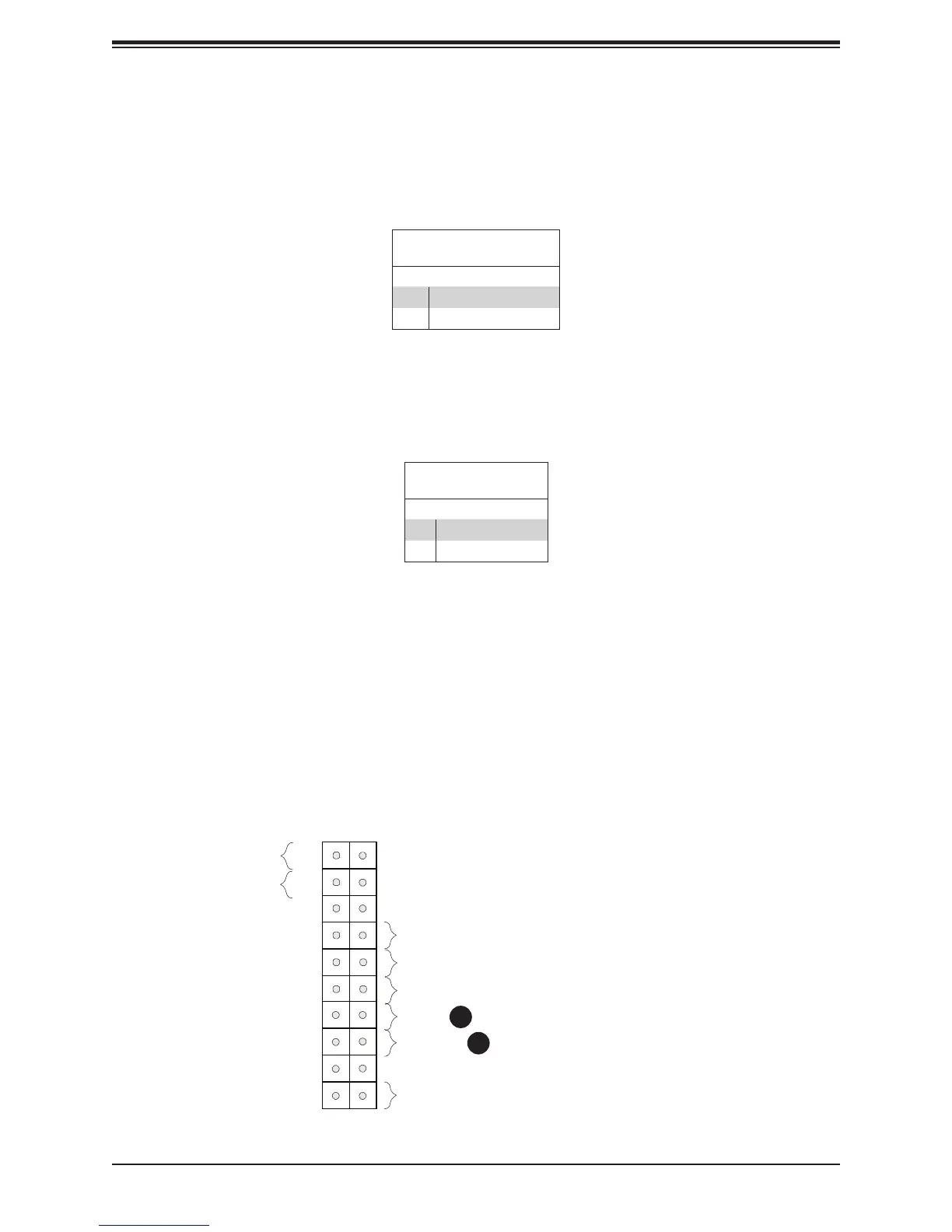

X11SSL-CF/-nF User Manual
Power Button
Blue+ (OH/Fan Fail)
1
NIC1 Link LED
Reset Button
2
Power Fail LED
HDD LED
FP PWRLED
Reset
PWR
3.3 V
ID_UID_SW/3.3V Stdby
Red+ (Blue LED Cathode)
Ground
Ground
19 20
3.3V
X
X
NIC2 Link LED
NIC2 Active LED
NIC1 Active LED
X
X
1
2
1. HDD/UID
2. PWR LED
HDD LED/UID Switch
The HDD LED/UID Switch connection is located on pins 13 and 14 of JF1. Attach a cable to
pin 14 to show hard drive activity status. Attach a cable to pin 13 to use UID switch. Refer
to the table below for pin denitions.
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 3.3V Stdby/UID_SW
14 HDD Active
Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin denitions.
Power LED
Pin Denitions (JF1)
Pin# Denition
15 3.3V
16 PWR LED
