Supermicro X11SSL-CF User Manual

61
Chapter 2: Installation

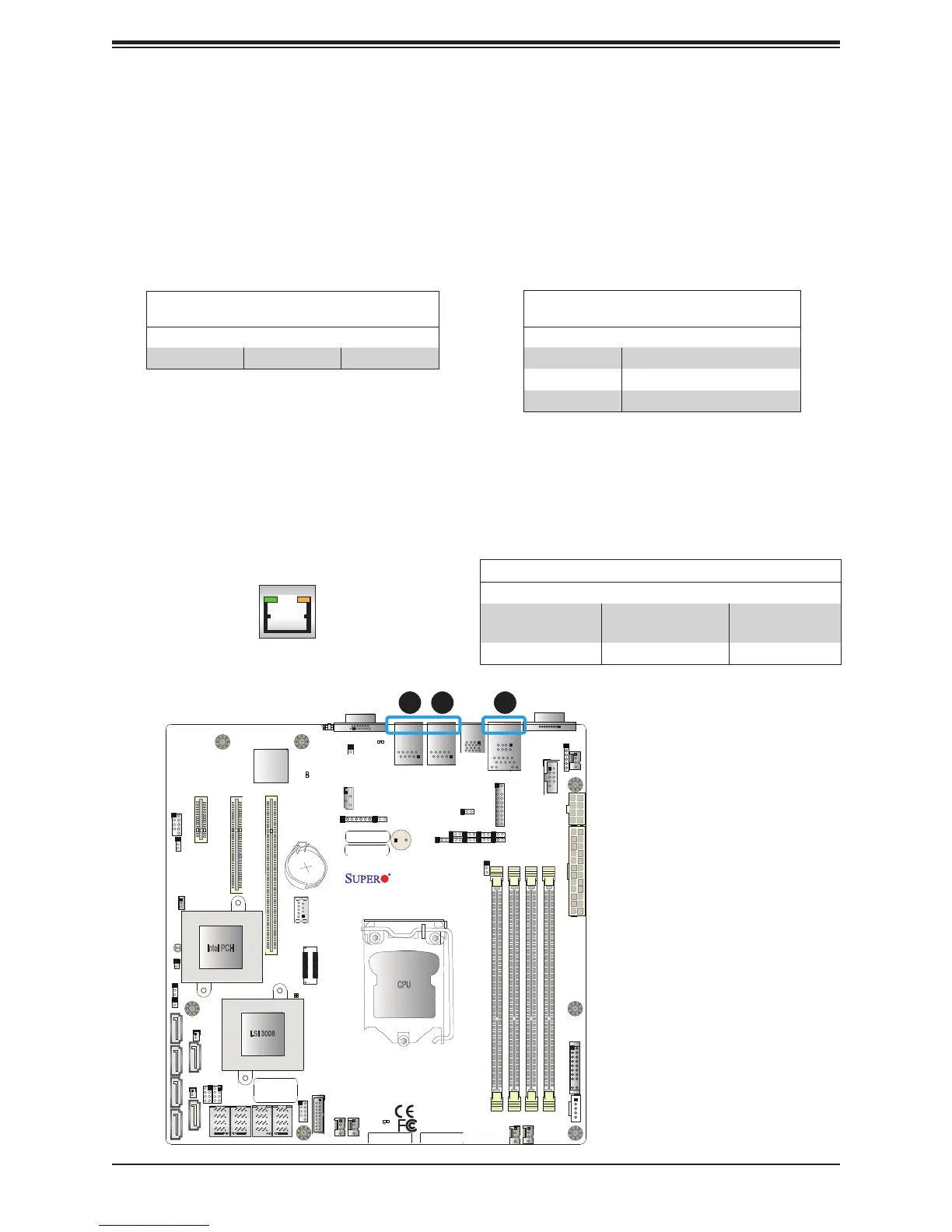

2.9 LED Indicators
JPWR2
JPWR1
BMC
Intel PCH
COM2
IPMI_LAN
USB 0/1
COM1
FAN4
JPWR2
USB 6/7
(3.0)
LAN 1
LAN 2
VGA
JTPM1
JPL1
JPL2
JD1
LED BMC
JIPMB1
JOH1
LE1
JUIDB1
USB 8 (3.0)
LED S1
LED PWR
FAN3
FANA
USB 4/5
USB 9/10 (3.0)
JSD1
I-SGPIO2 I-SGPIO1
JSD2
JL1
JBT1
JSTBY1
JPS1
X11SSL-CF_(-nF)
REV:1.01
Designed in the USA
MAC CODE
SAS CODE
SP1
JPG1
JBR1
JPME2
JPB1
JI2C2
SP1
JI2C1
JF1
JPI2C1
FAN1
FAN2
BAR CODE
IPMI CODE
USB 2/3
PCH SLOT4 PCI-E 3.0 x1
PCH SLOT5 PCI-E 3.0 x4(in x8)
CPU SLOT6 PCI-E 3.0 x8(in x16)
I-SATA5
I-SATA1
I-SATA4
I-SATA3 I-SATA2
I-SATA0
JWD1
DIMMB2 DIMMB1 DIMMA2 DIMMA1
JSAS1
JNVME1
LSI 3008
CPU
BT1
MEGERAC
LICENSE
1
1. LAN1 LEDs
2. LAN2 LEDs
3. IPMI-Dedicated LAN LEDs
2
LAN LEDs
Two LAN ports (LAN 1 and LAN 2) are located on the I/O back panel of the motherboard.
Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link
LED may be green, amber, or off to indicate the speed of the connection. Refer to the tables
below for more information.
LAN1/2 Activity LED (Right)
LED State
Color Status Denition
Green Flashing Active
LAN1/2 Link LED (Left)
LED State
LED Color Denition
Off No Connection/10 Mbps
Amber 1 Gbps
Green 100 Mbps
Dedicated IPMI LAN LEDs
In addition to LAN 1 and LAN 2, an IPMI LAN is also located on the I/O back panel. The
amber LED on the right indicates activity, while the green LED on the left indicates the speed
of the connection. Refer to the table below for more information.
IPMI LAN LEDs
Color/State Denition
Link (left)
Green: Solid
Amber: Solid
100 Mbps
1Gbps
Activity (Right) Amber: Blinking Active
IPMI LAN
Activity LEDLink LED
LAN 1/LAN 2
IPMI LAN
(X8ST3-F)
