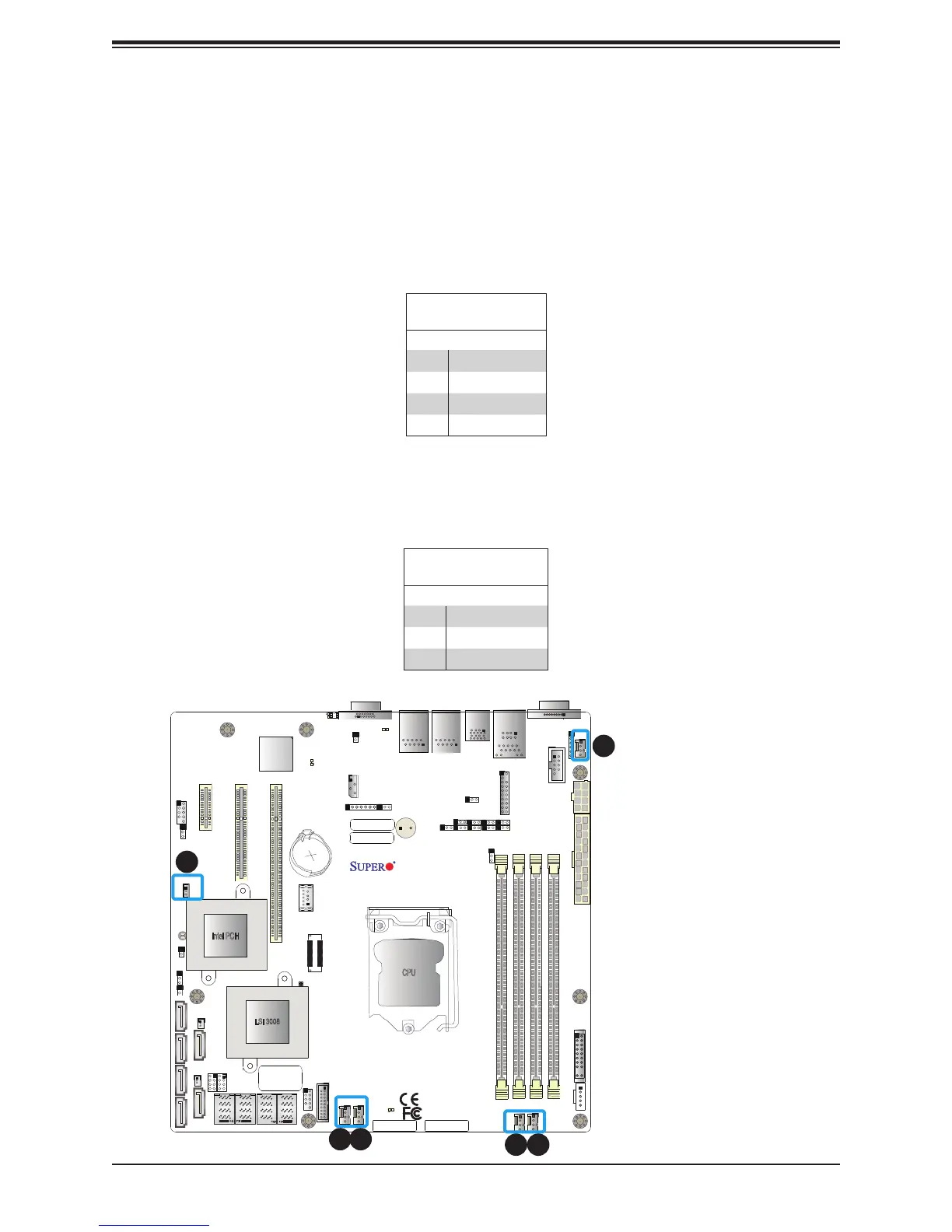

Fan Headers
The X11SSL-CF/-nF has ve fan headers (Fan1-Fan4, FanA). All these 4-pin fans headers are
backward-compatible with the traditional 3-pin fans. However, fan speed control is available
for 4-pin fans only by Thermal Management via the IPMI 2.0 interface. Refer to the table
below for pin denitions.
Headers
Fan Header
Pin Denitions
Pin# Denition
1 Ground (Black)
2 +12V (Red)
3 Tachometer
4 PWM Control
