Supermicro X12STL-IF User Manual

44
Super X12STL-IF User's Manual
C
A
PRESS FIT
A
BAR CODE
REV:1.01
X12STL-IF
DESIGNED IN USA
BIOS LICENSE
JD1
MH4
MH2
JPL1
JL1
JPME2
I-SATA5
JSD1
I-SATA4
BT1
JSMB1
JPV1
MH1
FAN1
FAN2
JPWR1
MH3
JF1
JPI2C1
FAN3
JUIDB1
JMD1_SRW1
JTPM1
LED1
JBT1
JMD1
JPCIE1
JRF1
FANA
JPG1
JCPLD1
JVRM1
JPL2
JWD1
LED3
LED2
LEDM1
CPU
DIMMB1
CPU SLOT7 PCI-E 4.0 X16
DIMMA1
OH
NIC1
VGA
X
PWR
HDD LED
PWR LED
RST
FF
I-SATA0-3
LAN1/2
JF1:
NIC2
ON
USB 6/7(3.2)
USB 2/3
COM
USB 0/1
USB 4/5(3.2)
BMC_LAN
UID
JSD2

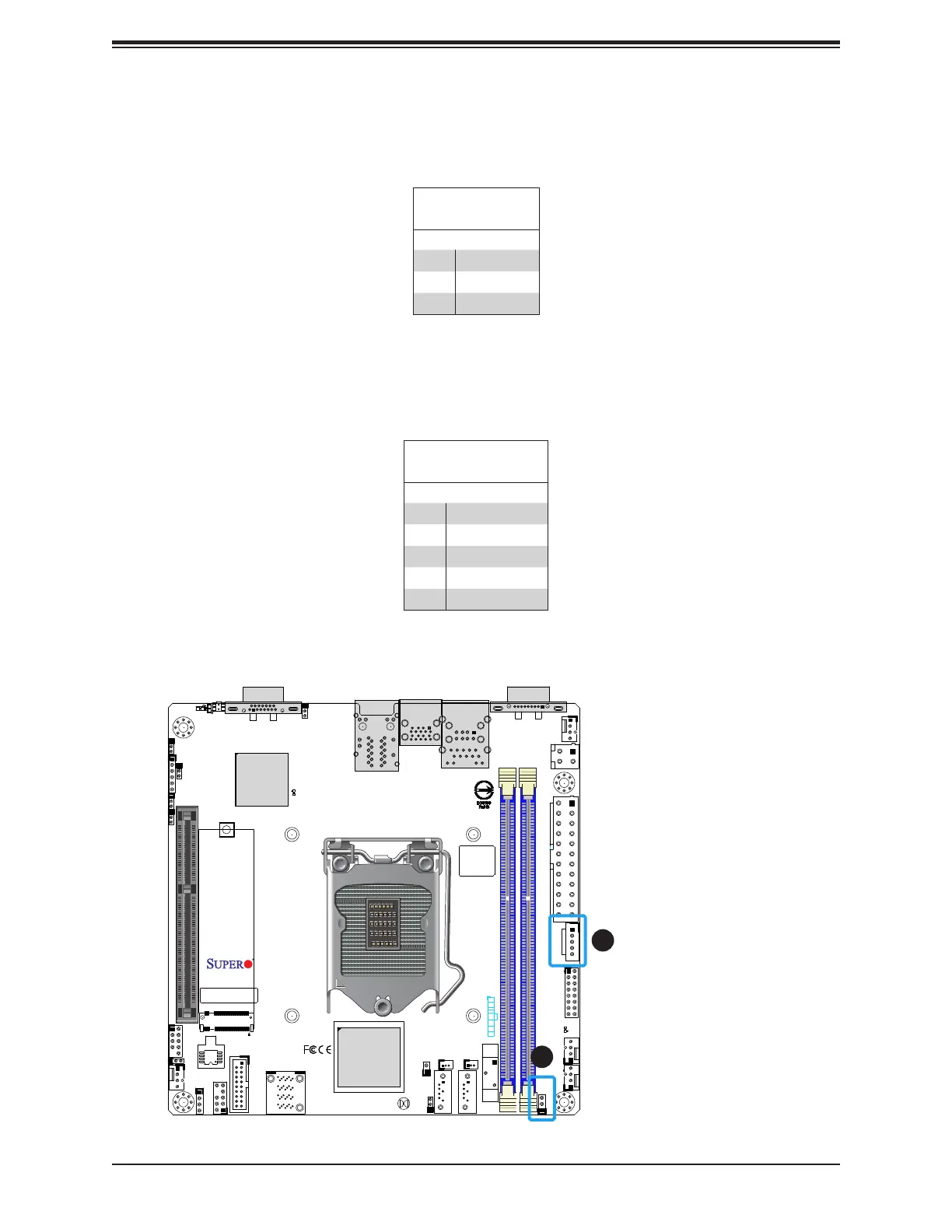

Power SMB (I²C) Header
The Power System Management Bus (I²C) connector JPI²C1) monitors the power supply, fan,
and system temperatures. Refer to the table below for pin denitions.
Power SMB Header
Pin Denitions
Pin# Denition
1 Clock
2 Data
3 PMBUS_Alert
4 Ground
5 +3.3V
1
1. SMBus Header
2. Power SMBus Header
2
SMBus Header
Pin Denitions
Pin# Denition
1 Data
2 Ground
3 Clock
System Management Bus Header
A System Management Bus header for additional slave devices or sensors is located at
JSMB1. Refer to the table below for pin denitions.
