X9DRG-O(T)F-CPU/X9DRG-O-PCIE Platform User’s Manual
Gently push
down to pop the
load plate open.

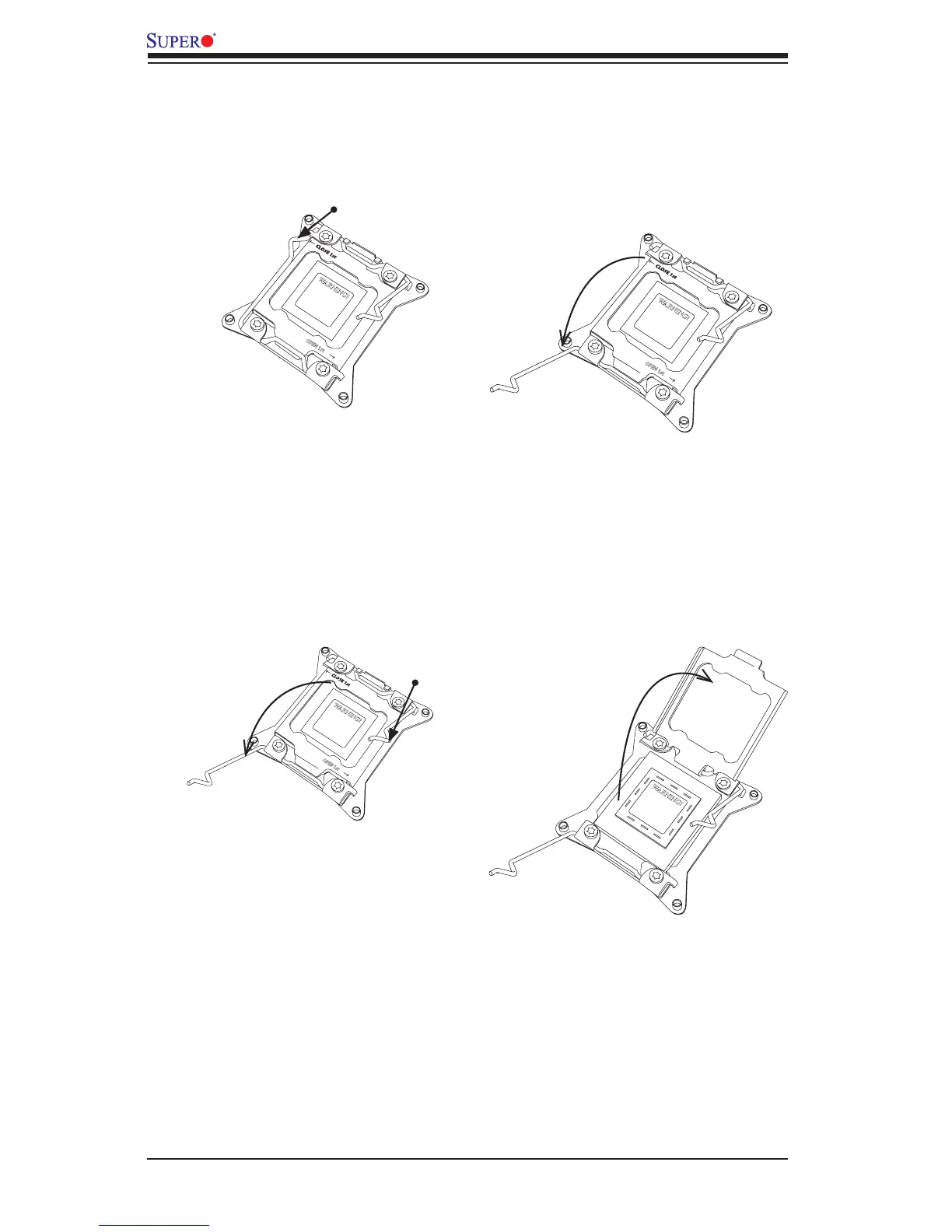

2. Press the second load lever labeled 'Close 1st' to release the load plate that
covers the CPU socket from its locking position.
3. With the lever labeled 'Close 1st' l fully retracted, gently push down on the
lever labeled 'Open 1st' to open the load plate. Lift the load plate to open it
completely.
OPEN 1st
WARNING!
OPEN 1st
WARNING!
1
2
Press down on
Load
Lever labeled 'Close 1st'
WARNING!
OPEN 1st
WARNING!
1
Pull lever away from
the socket
2
To Next Page
