Installing a Passive CPU Heatsink
1. Apply the proper amount of thermal grease to the heatsink.
2. Place the heatsink on top of the CPU so that the two mounting holes on the
heatsink are aligned with those on the retention mechanism.
3. Insert two push-pins on the sides of the heatsink through the mounting holes
on the motherboard, and turn the push-pins clockwise to lock them.

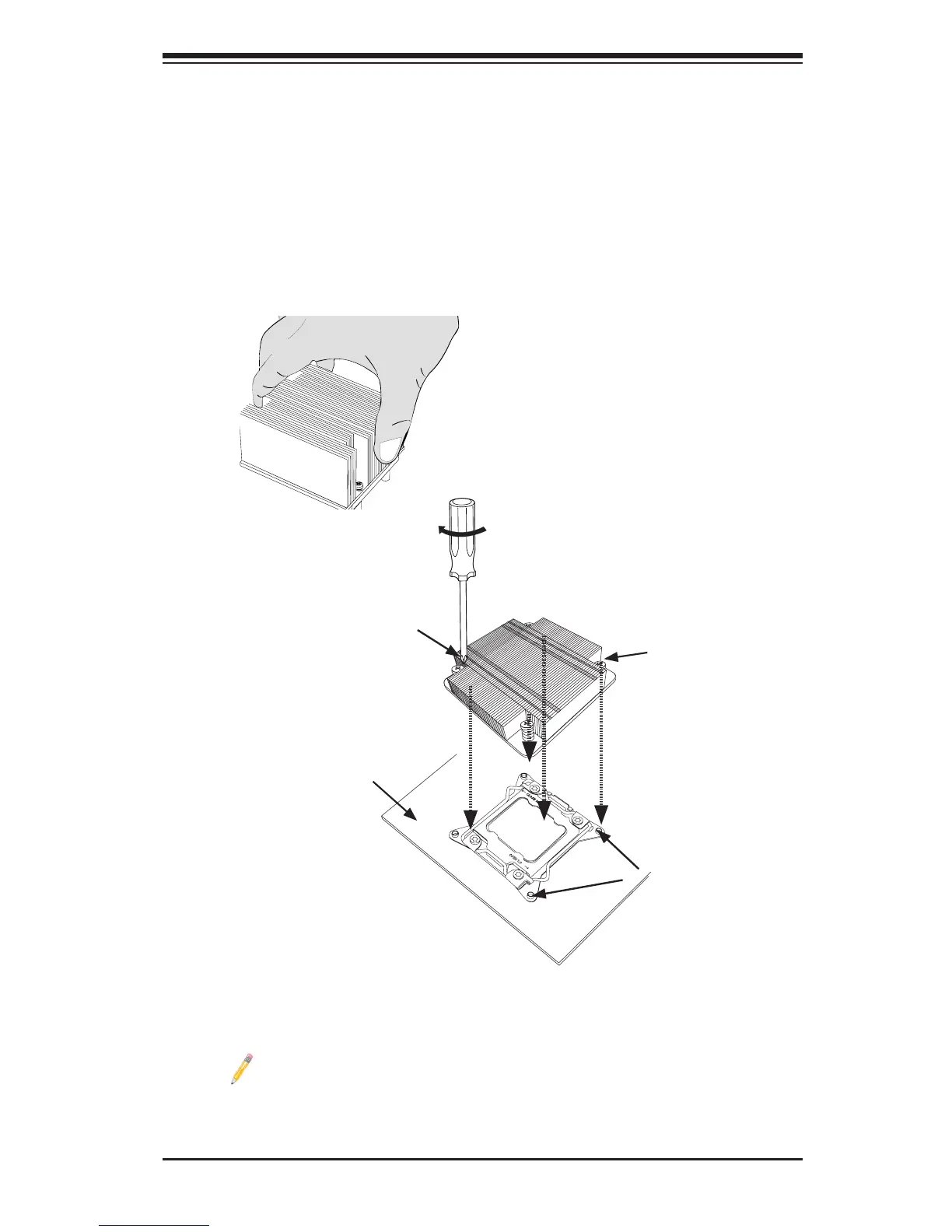

OPEN 1st
Motherboard
Screw#1
Screw#2
Mounting Holes
Notes: 1. For optimized airow, please follow your chassis airow direction
to install the correct CPU heatsink direction. 2. Graphic drawings included
in this manual are for reference only. They might look different from the
components installed in your system.
