X9DRG-O(T)F-CPU/X9DRG-O-PCIE Platform User’s Manual

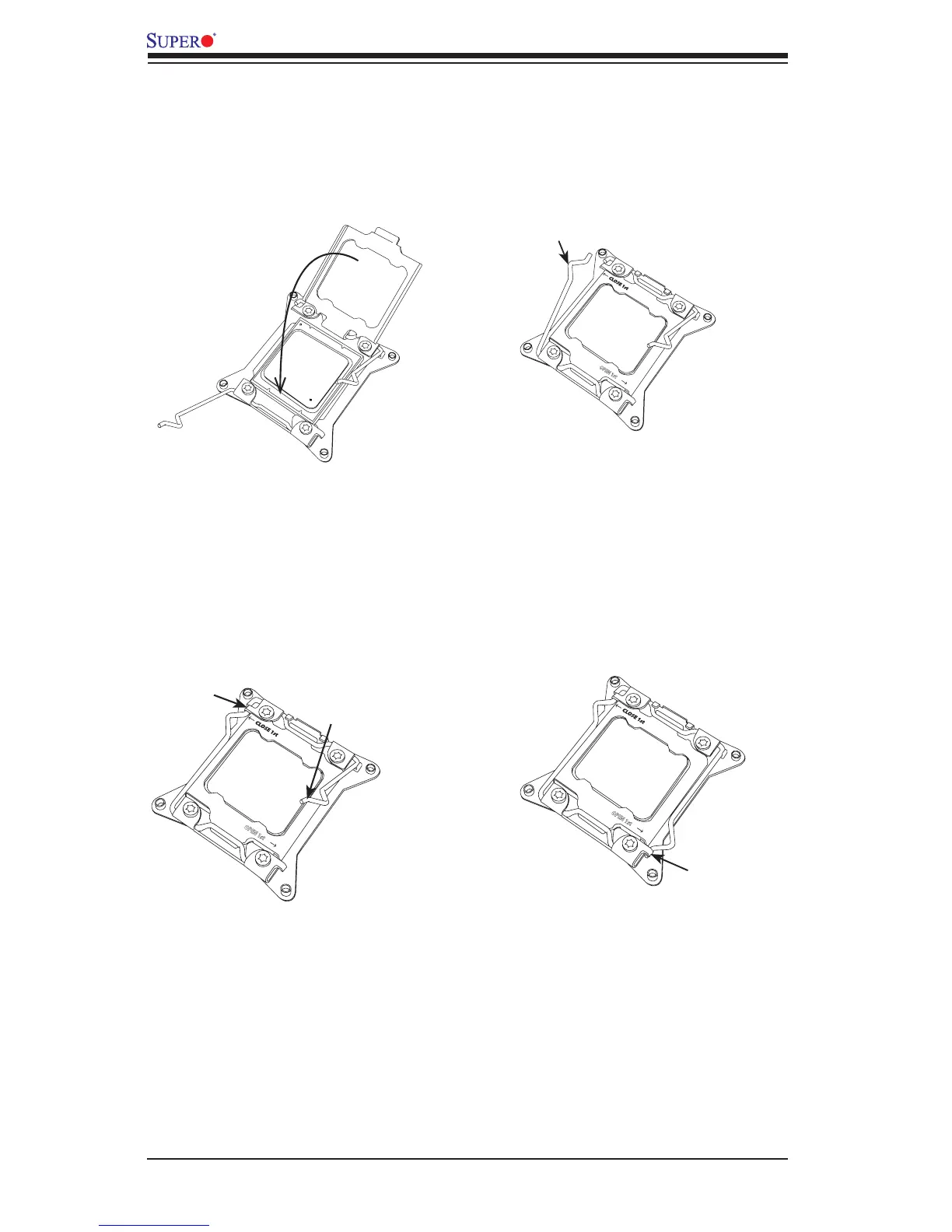

4. With the CPU inside the socket, inspect the four corners of the CPU to make
sure that the CPU is properly installed.
OPEN 1st
OPEN 1st
OPEN 1st
Lever Lock
Lever Lock
Push down and lock the
lever labeled 'Open 1st'
Push down and lock the lever
labeled 'Close 1st'.
Gently close the load plate.
1 2
3
4
5. Close the load plate with the CPU inside the socket. Lock the lever labeled
'Close 1st' rst, then lock the lever labeled 'Open 1st' second. Use your
thumb to gently push the load levers down to the lever locks.
