X8DAL-3/X8DAL-i User's Manual
X8DAL-3/i Rev. 1.01

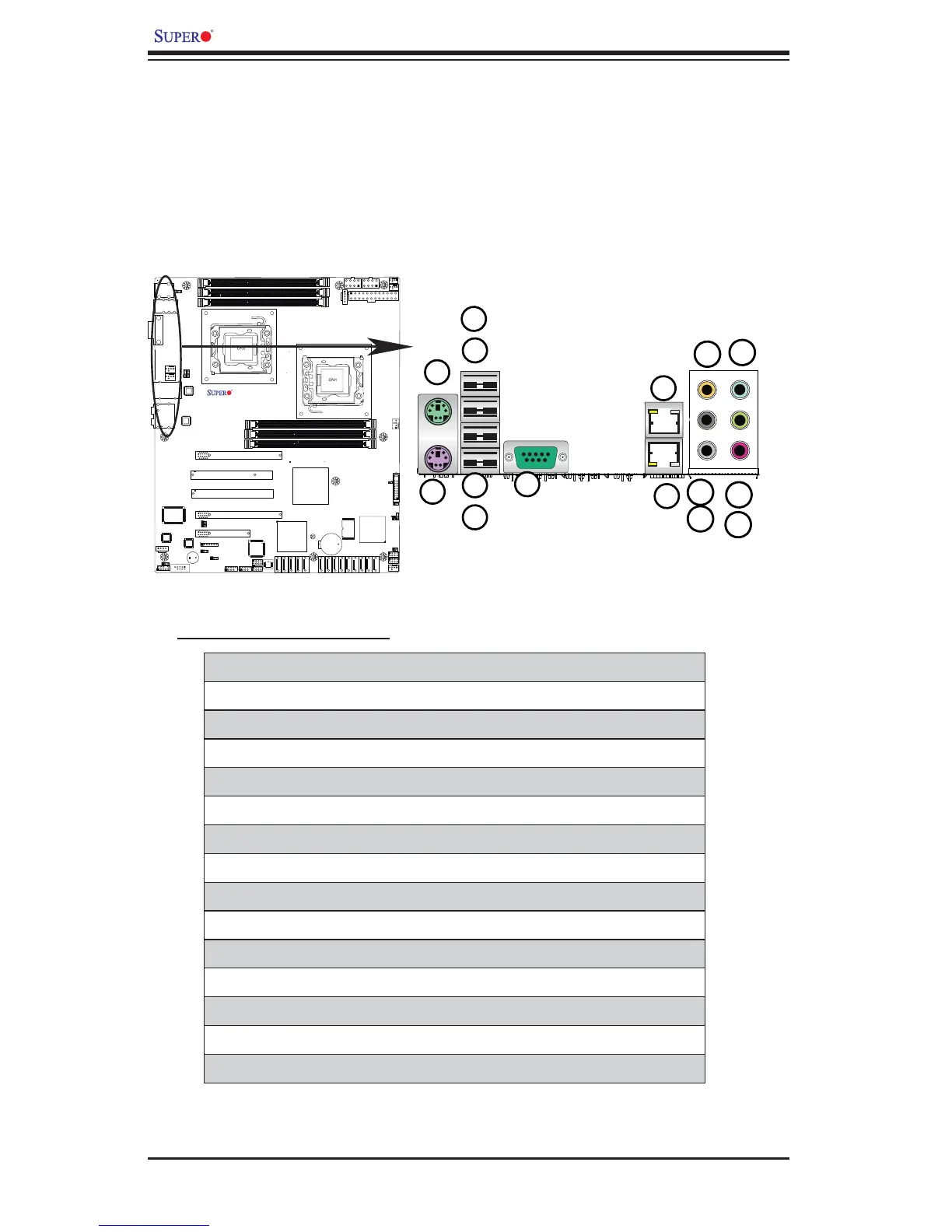

2-5 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
the picture below for the colors and locations of the various I/O ports.
1. Back Panel Connectors/IO Ports
Back Panel Connectors
Keyboard (Purple)1.
PS/2 Mouse (Green)2.
Back Panel USB Port 03.
Back Panel USB Port 14.
Back Panel USB Port 25.
Back Panel USB Port 36.
COM Port 1 (Turquoise)7.
LAN Port 18.
LAN Port 29.
Side_Surround (Grey)10.
Back_Surround (Black)11.
CEN/LFE (Orange)12.
Microphone-In (Pink)13.
Front (Green)14.
Line-In (Blue)15.
1
2
3
4
5
6
7
8
12
13
14
15
11
9
10
