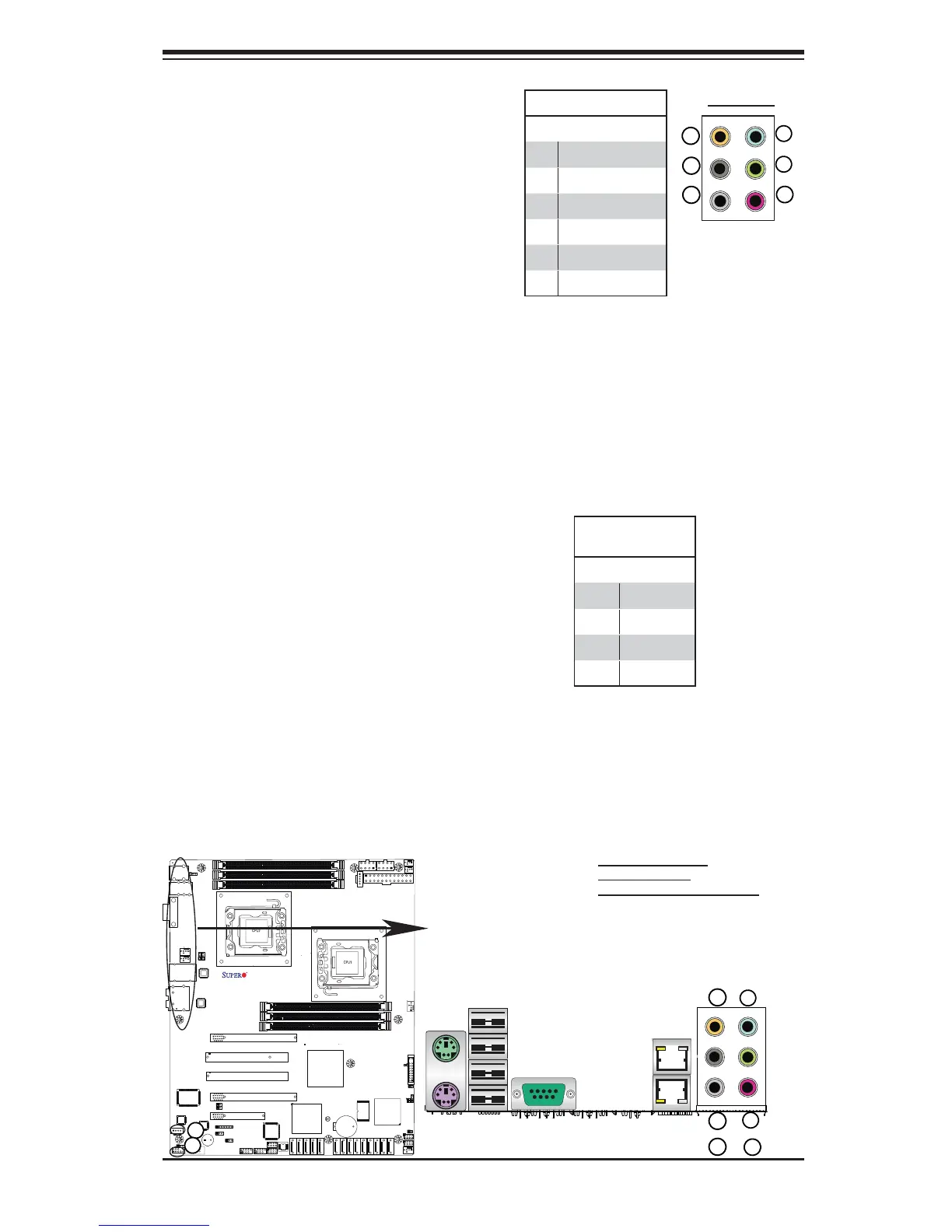

Supero X8DAL-3 User Manual

Chapter 2: Installation
2-15
1~6 (See above)
7. CD-In Header
8. Front Panel Audio Header
X8DAL-3/i Rev. 1.01
1
2
3
4
CD1 Pin Defi ni-
tion
Pin# Defi nition
1 Left
2 Ground
3 Ground
4 Right
(Back_Panel) High Defi nition Audio
(HD Audio)
This motherboard features a 7.1+2 Chan-
nel High Defi nition Audio (HDA) codec that
provides 10 DAC channels. The HD Audio
connections simultaneously supports mul-
tiple-streaming 7.1 sound playback with
2 channels of independent stereo output
through the front panel stereo out for front
L&R, rear L&R, center and subwoofer
speakers. Use the Advanced software
included in the CD-ROM with your moth-
erboard to enable this function.
CD Header
There is a 4-pin CD header (CD1) and a
Front Pane Accessible Audio header (JC1)
on the motherboard. These headers allow
you to use the onboard sound for audio
CD playback. Connect an audio cable from
your CD drive to the CD header that fi ts
your cable's connector. See the tables at
right for pin defi nitions. (For details on FP
Audio, please see the next page.)
5
6
7
8
(BP) HD Audio
Conn# Signal
1 Side_Surround
2 Back_Surround
3 CEN/LFE
4 Microphone_In
5 Front
6 Line_In
1
2
3
4
5
6
HD Audio
