X8DAL-3/X8DAL-i User's Manual
Jumpers not indicated are for test purposes only. 1.
" " indicates the location of Pin 1.2.
When LE1 is on, the onboard power connection is on. Make sure to unplug 3.
the power cables before removing or installing components.
Warning! 1. To prevent damage to the power supply or motherboard,
please use a power supply that contains a 24-pin and two 8-pin power
connectors. Be sure to connect these connectors to the 24-pin (JPW1)
and the two 8-pin (JPW2,JPW3) power connectors on the motherboard.
Failure in doing so will void the manufacturer warranty on your power
supply and motherboard.
2. To avoid possible system overheating, be sure to provide adequate
airfl ow to the system.
Notes

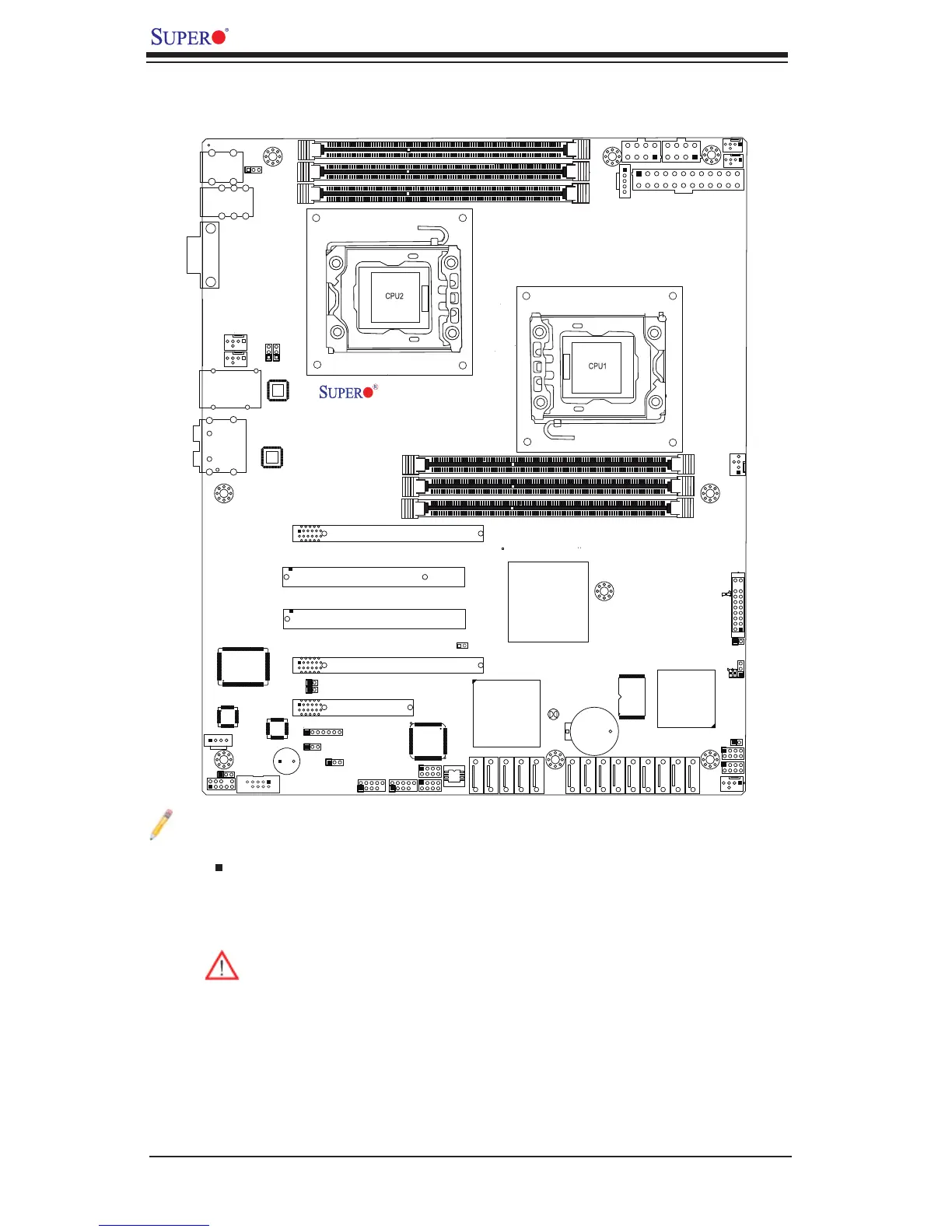

X8DAL-3/X8DAL-i Quick Reference
COM1
JC1
CD1
JPI2C
SAS7
JPS1
JPL1
JPL2
JPUSB1
JPUSB2
JF1
FAN5
FAN6
FAN1
1
T-SGPIO2
T-SGPIO1
Battery
JL1
1
JD1
1
1
JI2C2
JI2C1
USB 0/1/2/3
Slot4 PCI 33MHz
JBT1
Slot6 PCI-E 2.0x16
Slot3 PCI-E 2.0x4 (in x16 Slot)
Slot2 PCI-E x4(in x 8 Slot)
ICH10R
5500
LES2
P2-DIMM3A
P2-DIMM1A
P1-DIMM3A
P2-DIMM2A
P1-DIMM2A
P1-DIMM1A
KB/Mouse
LAN2
LAN1
Slot5 PCI 33MHz
JPAC
USB8/9
USB6/7
3-SGPIO2
3-SGPIO1
JPW3
JPW1
JPW2
FAN4
FAN3
LAN
CTRL
LAN
CTRL
Audio
BIOS
SAS6
SAS5
SAS4
SAS3
SAS2
SAS1
SAS0
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
LE1
JWD
SP1
SPKR
LSI 1068
SAS CTRL
Intel
Intel
SIO
Audio
CTRL
HW
Monitor
X8DAL-3/i Rev.1.01
FP CTRL
JOH1
FP Audio
COM2
FAN2
IOH-24D
South Bridge
JP5
LES1
