X8DT3/X8DTi/X8DT3-F/X8DTi-F/X8DT3-LN4F/X8DTi-LN4F User's Manual
X8DT3/i Series
2-5 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
the picture below for the colors and locations of the various I/O ports.

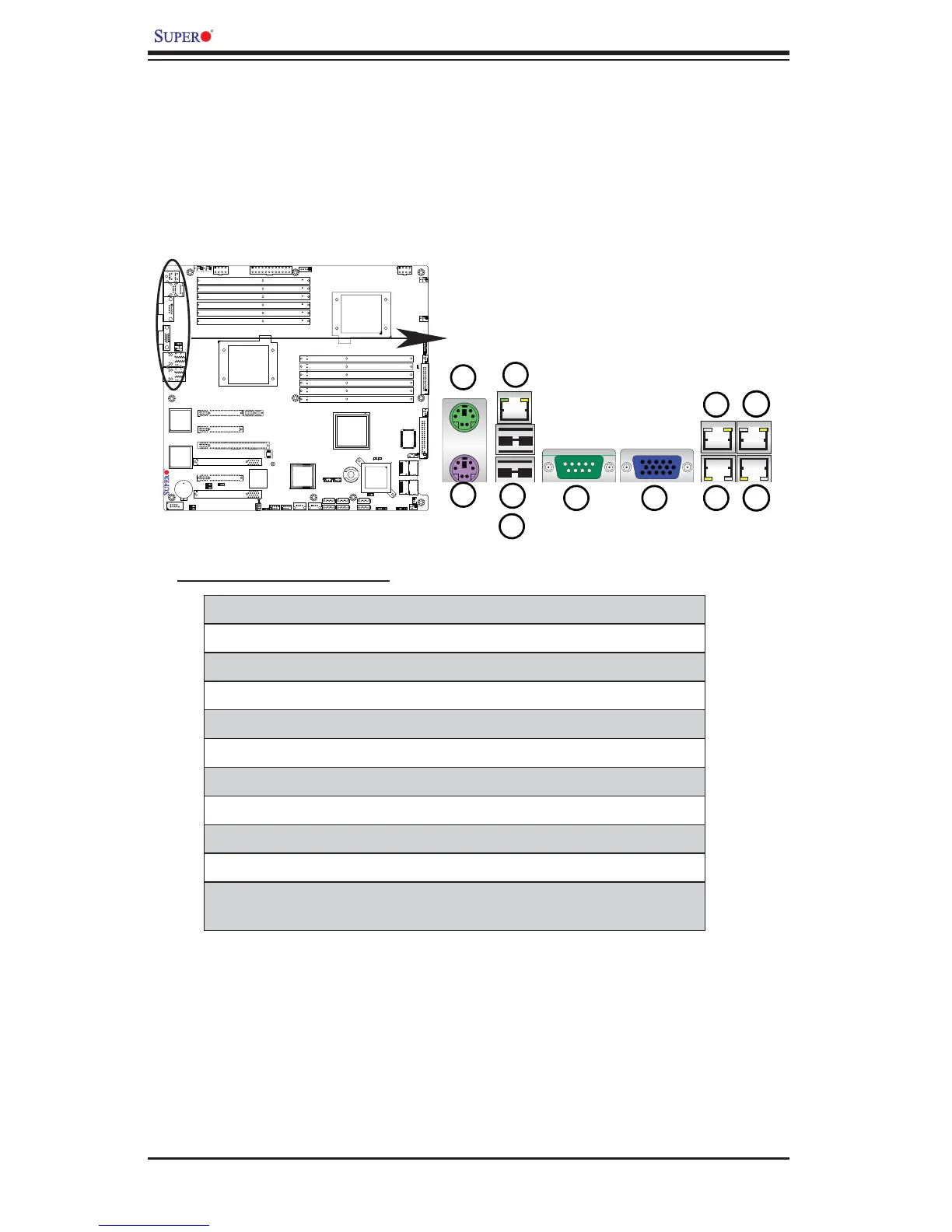

1. Back Panel Connectors/IO Ports
Back Panel I/O Port Locations and Defi nitions
Back Panel Connectors
Keyboard (Purple)1.
PS/2 Mouse (Green)2.
Back Panel USB Port 03.
Back Panel USB Port 14.
Dedicated LAN (X8DT3/i-F/ X8DT3/i-LN4F only)5.
COM Port 1 (Turquoise)6.
VGA (Blue) 7.
Gigabit LAN 18.
Gigabit LAN 3 (for X8DT3-LN4F/X8DTi-LN4F only)9.
Gigabit LAN 210.
Gigabit LAN 4 (for X8DT3-LN4F/X8DTi-LN4F only)(See 11.
Section 2-5 for details.)
10
11
