Pin Defi nitions
Pin# Defi nition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground
B
C
A. I-SATA0
B. I-SATA1
C. I-SATA2
D. I-SATA3
E. I-SATA4
F. I-SATA5
G. SAS 0~3 (X8DT3/-F/-LN4F
only)
H. SAS 4~7 (X8DT3/-F/-LN4F
only)

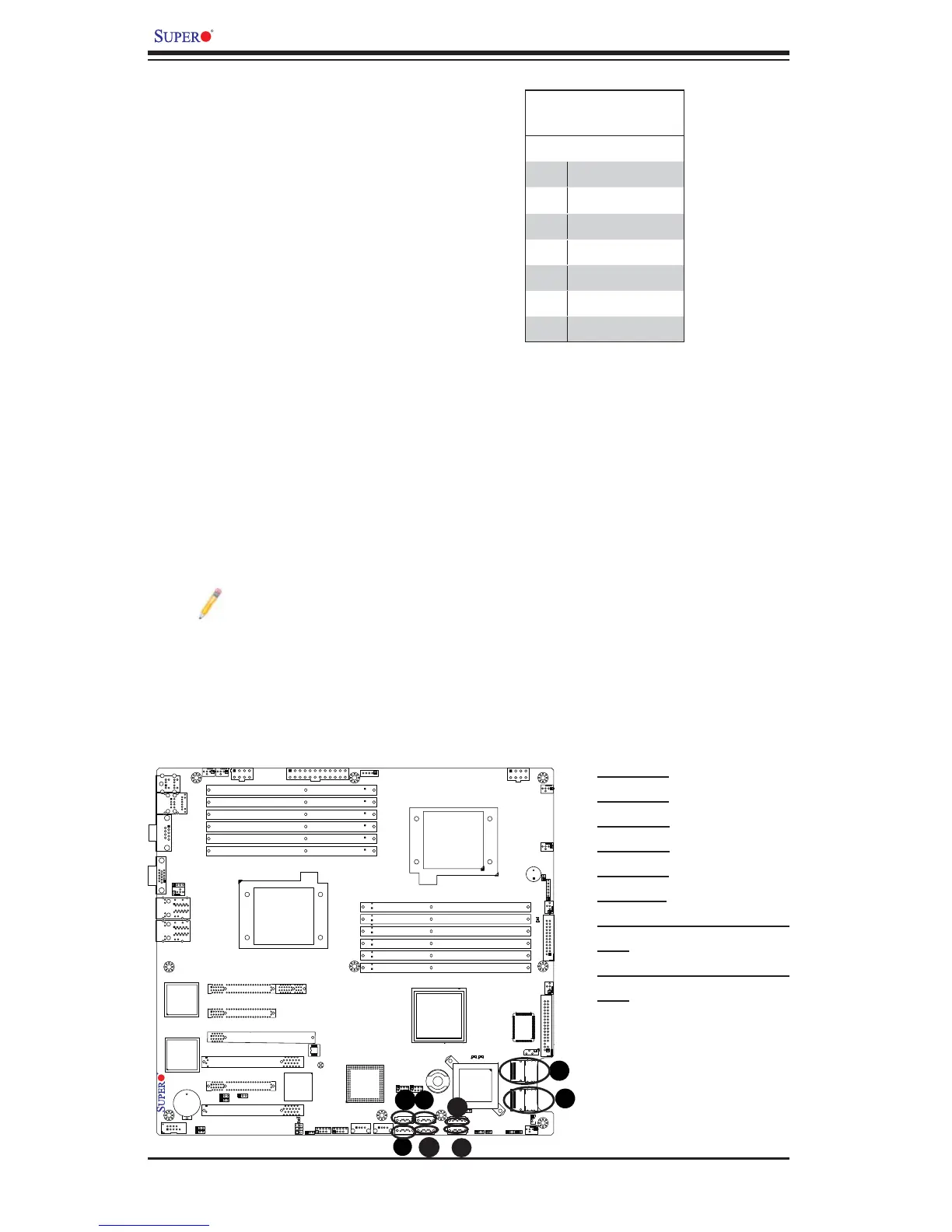

Serial ATA Ports
Six Serial ATA Ports (I-SATA0~I-SA-
TA 5) are located at JS1~JS6 on the
motherboard. These ports provide
serial-link signal connections, which
are faster than the connections of
Parallel ATA. See the table on the
right for pin defi nitions.
A
SAS Ports (X8DT3/X8DT3-F/
X8DT3-LN4F only)
SAS Ports 0~3, 4~7, located at JSM1/
JSM2, provide Serial-Attached SCSI
connections on the X8DT3/X8DT3-F/
X8DT3-LN4F. See the layout below
for SAS port locations.
Note 1: For more information on SATA HostRAID confi guration, please
refer to the Intel SATA HostRAID User's Guide posted on our website @
http://www.supermicro.com/support/manuals/.
Note 2: For more information on LSI SAS RAID confi guration, please
refer to the LSI MegaRAID User's Guide posted on our website @ http://
www.supermicro.com/support/manuals/.
