Supero X8DT3 User Manual

Chapter 2: Installation
2-21
J5
T-SGPIO2
T-SGPIO1
JLAN2
JLAN1
JF1
1
COM2
JWOL
Battery
JSM1
JSM2
JBT1
JUSB2
JUSB3
1
BMC/VGA
CTRL
J26
JPG1
JPL1
JPL2
JWD
JPS1
JPT1
JI2C2
JI2C1
D1
LE1
LES2
J6
JD1
SP1
JOH1
JL1
JPS2
JPW3
JPW1
JPW2
1
X8DT3/i Series
BIOS
LAN3
LAN1
LAN2
VGA
Slot6 PCI-E 2.0x8
PCI 33 MHz
I-BUTTON
P1-DIMM3A
P1-DIMM3B
P1-DIMM2A
P1-DIMM2B
P1-DIMM1A
P1-DIMM1B
P2-DIMM1A
P2-DIMM2B
P2-DIMM2A
P2-DIMM3B
SAS4~7
SAS0~3
Fan6
Fan5
Fan2
Fan8/
CPU2 FAN
Fan4
Fan3
Fan7/
CPU1
Fan1
Slot3
P2-DIMM3A
KB/MOUSE
COM1
LAN4
Slot2 PCI-E x4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
Slot1 PCI 33MHz
Floppy
USB6/7
USB4/5
USB3
USB2
USB 0/1
I-SATA5
P2-DIMM1B
LAN
CTRL
LAN
CTRL
Slot5 PCI-E 2.0x8 in x16
CPU2
CPU1
ICH10R
North Bridge
LSI
1068E
LES1
(X8DT3/i-LN4F)
SI/O
(*X8DT3 Models only)
SPEC
Dedicated LAN
Slot4 PCI-E 2.0 x16
(X8DT3/i-F/-LN4F only)
(*X8DT3 Models only)
J27J28
JPB
Intel 5520
South Bridge
Chassis Intrusion

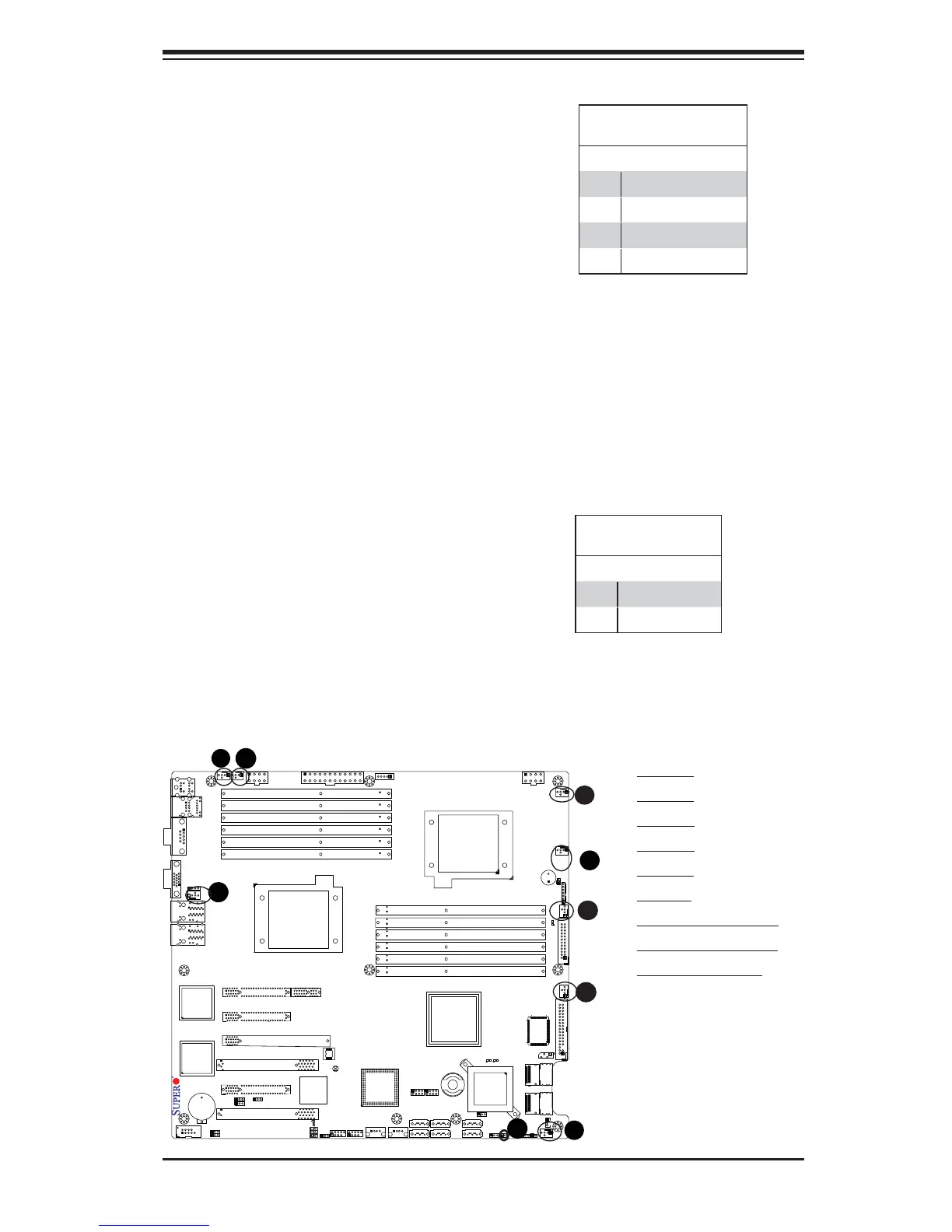

A Chassis Intrusion header is located
at JL1 on the motherboard. Attach an
appropriate cable from the chassis to
inform you of a chassis intrusion when
the chassis is opened.
Chassis Intrusion
Pin Defi nitions (JL1)
Pin# Defi nition
1 Intrusion Input
2 Ground
C
A. Fan 1
B. Fan 2
C. Fan 3
D. Fan 4
E. Fan 5
F. Fan 6
G. Fan 7 (CPU1 Fan)
H. Fan 8 (CPU2 Fan)
I. Chassis Intrusion
D
E
F
Fan Headers
This motherboard has six chassis/system
fan headers (Fan1 to Fan6) and two CPU
fans (Fan7/Fan8) on the motherboard. All
these 4-pin fans headers are backward
compatible with the traditional 3-pin fans.
However, fan speed control is available
for 4-pin fans only. The fan speeds are
controlled by Thermal Management via
Hardware Monitoring in the Advanced
Setting in the BIOS. (The Default setting
is Disabled.) See the table on the right for
pin defi nitions.
Fan Header
Pin Defi nitions
Pin# Defi nition
1 Ground
2 +12V
3 Tachometer
4 PWR Modulation
G
I
A
B
H
