Supero X8DT3 User Manual

Chapter 2: Installation
2-23
J5
T-SGPIO2
T-SGPIO1
JLAN2
JLAN1
JF1
1
COM2
JWOL
Battery
JSM1
JSM2
JBT1
JUSB2
JUSB3
1
BMC/VGA
CTRL
J26
JPG1
JPL1
JPL2
JWD
JPS1
JPT1
JI2C2
JI2C1
D1
LE1
LES2
J6
JD1
SP1
JOH1
JL1
JPS2
JPW3
JPW1
JPW2
1
X8DT3/i Series
BIOS
LAN3
LAN1
LAN2
VGA
Slot6 PCI-E 2.0x8
PCI 33 MHz
I-BUTTON
P1-DIMM3A
P1-DIMM3B
P1-DIMM2A
P1-DIMM2B
P1-DIMM1A
P1-DIMM1B
P2-DIMM1A
P2-DIMM2B
P2-DIMM2A
P2-DIMM3B
SAS4~7
SAS0~3
Fan6
Fan5
Fan2
Fan8/
CPU2 FAN
Fan4
Fan3
Fan7/
CPU1
Fan1
Slot3
P2-DIMM3A
KB/MOUSE
COM1
LAN4
Slot2 PCI-E x4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
Slot1 PCI 33MHz
Floppy
USB6/7
USB4/5
USB3
USB2
USB 0/1
I-SATA5
P2-DIMM1B
LAN
CTRL
LAN
CTRL
Slot5 PCI-E 2.0x8 in x16
CPU2
CPU1
ICH10R
North Bridge
LSI
1068E
LES1
(X8DT3/i-LN4F)
SI/O
(*X8DT3 Models only)
SPEC
Dedicated LAN
Slot4 PCI-E 2.0 x16
(X8DT3/i-F/-LN4F only)
(*X8DT3 Models only)
J27J28
JPB
Intel 5520
South Bridge

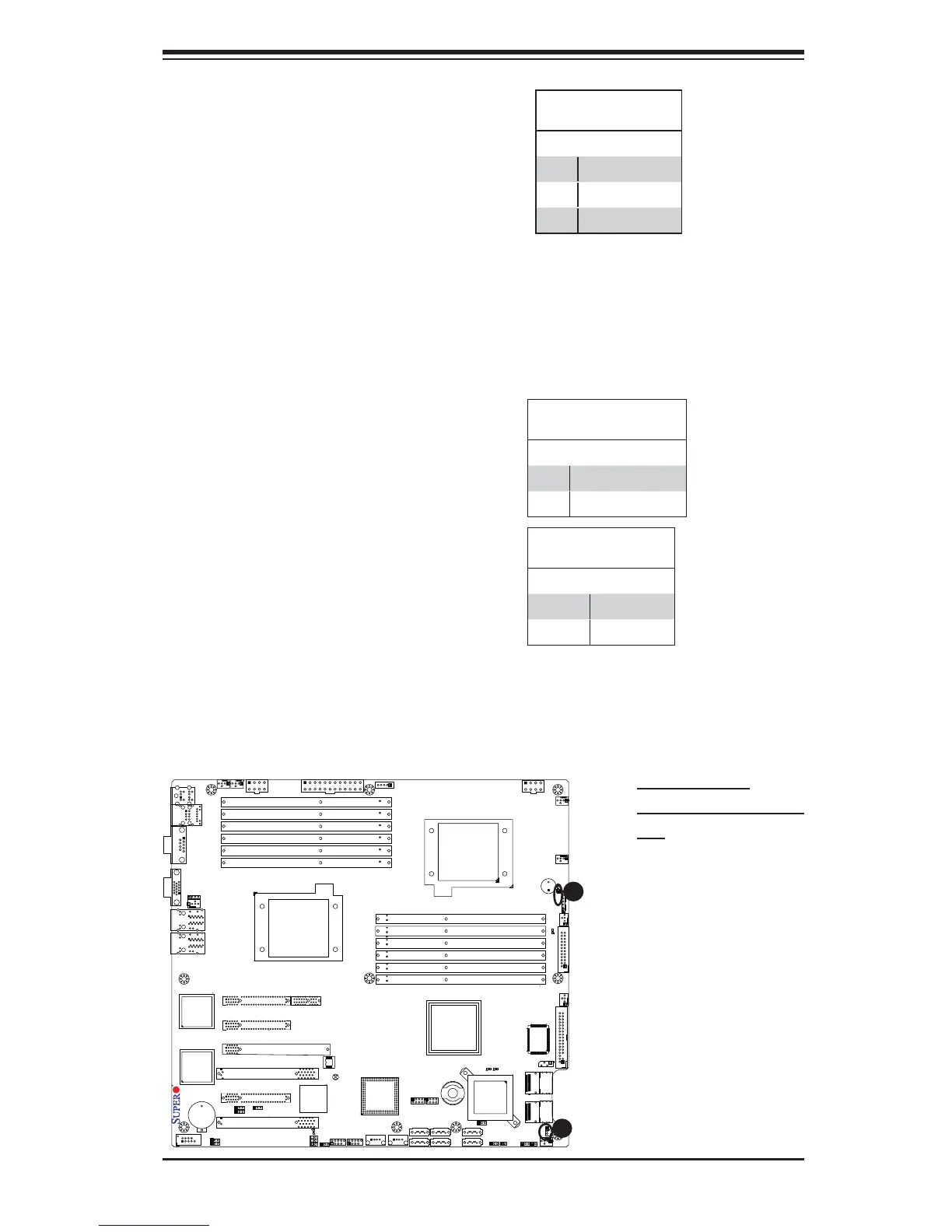

Wake-On-LAN
The Wake-On-LAN header is located
at JWOL on the motherboard. You
must also have a LAN card with a
Wake-On-LAN connector and a cable
to use this feature. See the table on
the right for pin defi nitions.
Wake-On-LAN
Pin Defi nitions
Pin# Defi nition
1 +5V Standby
2 Ground
3 Wake-up
A
B
A. Wake-On-LAN
B. Overheat/Fan Fail
LED
Overheat LED/Fan Fail (JOH1)
The JOH1 header is used to connect
an LED indicator to provide warnings
of chassis overheating or fan failure.
This LED will blink when a fan failure
occurs. Refer to the table on right for
pin defi nitions.
Overheat LED
Pin Defi nitions
Pin# Defi nition
1 5vDC
2 OH Active
OH/Fan Fail LED
Pin Defi nitions
State Message
Solid Overheat
Blinking Fan Fail
