2-14
X8DT3/X8DTi/X8DT3-F/X8DTi-F/X8DT3-LN4F/X8DTi-LN4F User's Manual
X8DT3/i Series

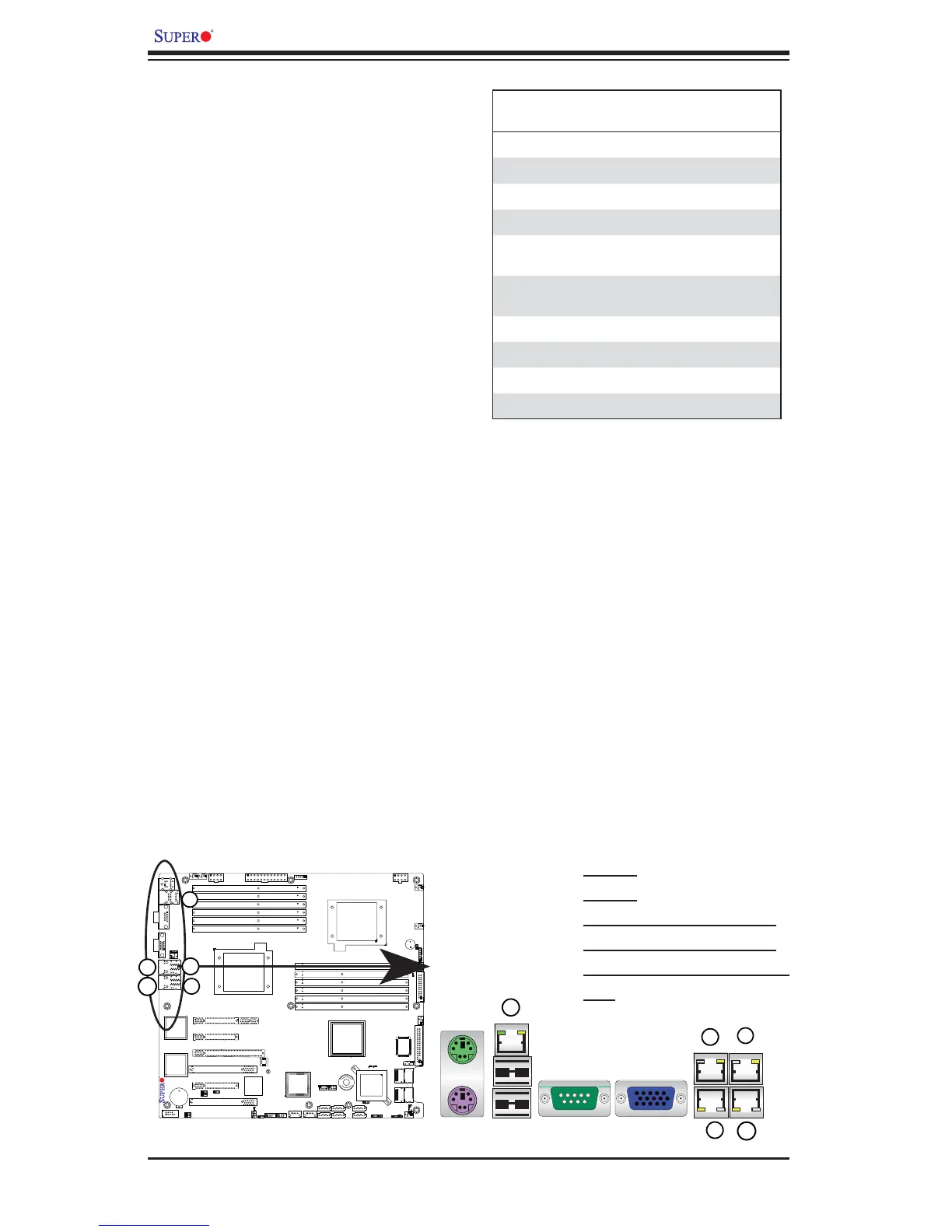

1. LAN1
2. LAN2
3. LAN3 (X8DT3/i-LN4F only)
4. LAN4 (X8DT3/i-LN4F only)
5. LAN5 (X8DT3/i-F/-LN4F
only)
Ethernet Ports
Two Ethernet ports (LAN 1/LAN2) are
located at on the IO backplane. In
addition, LAN 3/LAN4 are supported
on the X8DT3/i-LN4F. A dedicated
LAN is also located on the X8DT3/i-F/
X8DT3/i-LN4F to provide KVM sup-
port for IPMI 2.0. All these ports ac-
cept RJ45 type cables. (Note: Please
refer to the LED Indicator Section for
LAN LED information.)
LAN Ports
Pin Defi nition
Pin# Defi nition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Yellow, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 88 Ground
(NC: No Connection)
