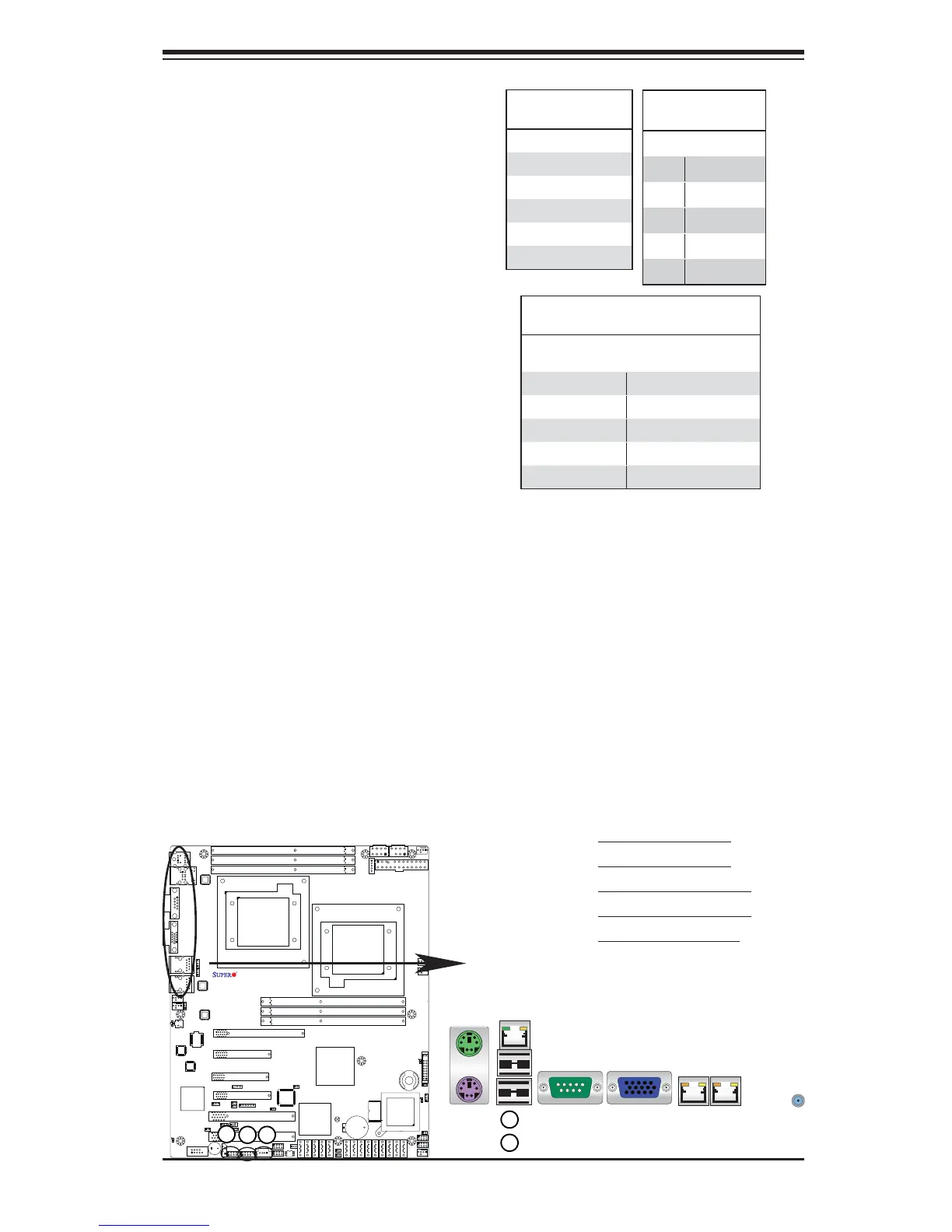

Supero X8DTL-3 User Manual

Chapter 2: Installation
2-13
1. Backpanel USB 0
2. Backpanel USB 1
3. Front Panel USB 2/3
4. Front Panel USB 4/5
5. Front Panel USB 6
Universal Serial Bus (USB)
Two Universal Serial Bus ports (USB
0 and USB 1) are located on the I/O
back panel. Additionally, fi ve USB con-
nections (USB 2/3, 4/5, 6) are on the
motherboard to provide front chassis
access. (Cables are not included).
See the tables on the right for pin
defi nitions.
Back Panel USB
(USB 0/1)
Pin# Defi nitions
1 +5V
2 PO-
3 PO+
4 Ground
5 N/A
Front Panel USB
Pin Defi nitions (USB2/3/4/5)
USB 2/3
Pin # Defi nition
USB 4/5
Pin # Defi nition
1 +5V 1 +5V
2 PO- 2 PO-
3 PO+ 3 PO+
4 Ground 4 Ground
5 Key 5 No connection
Front Panel USB
(USB 6)
Pin# Defi nition
1 Vcc
2 Data-
3 Data+
4 Ground
5NA
X8DTL Series
Rev. 2.01
1
2
3
4
5
