Chapter 2: Installation
2-15
1. LAN1
2. LAN2
3. LAN5 (X8DTL-3F/iF only)

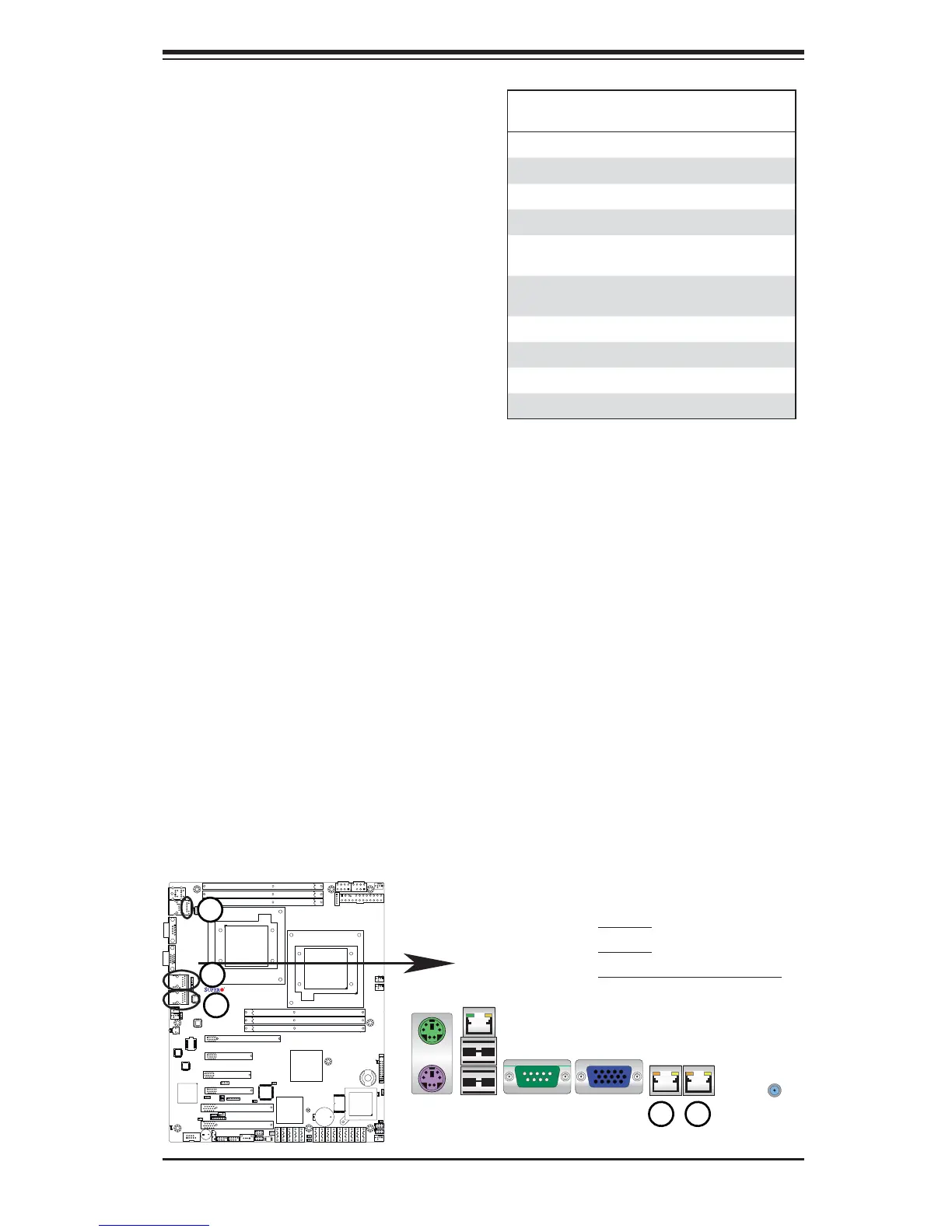

Ethernet Ports
Two Ethernet ports (LAN 1/LAN2) are
located at on the IO backplane. In
addition, a dedicated LAN is also lo-
cated on the X8DTL-3F/-iF to provide
KVM support for IPMI 2.0. All these
ports accept RJ45 type cables. (Note:
Please refer to the LED Indicator Sec-
tion for LAN LED information.)
LAN Ports
Pin Defi nition
Pin# Defi nition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Yellow, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 88 Ground
(NC: No Connection)
