2-14
X8DTL-3/X8DTL-i/X8DTL-3F/X8DTL-iF User's Manual

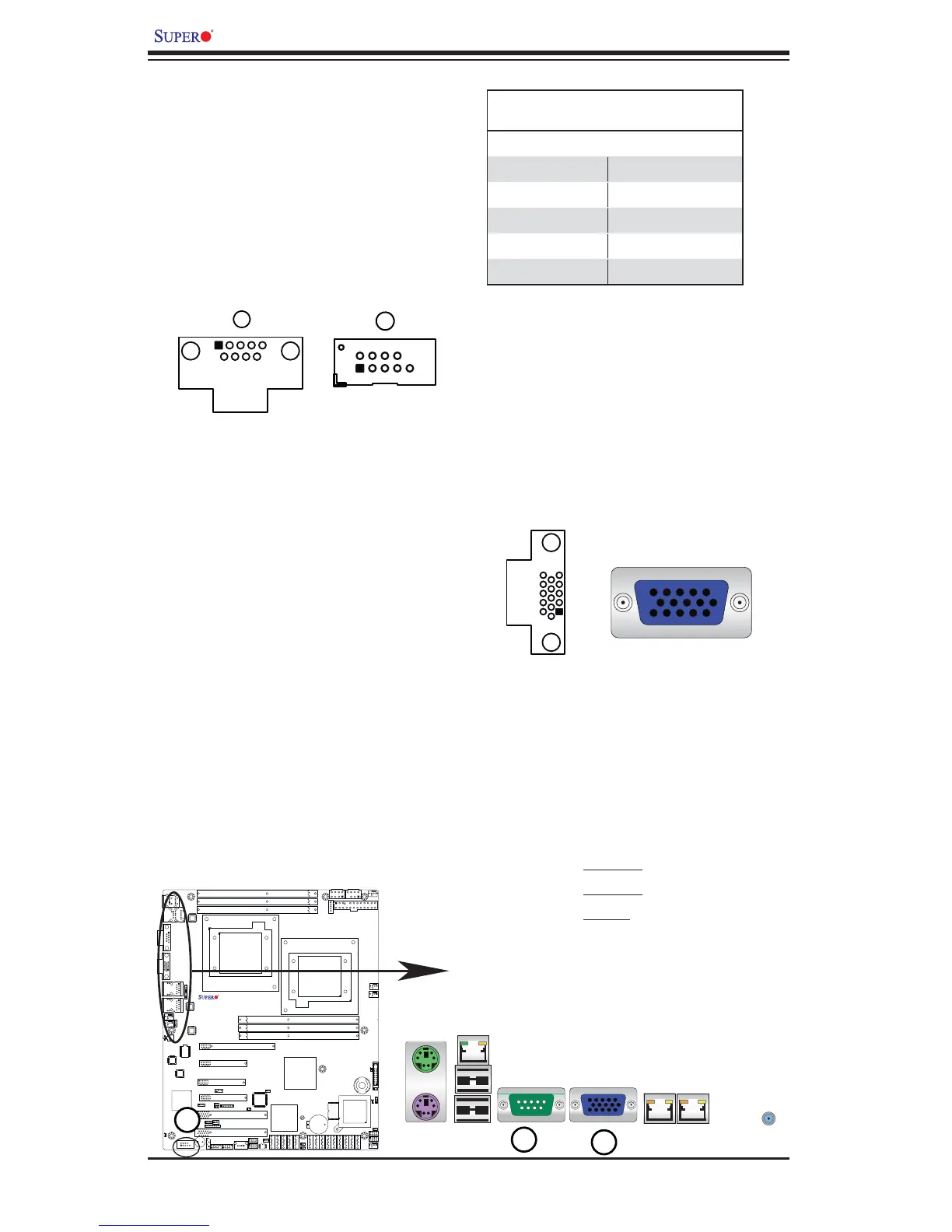

Serial Ports
Two COM connections (COM1 &
COM2) are located on the motherboard.
COM1 is located on the Backplane IO
panel. COM2 is located next to the
onboard buzzer to provide additional
serial connection support. See the table
on the right for pin defi nitions.
Serial Ports-COM1/COM2
Pin Defi nitions
Pin # Defi nition Pin # Defi nition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 N/A
1. COM1
2. COM2
3. VGA
COM1
COM2
X8DTL Series
Rev. 2.01
Video Connector
A Video (VGA) connector is located
next to COM Port1 on the IO back-
plane. This connector is used to pro-
vide video display. Refer to the board
layout below for the location.
