Chapter 2: Installation
2-11

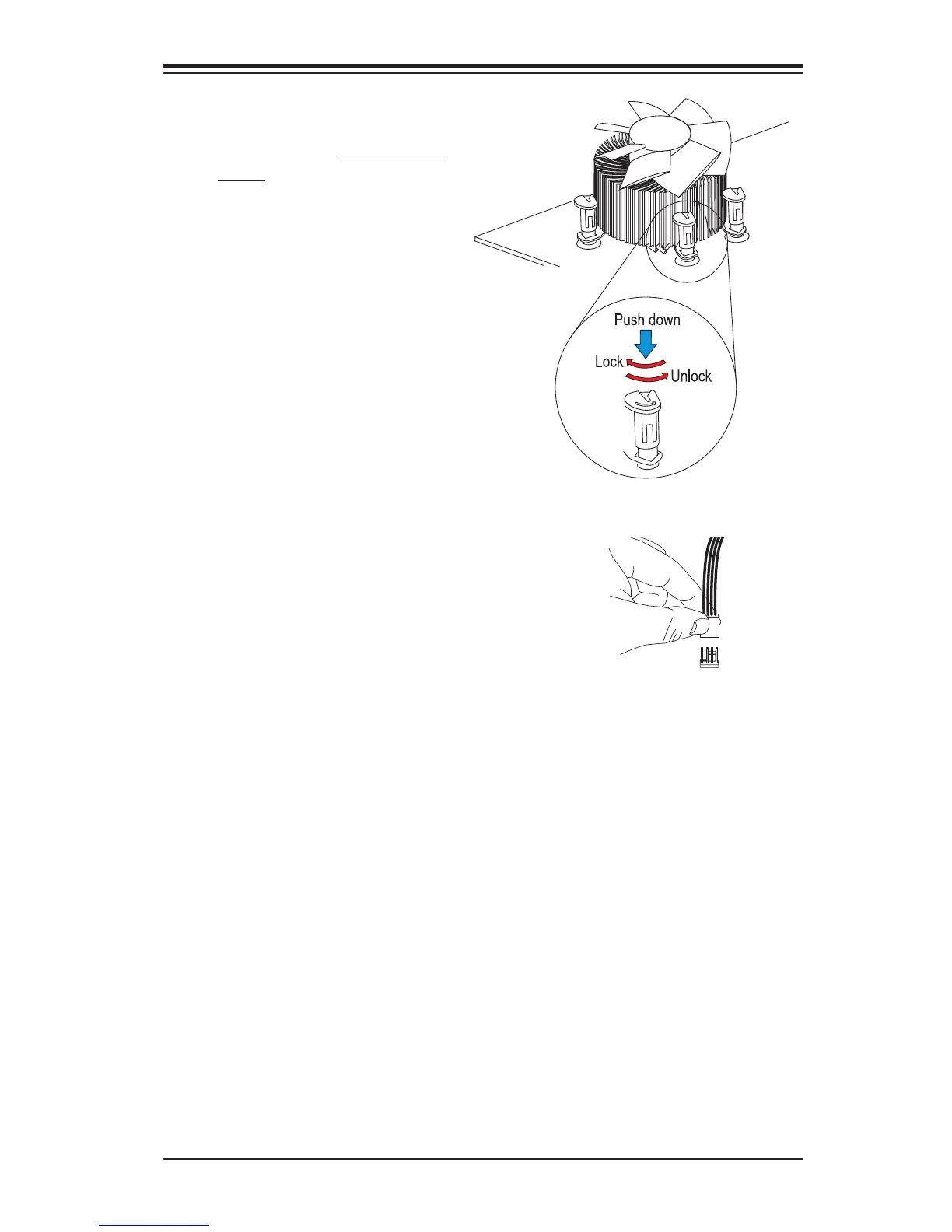

of diagonal fasteners (#1 &
#2, and #3 & #4) into the
mounting holes until you hear
a click. Also, make sure to
orient each fastener so that
the narrow end of the groove
is pointing outward.
8. Repeat Step 7 to insert all
four heatsink fasteners into
the mounting holes.
9. Once all four fasteners are
securely inserted into the
mounting holes, and the heat-
sink is properly installed on
the motherboard, connect the
heatsink fan wires to a Fan
connector.
