Removing the Heatsink
Warning: We do not recommend that
the CPU or the heatsink be removed.
However, if you do need to remove the
heatsink, please follow the instructions
below to remove the heatsink and to
prevent damage done to the CPU or
other components.

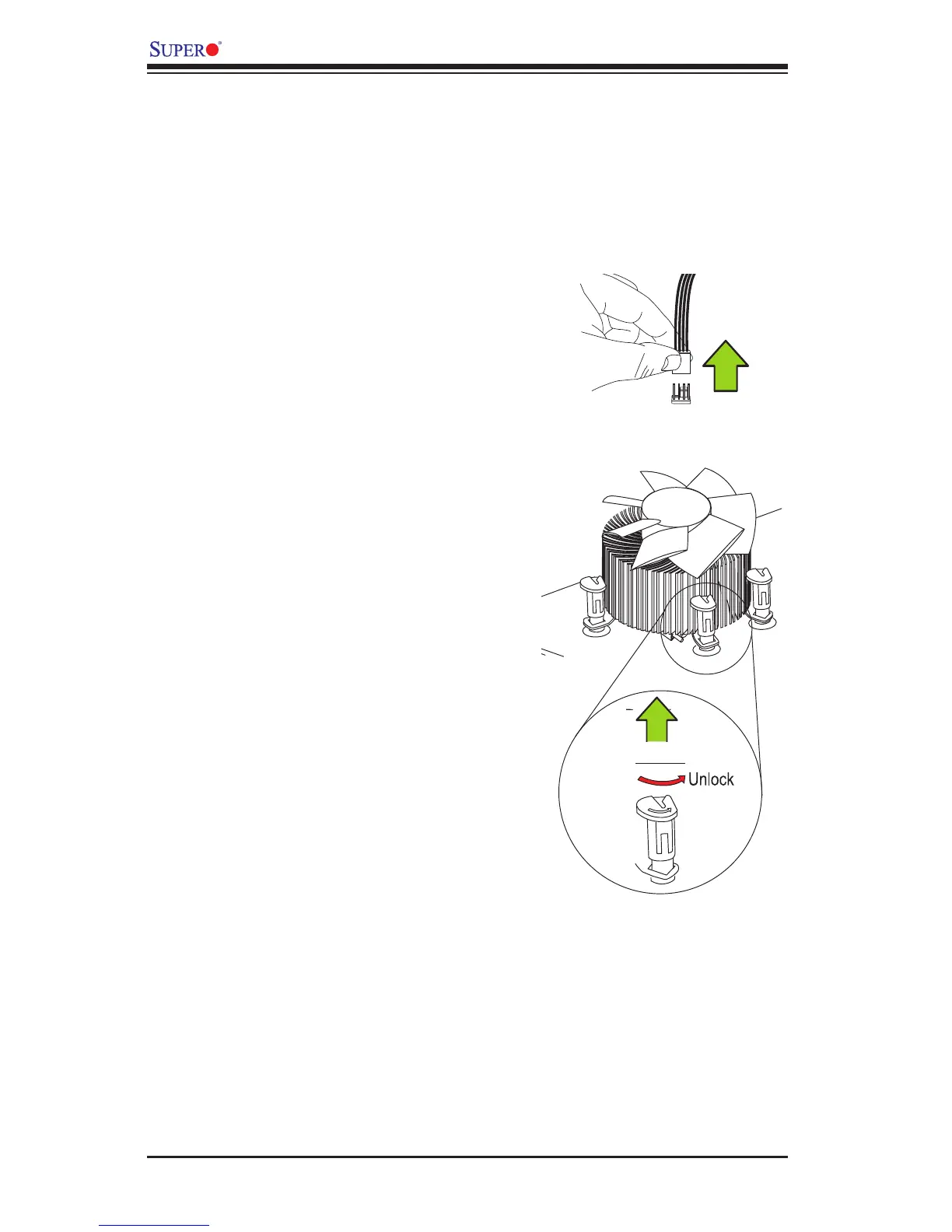

Active Heatsink Removal
1. Unplug the power cord from the
power supply.
2. Disconnect the heatsink fan wires
from the fan header.
3. Use your nger tips to gently press
on the fastener cap and turn it
counterclockwise to make a 1/4 (90
0
)
turn, and pull the fastener upward to
loosen it.
4. Repeat Step 3 to loosen all fasteners
from the mounting holes.
5. With all fasteners loosened, remove
the heatsink from the CPU.
Pull Up
