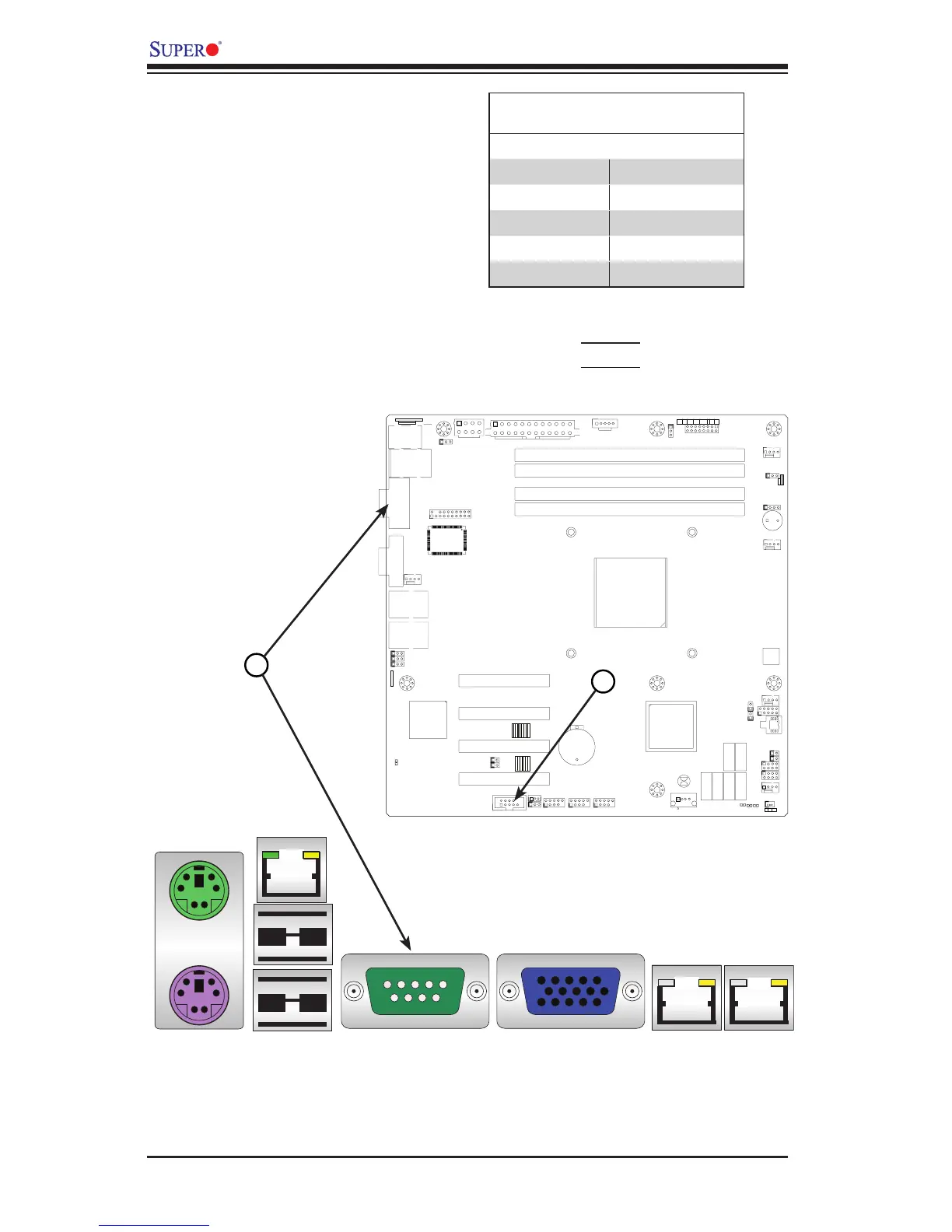

Serial Ports
A COM Port (COM1) is located on
the I/O backpanel, and another Serial
Connection (COM2) is located below
PCI-E Slot4 to provide front access.
See the table on the right for pin
denitions.
Serial Port Pin Denitions
(COM1/COM2)
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 NC
1. COM1
2. COM2
1
2
1
1
JI2C2
JI2C1
SLOT4 PCI-E 2.0 X4 ON X8
U3
U4
JS2
JS1
J31
JTPM
JPME2
JPME1
J29
JL1
T-SGPIO2
T-SGPIO1
JWF1
JPW2
JWOL
J12
JSPK
JPI2C
JF1
JPW1
B1
JS6
JS3JS4
JS5
J24
JLAN2
JLAN1
COM1
SPKR1
LE3
LE4
LE2
JWD
JLED
JPL2
JPG1
JPBJPL1
JPUSB1
FANA
FAN1
FAN4
FAN3
FAN2
U82
DIMM2
DIMM3
DIMM1
DIMM4
LE7
FF
DDR3 1066/1333 UDIMM required
GND
GND
5V
1-2:RST 2-3:NMI
JWD
USB4/5
USB 12/13
_LAN
IPMI
1-2:ENABLE
2-3:DISABLE
JPL2:LAN2 JPL1:LAN1
2-3:DISABLE
1-2:ENABLE
JPB:BMC
JSPK:Buzzer/Speaker
COM2
VGA
COM1
USB11
JBT1:CMOS CLEAR
SLOT7 PCI-E 2.0 X8
LAN2
LAN1
JPUSB1:B/P USB WAKE UP
1-2:ENABLE
2-3:DISABLE
DIMM2B
DIMM2A
JI2C1/JI2C2
USB2/3
SLOT6 PCI-E 2.0 X8
2-3:Disable 1-2:Enable
CPU
JLED1:3 pin Power LED
OFF:Disable ON:Enable
2-3:DISABLE
1-2:ENABLE
JF1
ON
LED
LED
PWR
HDD
NIC1
NIC2
OH/
X
RST PWR
USB/0/1
I-SATA3
I-SATA4
I-SATA2
I-SATA1
I-SATA0
I-SATA5
SLOT5 PCI-E 2.0 X4 ON X8
KB/MOUSE
DIMM1B
DIMM1A
JPG1: VGA
JWF1:DOM PWR
JL1:CHASSIS INTRUSION
JBT1

Supero X9SCM-IIF Specifications

General

Brand	Supero
Model	X9SCM-IIF
Category	Motherboard
Language	English
