Supero X9SRA User Manual

Chapter 2: Installation
2-21
T-SGPIO1
3-SGPIO1
7 1
3-SGPIO2
T-SGPIO2
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1 I-SATA0
JPTM1
SAS0 SAS1
SAS2 SAS3
SAS4 SAS5
17
JUSB1617
9
21
JFPAUDIO
JSTBY
1
3
B81 B82 A81 A82
PCIE4
JPCI3
JWF1
1
3
JCOM2
1
5
6
JCOM1
JUSB89
JUSB1011
1
7
JUSB1213
1
CPU1
JUSB45
JUSB23 JKBMS_USB01
JAUDIO1
JLAN2_USB67
BT1
+
PCIE1
PCIE2
DIMM2A
DIMM3A
DIMM4A
DIMM1B
DIMM2B
DIMM3B
DIMM4B
DIMM1A
JF1
JD1
JTAG1
6
1
REV:1.01
Tested to Comply
With FCC Standards FOR HOME OR OFFICE USE
DESIGNED IN USA
MAC
SAS CODE
BAR CODE
JPW2
PCIE6
1
JPI2C1
JBT1
JPW1
1
JSPDIF_OUT
1
JSPDIF_IN
JI2C2
1
JI2C1
1
1
JL1
1
JCF1
1
JOH1
DP2
31
JPME1
JPAC1
JWD1
JVR2
JPL2
JPUSB1
JPME_DBG
4
FANA
FAN3
FAN1
FAN2
FAN4
MH3
MH7
MH4
MH8
MH1
MH9
MH6
MH5
H*
Pin1:RAID_KEY_PCH
JRK1
Pin2:Ground
Pin3:PCH_DYN_SKU
:TPM/PRO80
OFF:By BIOS JFPAUDIO_EN1
ON:Force Enable
USB3.0 2/3
2-3:Normal
1-2:BIOS recovery
JPBIOS1
JPME_DBG
1-2:ME Debug
2-3:Normal
JPME1
1-2:ME recovery
2-3:Normal
SLOT6 PCI-E 3.0 X16
SLOT4 PCI-E 3.0 X16
SLOT2 PCI-E 3.0 X4(IN X8) SLOT1 PCI-E 2.0 X4(IN X8)
1-2:ENABLE
2-3:DISABLE
JPT1
USB12/13
USB10/11
COM1
1-2:ENABLE
JPAC1:AUDIO
2-3:DISABLE
AUDIO FP
HD AUDIO
USB6/7
USB3.0 0/1
USB2/3
USB0/1
X9SRA-6
1-2 ENable
Power
Flash
KB/MOUSE
JPUSB1:USB Wake Up
2-3 Disable
PWRI2C
JF1
RST
ON
PWR
PWR
FF
FAIL
HDD NIC
1 2
NIC
OH
LED
NMI
PWR
X
PWR LED
SPEAKER
1-3:
4-7:
JD1:
2-3:NMI
JWD1:Watch Dog
1-2:RST
LAN1 LAN2
USB4/5
INTRUSION
CHASSIS
OFF: SLAVE
ON: MASTER
JCF1:Compact Flash
Compact
USB8/9
Wake on Lan
COM2
OFF:DISABLE ON: ENABLE
I2C bus for PCI slot
JI2C1/JI2C2
SLOT5 PCI-E 2.0 X1
SLOT3 PCI 33MHZ
CLOSE 1st
OPEN 1st

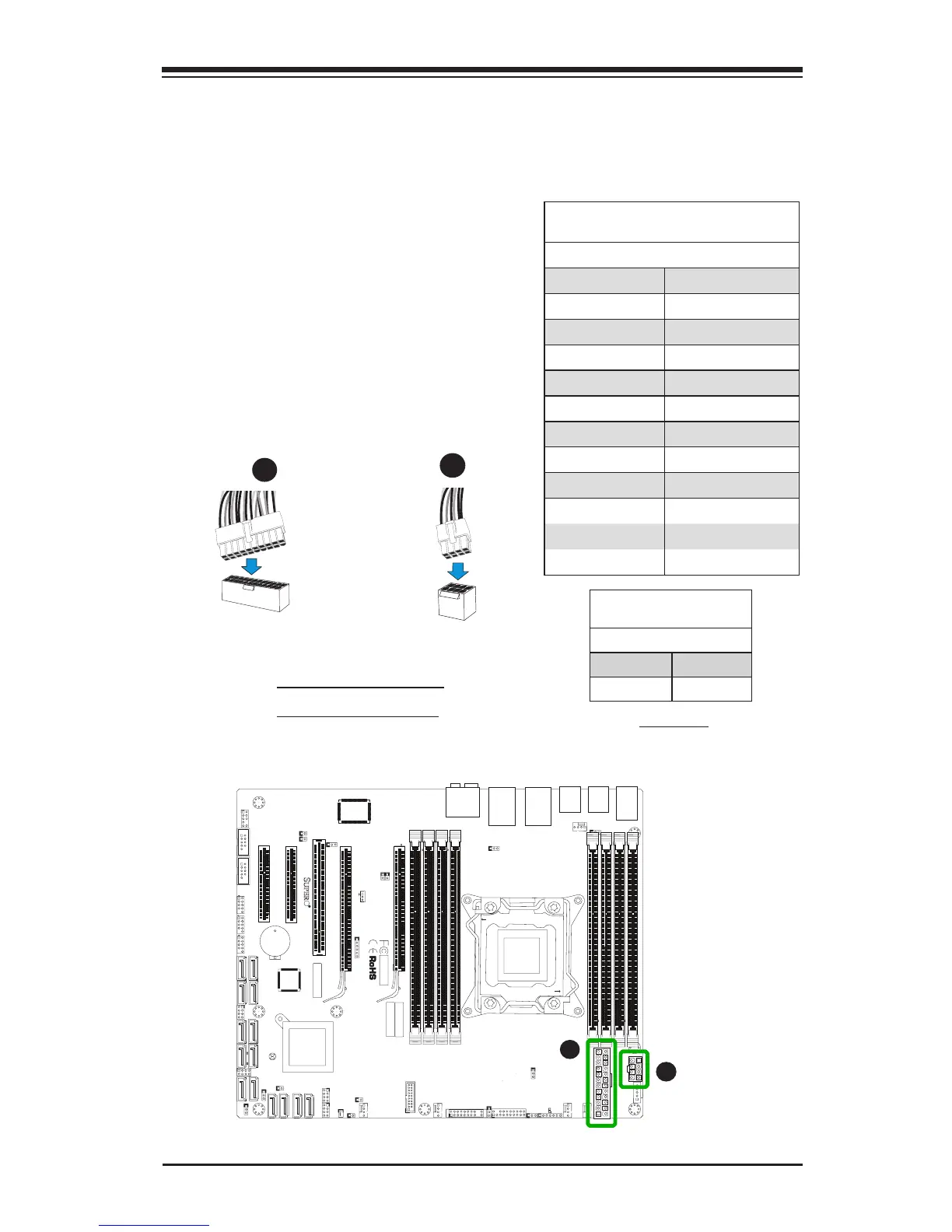

2-6 Connecting Cables & Optional Devices
This section provides brief descriptions and pin-out denitions for onboard headers
and connectors. Be sure to use the correct cable for each header or connector.
A. 24-Pin ATX Main PWR
B. 8-Pin Processor PWR
A
B
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
ATX Main PWR (JPW1) & CPU PWR
Connectors (JPW2)
The 24-pin main power connector
(JPW1) is used to provide power to
the motherboard. The 8-pin CPU PWR
connector (JPW2) is also required for
the processor. These power connectors
meet the SSI EPS 12V specication. See
the table on the right for pin denitions.
8-Pin Processor PWR
A
B
24-Pin Main PWR
