X9SRA Motherboard Series User’s Manual
Proper Battery Disposal
Warning! Please handle used batteries
carefully. Do not damage the battery in any
way; a damaged battery may release hazard-
ous materials into the environment. Do not
discard a used battery in the garbage or a
public landll. Please comply with the regula-
tions set up by your local hazardous waste
management agency to dispose of your used
battery properly.
Battery Installation

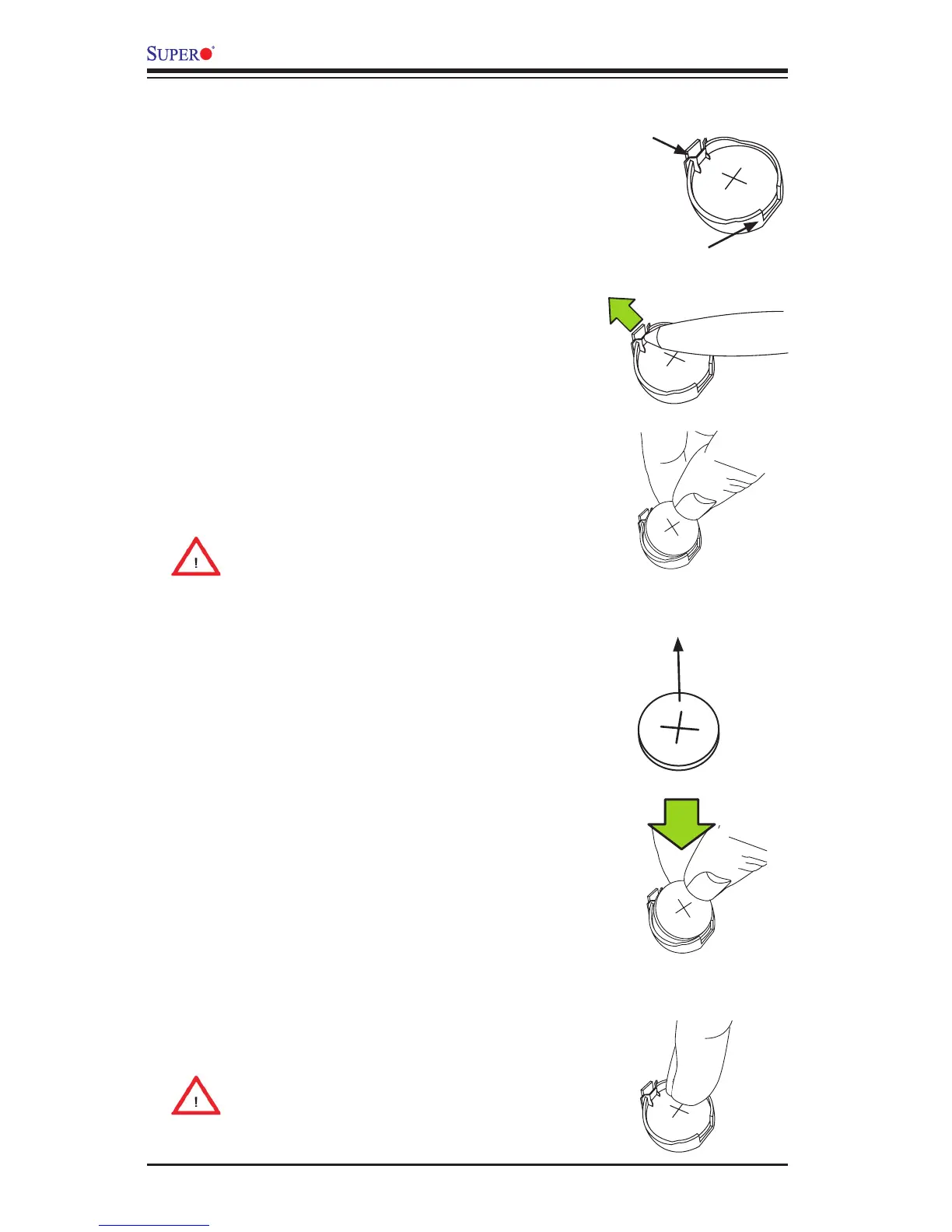

1. To install an onboard battery, follow the steps 1&
2 above and continue below:
2. Identify the battery's polarity. The positive (+) side
should be facing up.
3. Insert the battery into the battery holder and push
it down until you hear a click to ensure that the
battery is securely locked.
Warning: When replacing a battery, be sure
to only replace it with the same type.
Battery
Lock
Battery
Battery Holder
1
2
3-4 Battery Removal and Installation
Battery Removal
To remove the onboard battery, follow the steps below:
1. Power off your system and unplug your power
cable.
2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver,
push the battery lock outwards to unlock it. Once
unlocked, the battery will pop out from the holder.
4. Remove the battery.
Press down until
you hear a click.
This side up
