Supertech CS-164 User Manual

OPERATING INSTRUCTIONS
1.POWER ON/OFF (1)
By pressing this key(1),the unit is switched on and off.
This unit is turned on by pressing any key.
Insert the front p anel in the unit and push POWER button
in order on the unit.
Push PWR button newly in order to switch off the unit and
Push RELEASE button(13) to release the front panel.
NOTE: Never release the front panel when the unit is on.
Power rem ains on even when car radio is off.
2.SELECT
3.VOLUME UP/DOWN
Press the VO(+) and VOL( -) keys to control the VOLUME.
To select other functions, press the SEL(2) button shortly
until the desired functions is shown on the display.Figure 1
shows how control functi ons are selected using the SEL button.

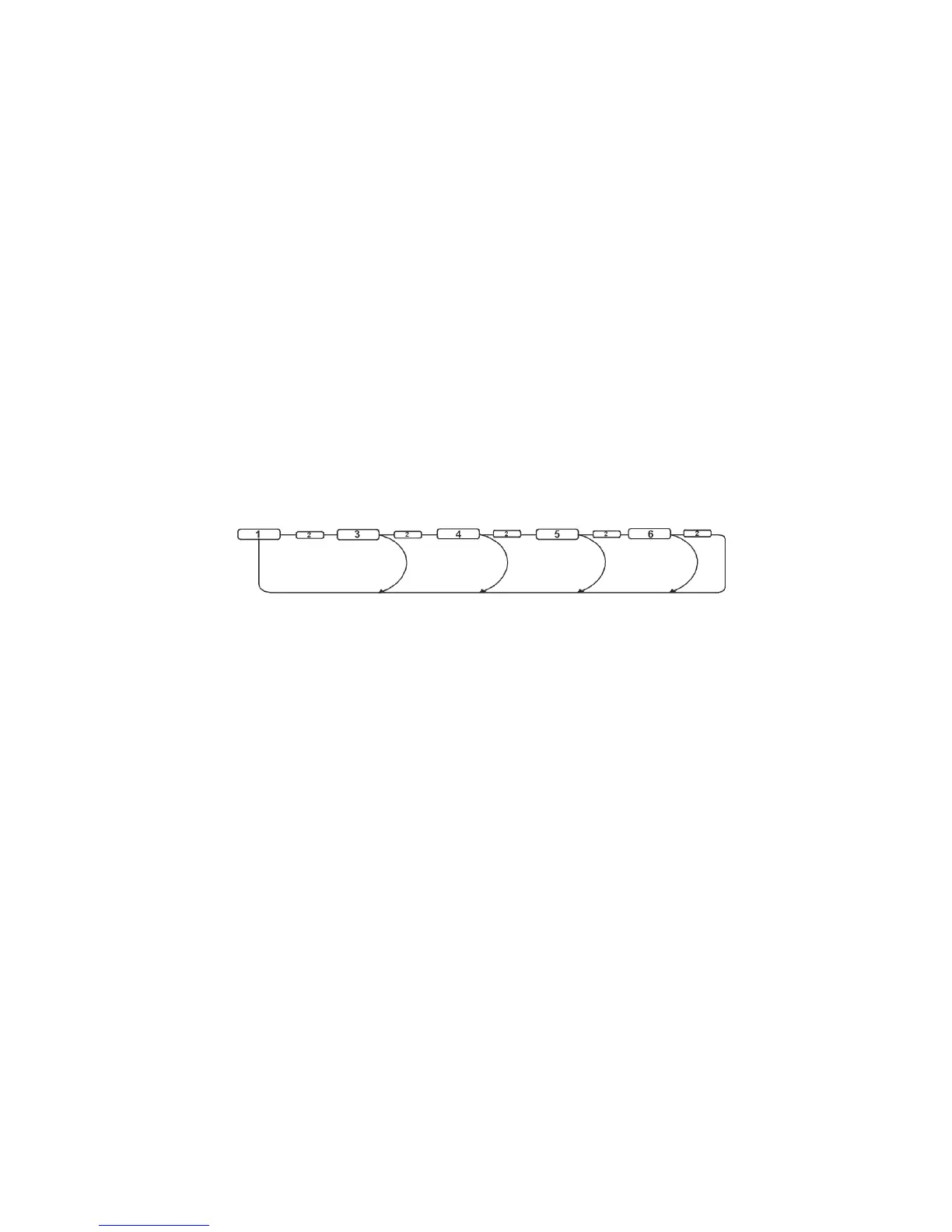

Fig. 1 Selection of sound control functions
1. VOLUME 2. SELECT 3. BASS 4. TREBLE 5. BALANCE
6. FADER VOL.UP Button (+) and VOL.DOWN Button ( - ).
Increase or decrease the volume by pressing + or - .
The se buttons can be user to adjust the BASS, TREBLE,
BALANCE and FADER.
1) AUDIO DSP FUNCTION
When press the SEL button for more than 2 seconds, it is
activated as selecting mode of these function.

Supertech CS-164 Specifications

FM Tuner

frequency range	87.5-108.0 MHz
usable sensitivity	2 V at s/n 30 dB
intermediate frequency	10.7 MHz

MW Tuner

frequency range	520-1620 KHz
usable sensitivity	40 dB at S/N 20 dB
intermediate frequency	455 KHz

CD/MP3 Player Section

signal to noise ratio	>60 dB
frequency response	20 Hz-18 KHz

Reamplified Lineout

output	600 mV (MAX)
impedance	10 Kohm

General

power supply voltage	DC 13.2 Volts Negative Ground
maximum current consumption	6 A
maximum output power	40 W X4CH
