Supertech CS-164 User Manual

INSTALLATION
PRECAUTIONS
Choose the mounting location carefully so that the
unit will not interfere with the normal driving functions
of the driver.
Avoid installing the unit where it would be subject to
high temperatures, such as from direct sunlight or
hot air from the heater, or where it would be subject
to dust, dirt or excessive vibration.
Use only the supplied mounting hardware for a safe
and secure installation.
Be sure to remove the front panel before installing
the unit.
Mounting angle adjustment
Adjust the mounting angle to less than 30.

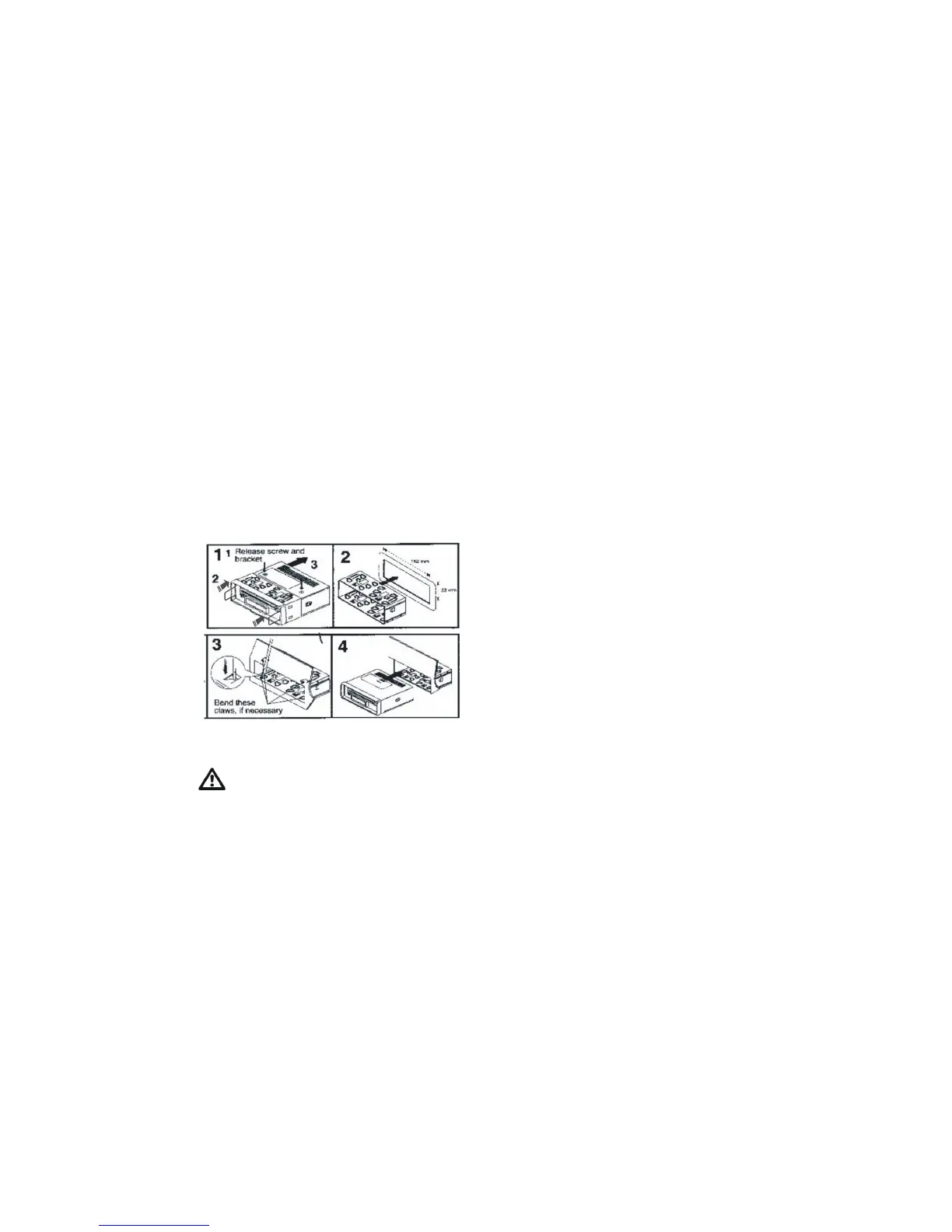

MOUNTING EXAMPLE
Installation in the das hboard
Keep the release key in the safe place as you may
need it in future to remove the unit from the car.

Supertech CS-164 Specifications

FM Tuner

frequency range	87.5-108.0 MHz
usable sensitivity	2 V at s/n 30 dB
intermediate frequency	10.7 MHz

MW Tuner

frequency range	520-1620 KHz
usable sensitivity	40 dB at S/N 20 dB
intermediate frequency	455 KHz

CD/MP3 Player Section

signal to noise ratio	>60 dB
frequency response	20 Hz-18 KHz

Reamplified Lineout

output	600 mV (MAX)
impedance	10 Kohm

General

power supply voltage	DC 13.2 Volts Negative Ground
maximum current consumption	6 A
maximum output power	40 W X4CH
