Supertech CS-164 User Manual

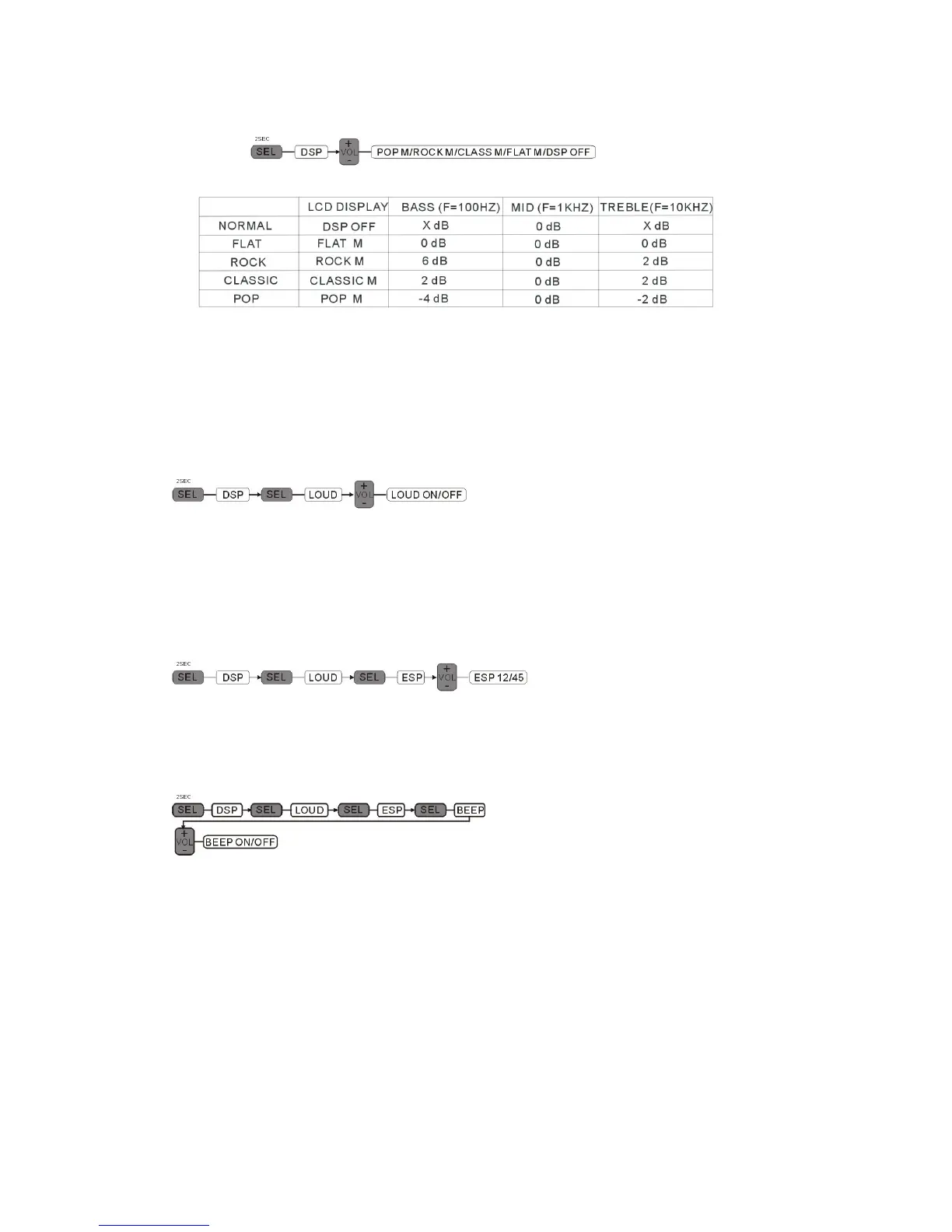

DSP can b e selected by VOL+ and VOL- key.
POP M ---ROCK M--- CLASS M --- FLAT M --- DSP OFF
2) LOUDNESS CONTROL
When press the SEL button for more than 2 seconds, it is
activated as selecting mode of these function.
LOUD ON/OFF mode is selected by VOL+ and Vol - key.
The bass and treble response will be boosted.
3) ESP MODE
When press the SEL button for more than 2 seconds, it is
activated as selecting mode of these function.
4) BEEP MODE
When press the SEL button for more than 2 seconds, it is
activated as sele cting mode of these function.

Supertech CS-164 Specifications

FM Tuner

frequency range	87.5-108.0 MHz
usable sensitivity	2 V at s/n 30 dB
intermediate frequency	10.7 MHz

MW Tuner

frequency range	520-1620 KHz
usable sensitivity	40 dB at S/N 20 dB
intermediate frequency	455 KHz

CD/MP3 Player Section

signal to noise ratio	>60 dB
frequency response	20 Hz-18 KHz

Reamplified Lineout

output	600 mV (MAX)
impedance	10 Kohm

General

power supply voltage	DC 13.2 Volts Negative Ground
maximum current consumption	6 A
maximum output power	40 W X4CH
