Supertech CS-164 User Manual

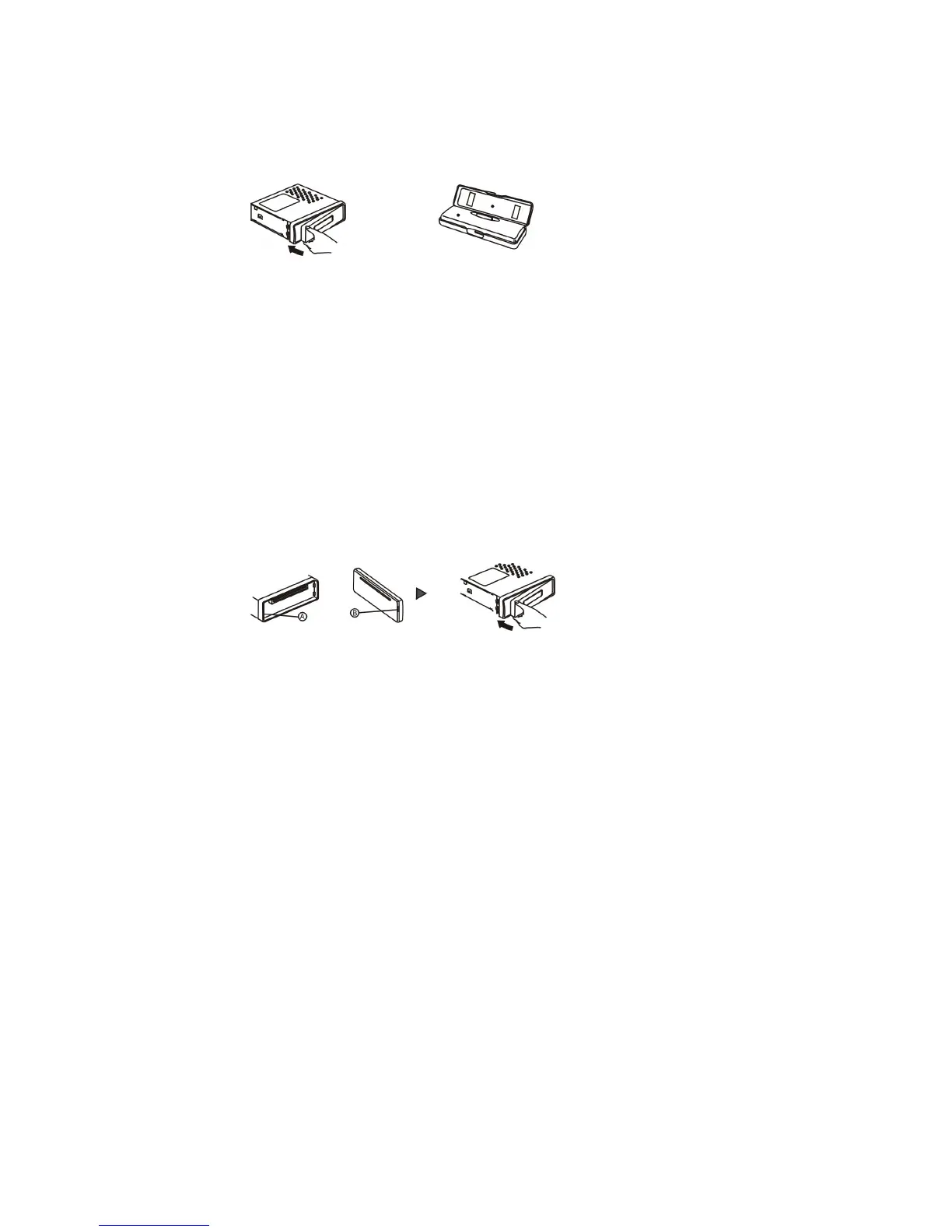

Detaching and attaching the front panel
The front panel of this unit can be detached in order to
prevent the unit from being stolen.
DETACH ING THE FRONT PANEL
Before detaching the front panel, be sure topress the
PWR button to turn off the unit first.
Then press the button and detach the panel by pulling it
towards you as illustrated.
Note: Be sure not to drop the panel when detaching it
from the unit.
ATTACHING THE FRONT PANEL
Make sure the front panel is the right way up when atta -
ching it to the unit as it cannot be attached upside down.
Bring side B of panel to side A of main unit. Inset the panel
in and push until it clicks. Pan el is attached.
Notes:
Do not press the front panel hard against the unit when
attaching it. It can be easily attached by pressing it lightly
against the unit.
When you carry the front panel with you, put it in the
supplied front panel case.
Do not press hard or give excessive pressure to the
display window of the front panel when attaching it to the
unit.

Supertech CS-164 Specifications

FM Tuner

frequency range	87.5-108.0 MHz
usable sensitivity	2 V at s/n 30 dB
intermediate frequency	10.7 MHz

MW Tuner

frequency range	520-1620 KHz
usable sensitivity	40 dB at S/N 20 dB
intermediate frequency	455 KHz

CD/MP3 Player Section

signal to noise ratio	>60 dB
frequency response	20 Hz-18 KHz

Reamplified Lineout

output	600 mV (MAX)
impedance	10 Kohm

General

power supply voltage	DC 13.2 Volts Negative Ground
maximum current consumption	6 A
maximum output power	40 W X4CH
