Supertech CS-164 User Manual

ISO CONNECTOR
RCA Jack Line Out(Rear) - Gray
:Red(right)
:White(left)

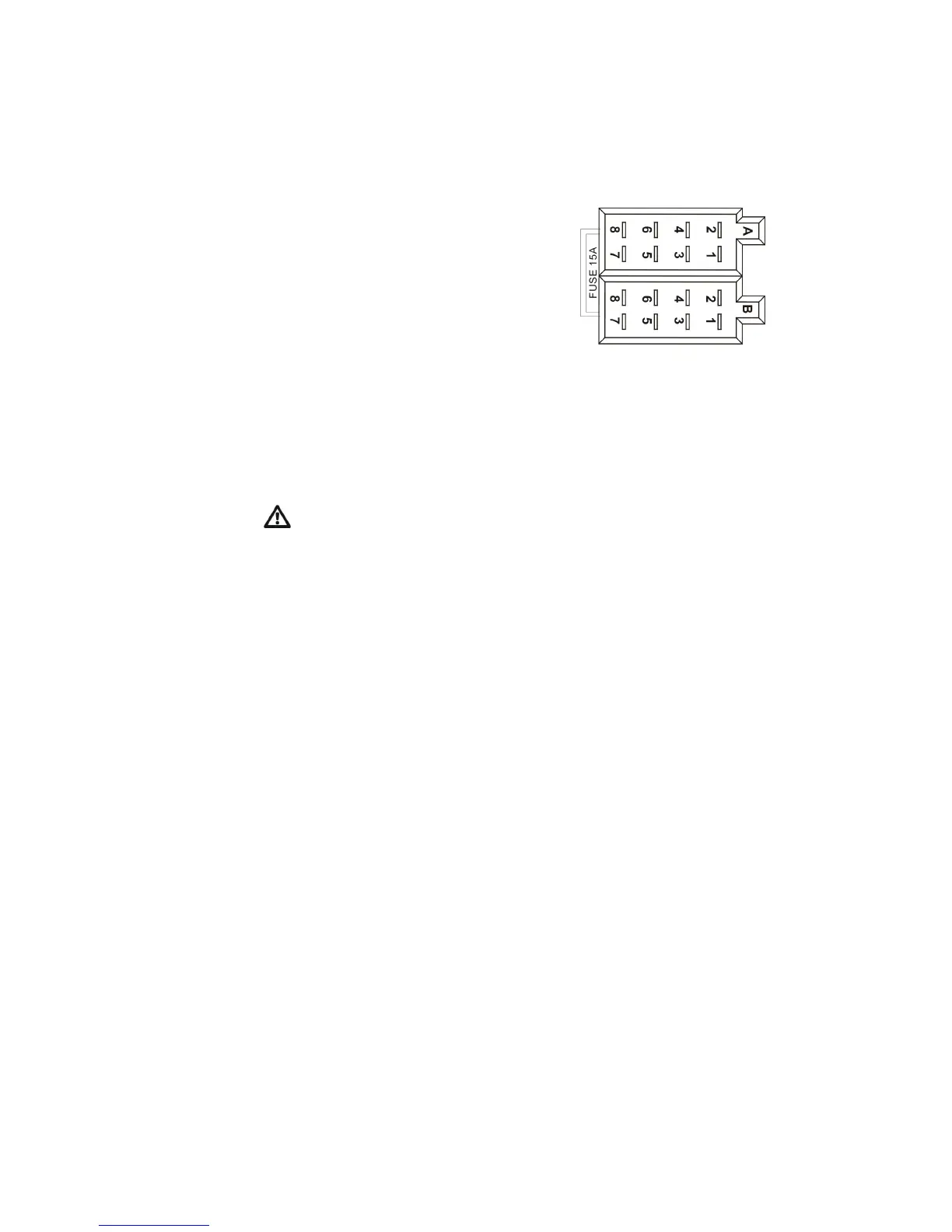

CONNECTOR A
1.
2.
3.
4. MEMORY +12V
5 . AUTO ANTENNA OUTPUT
6.
7.+12V (TO IGNITION KEY)
8. GROUND
The connector A no.7 must be connected by car
ignition key in order to avoid that car battery be-
comes weak when the car will be not used for long
pe riod.
CONNECTOR B
1. REAR RIGHT SPEAKER(+)
2. REAR RIGHT SPEAKER( -)
3. FRONT RIGHT SPEAKER(+)
4. FRONT RIGHT SPEAKER( -)
5. FRONT LEFT SPEAKER(+)
6. FRONT LEFT SPEAKER( -)
7. REAR LEFT SPEAKER(+)
8. REAR LEFT SPEAKER( -)

Supertech CS-164 Specifications

FM Tuner

frequency range	87.5-108.0 MHz
usable sensitivity	2 V at s/n 30 dB
intermediate frequency	10.7 MHz

MW Tuner

frequency range	520-1620 KHz
usable sensitivity	40 dB at S/N 20 dB
intermediate frequency	455 KHz

CD/MP3 Player Section

signal to noise ratio	>60 dB
frequency response	20 Hz-18 KHz

Reamplified Lineout

output	600 mV (MAX)
impedance	10 Kohm

General

power supply voltage	DC 13.2 Volts Negative Ground
maximum current consumption	6 A
maximum output power	40 W X4CH
