Supertech CS-164 User Manual

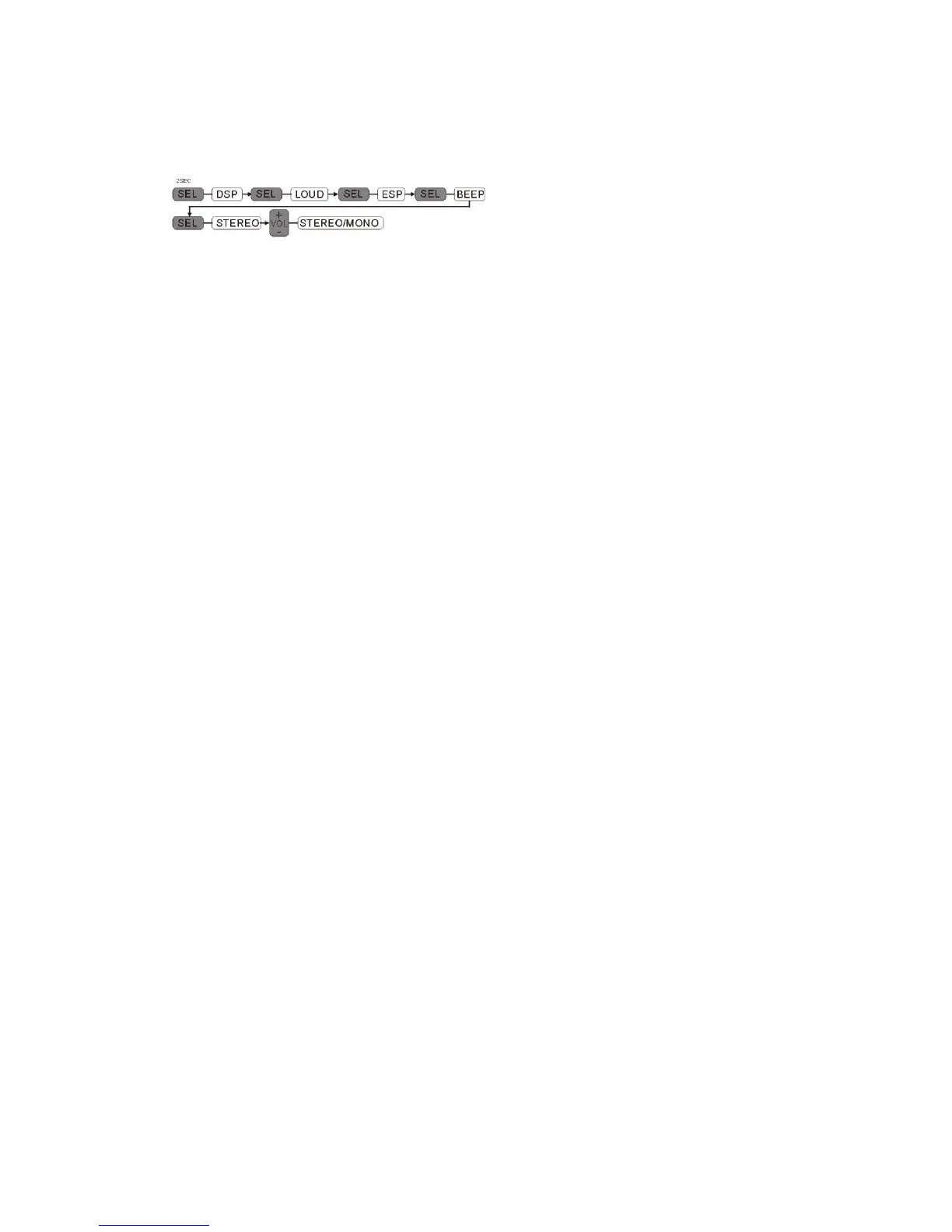

5)STEREO/MONO
When press the SEL button for more than 2 seconds, it is
activated as selecting mode of these function.
When FM stations are weak and are disturbed, listening can
be improved by selecting MONO.
U SING THE RDS FUNCTION
What is RDS?
The RDS (Radio Data System) is a digital information system
developed by the EBU (European Broadcast Union). Piggy -
backed on normal FM broadcasts, RDS offers a variety of
information services and automatic retuning func tions for RDS
compatible car stereos.
In 1988, RDS became available in the United Kingdom, France,
West Germany, Ireland and Sweden. Test transmissions are
being conducted in many other European countries. It is
expected that RDS will be available in mos t western European
countries in the near future.
4. AF FUNCTION
When press the button, it is activated as AF mode ON or OFF.
When AF station is received, AF segment is turned on in LCD
display.
5. TA FUNCTION
When press the button, it is activated as TA mode ON or OFF.
When TA mode is on and traffic announcement is transmitted.
When the unit is in CD/MP3 mode, it will switch to radio mode
temporarily.

Supertech CS-164 Specifications

FM Tuner

frequency range	87.5-108.0 MHz
usable sensitivity	2 V at s/n 30 dB
intermediate frequency	10.7 MHz

MW Tuner

frequency range	520-1620 KHz
usable sensitivity	40 dB at S/N 20 dB
intermediate frequency	455 KHz

CD/MP3 Player Section

signal to noise ratio	>60 dB
frequency response	20 Hz-18 KHz

Reamplified Lineout

output	600 mV (MAX)
impedance	10 Kohm

General

power supply voltage	DC 13.2 Volts Negative Ground
maximum current consumption	6 A
maximum output power	40 W X4CH
