IntelliShot & FlexoShot: Operations Manual Page 12
INTELLISHOT Portion-Control, Fill-in-Place (with Dispenser Flip Lid)
For dispense accuracy, only SureShot 3-inch (7.6 cm), pre-cut, white tubes should be used,
and the product tank must be filled to a marked level with every refill. After filling the tank to a
marked level, the correct product level must be selected in the software.
1. Install a SureShot 3-inch (7.6 cm), pre-cut, white tube onto the spout of a clean, sanitized
product tank by pushing the end of the tube fully onto the spout.
2. Open the dispenser door and flip lid on top of the dispenser.

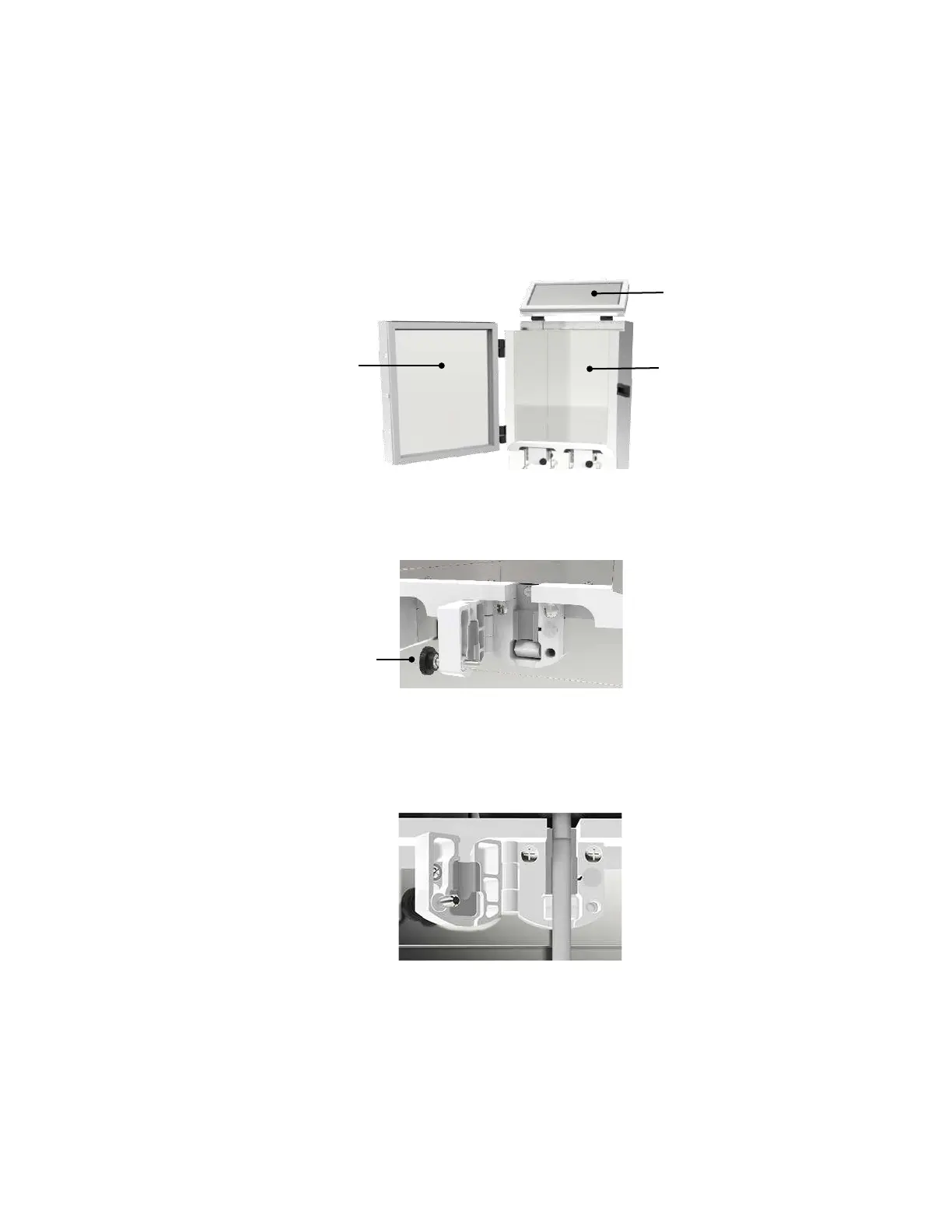

Figure 18: Flip lid on top of dispenser
3. Open the valve door by turning the thumbscrew counterclockwise.
Figure 19: Open valve door
4. Place the clean, sanitized tank in the product compartment above the correct valve with
the tube facing out.
5. Centre the tube in the valve opening. The tube should not be twisted, kinked, or pinched.
Figure 20: Correct tube placement
6. Close the valve door and turn the thumbscrew clockwise until the valve door is secure and
the plunger activates, making a sound. Do not over-tighten the thumbscrew.
