IntelliShot & FlexoShot: Operations Manual Page 11
6. Fold up the tube and pinch it just below the valve. This will push product out of the tube
and up into the bag.
7. While holding the tube, close the valve door and turn the thumbscrew clockwise until the
valve door is secure and the plunger activates, making a sound. Do not over-tighten the
thumbscrew. Release the tube.
8. Close the dispenser door.
9. Using sanitized, sharp scissors, carefully cut the tube at a 45-degree angle to a maximum
length of 5/8-inch (1.5 cm) from the bottom of the valve door. Discard the cut portion of
the tube.

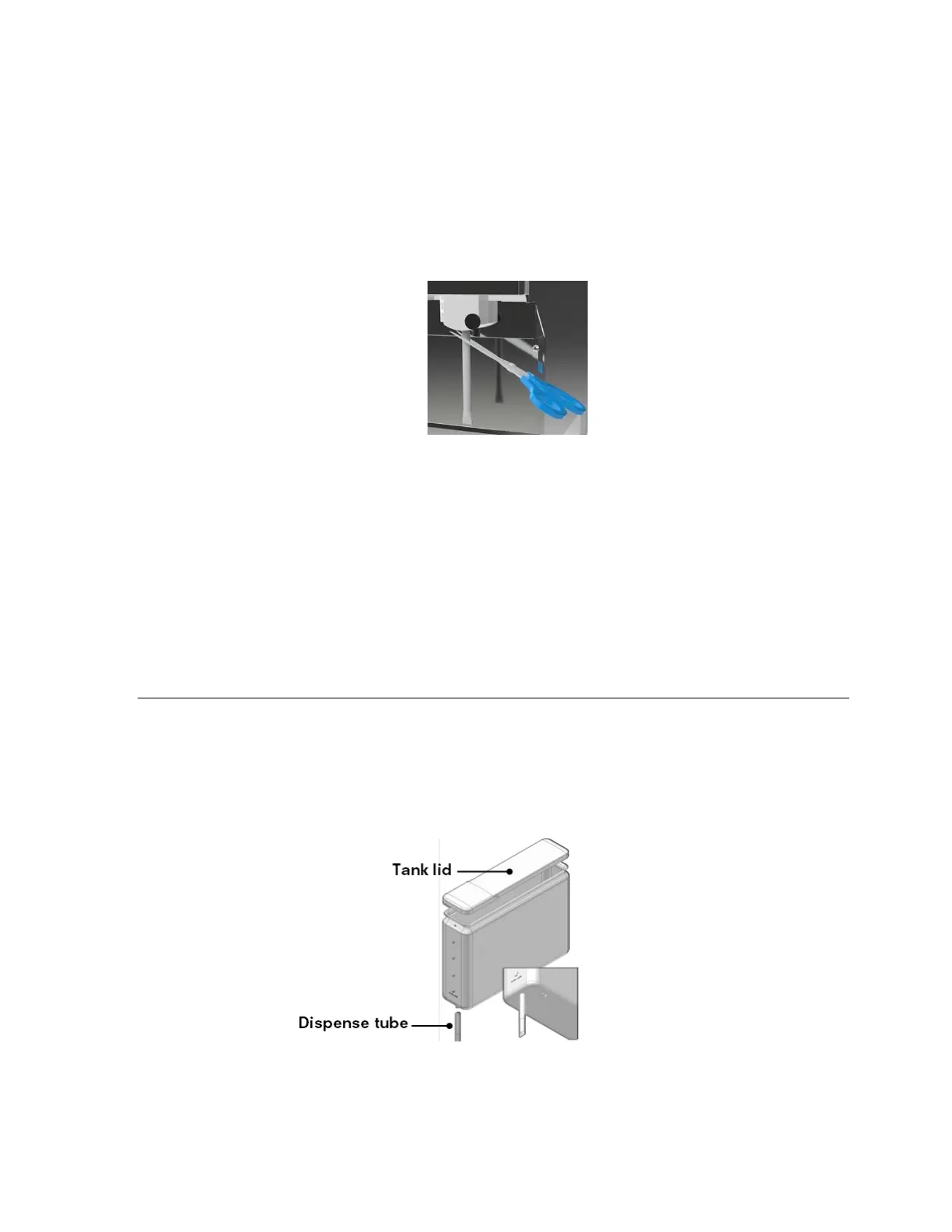

Figure 16: Cutting the tube
Removing a Bag-in-Box
1. Open the dispenser door.
2. Place a clean container under the tube to catch any residual product that may drain once
the valve door is open.
3. Open the valve door by turning the black thumbscrew counterclockwise.
4. Allow any residual product to drain. If desired, clamp the tube to reduce drips.
5. Remove the empty bag-in-box from the dispenser and discard.
Refillable Tank
Product is transferred from the original packaging into a clean, sanitized, refillable tank. Attach a
new dispense tube every time the tank is cleaned. Dispensers equipped with a flip lid (Fill-in-Place
models) are recommended for quick and easy tank refills. The steps to refill a tank are specific to
the model of dispenser. Refer to the job aid located inside the dispenser door for further
instructions.
Figure 17: Refillable tank
