4.2 MACHINE COMPONENTS
SurgeMaster Portable Generators consists of sev-
eral models of generators. Although slightly dif-
ferent for each model, controls and power outlets
are mounted in similar locations for convenient
access and operation.
The unit is designed to provide electrical power for
work (Contractor Ready series) or home (Emer-
gency Power series). Each outlet is designed with
a circuit breaker to protect against overload. For
protection against electrical shocks from short cir-
cuits, the machine is neutral bonded to the frame.
The entire assembly is mounted within the frame
for added protection and convenient access.

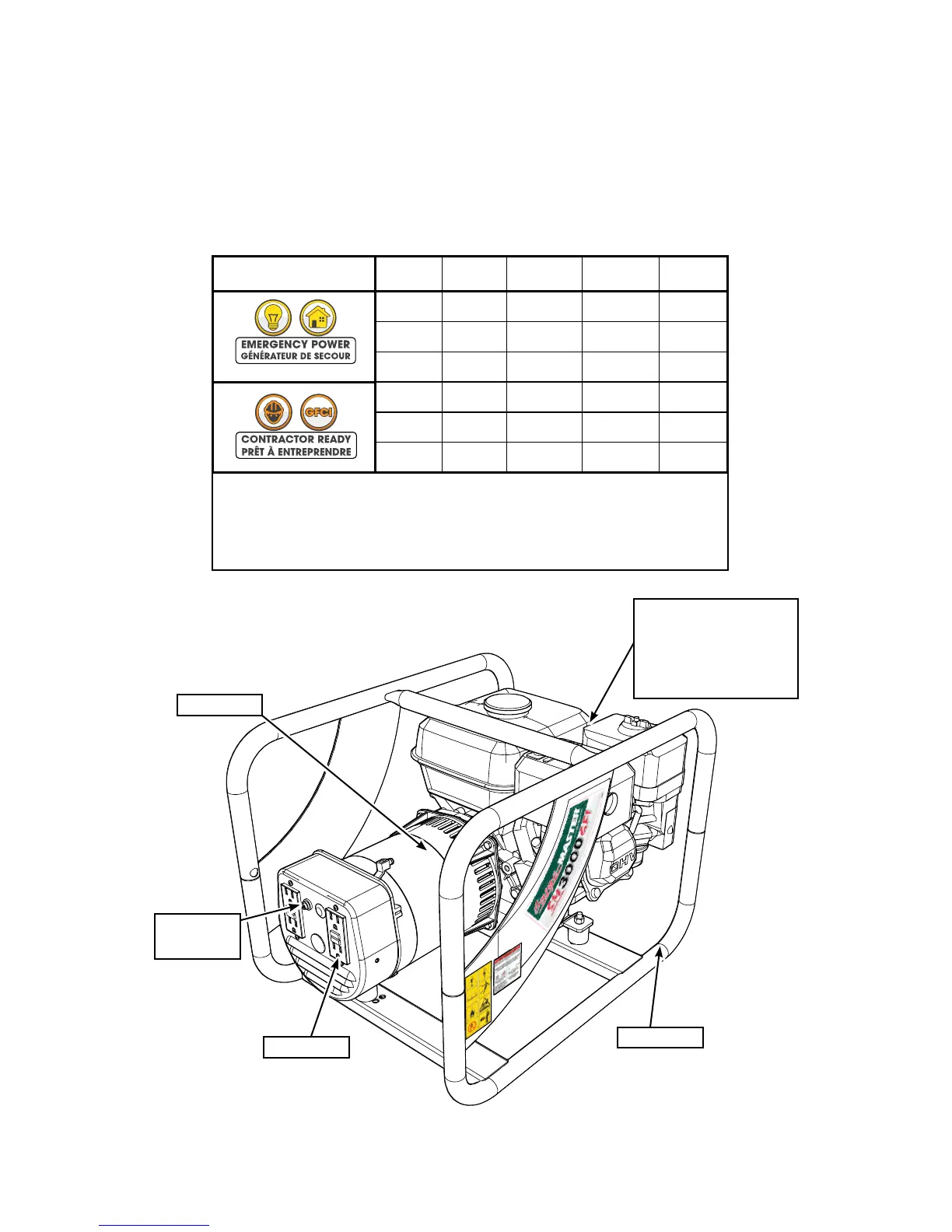

Alternator
Outlets
Circuit
Breaker
Engine
see "Controls" sec-
tion and engine own-
ers manual for more
engine information
Frame
Series Model
SM2500CH 160cc 2.9 kVA 2100 2500
SM3000CH 160cc 2.9 kVA 2700 3000
SM5000CH 270cc 4.9 kVA 4500 5000
SM3000SU 169cc 2.9 kVA 2500 3000
SM3000GFI 160cc 2.9 kVA 2700 3000
SM5000GFI 270cc 4.9 kVA 4500 5000
Note:
All SurgeMaster generators are CSA certied and have the safety feature
of the neutral conductor bonded to the frame, an OSHA requirement when
using portable electrical equipment on job sites.
