1 Preparations
1-6
Mount the sensor head to the stand HA-14

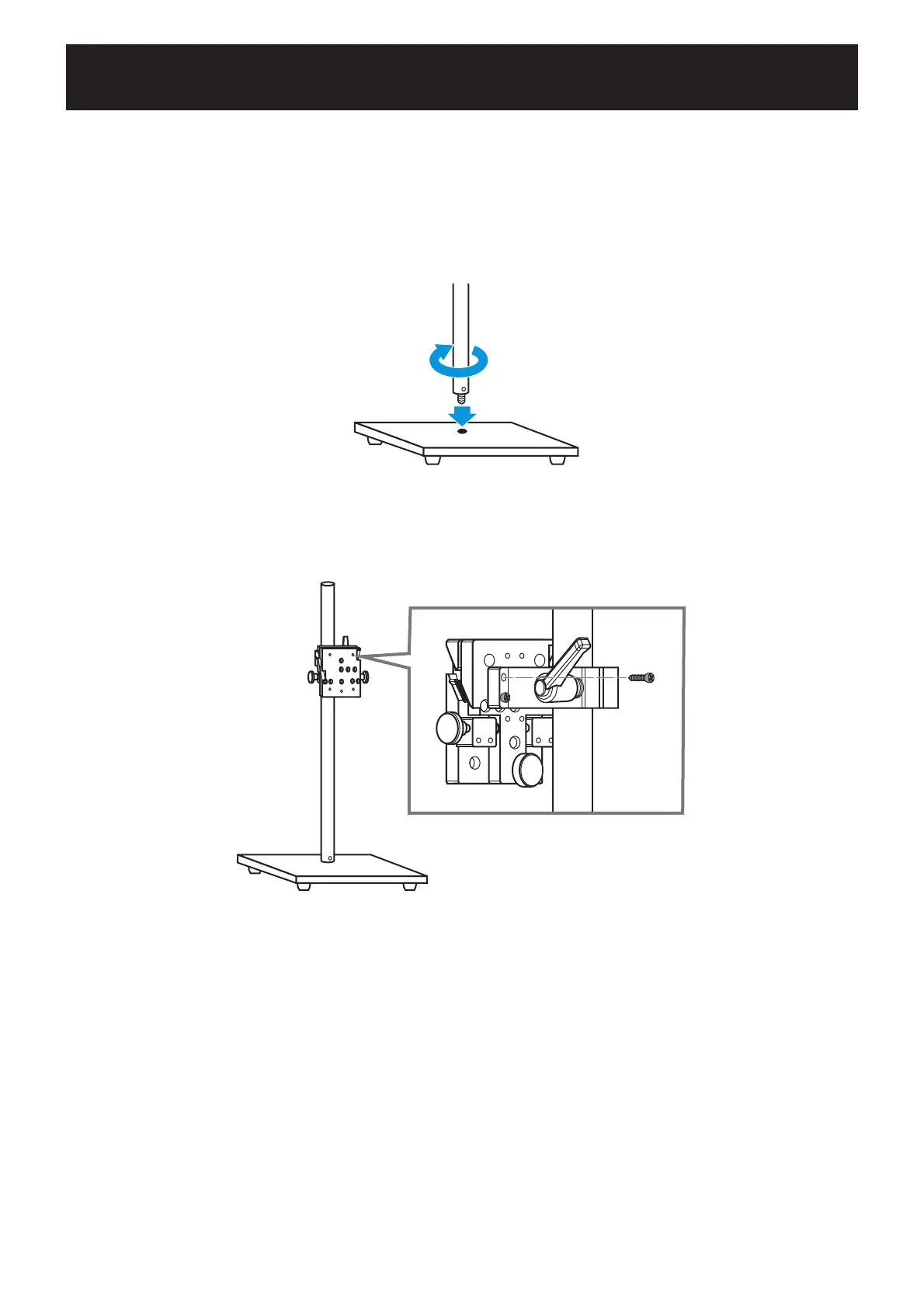

When using the stand (HA-14), install by following the next steps.
1
Assemble the stand.
Mount the rod on the base of the stand.
2
Mount the tilt stage to the stand.
Fix the tilt stage with the screws attached to the stand.
