SUTO S505 - Installation Guide; Installation Procedure Steps

Installation
7 Installation
Please make sure that all components listed below are included in your
package.
Qty Description Item No.
1 Handheld meter with data logger
and S4A software
P560 0505
1 Sensor unit with ordered option
(sensor unit Q, sensor unit P, or
sensor unit Q+P)
S699 0502 / S699 0503
1 Parking / Measuring chamber A699 3500
1 Teflon hose with quick connector A554 0003
1 USB charger with USB cable A554 0018
1 Transport case A554 0019
1 Calibration certificate No P/N
1 Instruction manual No P/N
7.1 Installation procedure
The following steps explain the procedure of an appropriate installation.
1. Define the proper sensor module
which is used for the
measurement. This depends on the
expected measurement value.
• Use the sensor module Q for
expected dew point below
-50 °C Td.
• Use the sensor module P for
expected dew point above
-50°C Td.

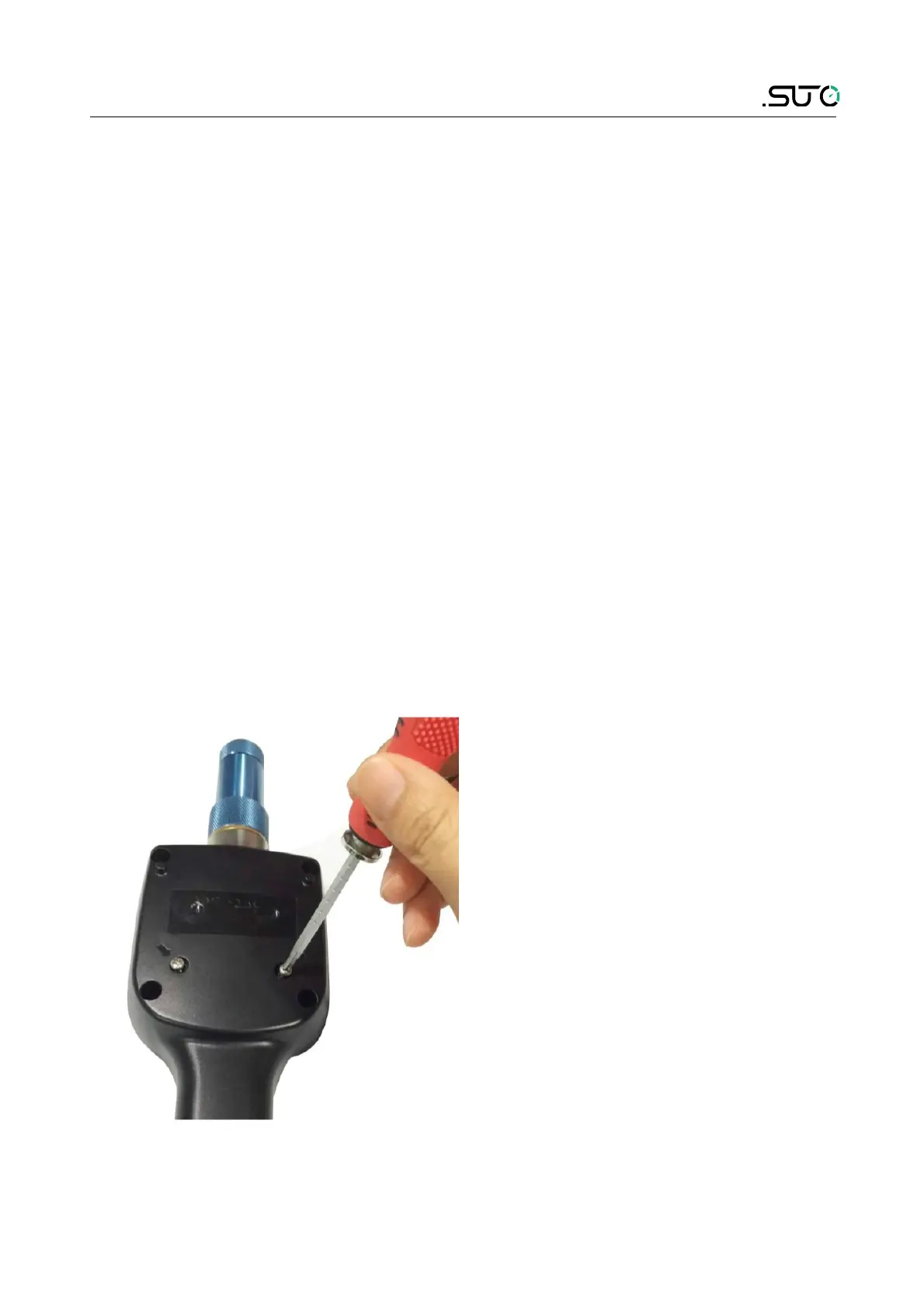

2. To change the sensor modules
just open the 2 screws at the back
of the instrument
S505 11
