Installation
WARNING!
Do not remove or touch the sinter cap !
The sinter cap protects the sensor element from dust
and particles. Wrong handling may effect or even
destroy the sensitive sensor element!

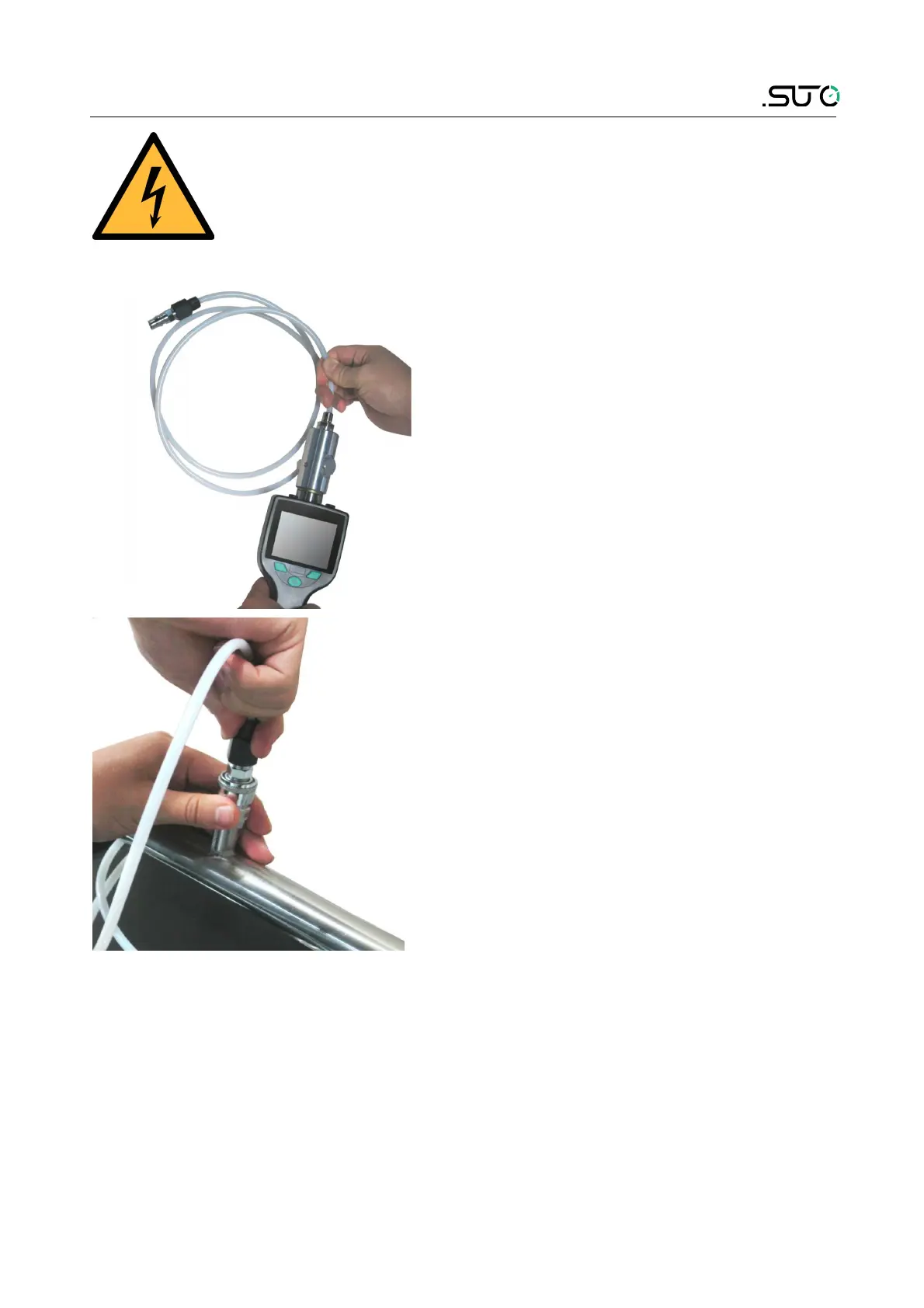

4. Connect the teflon hose with the
measuring chamber. The hose is
connected to the 6 mm connector
at the chamber.
5. Connect the tip of the teflon
hose with a quick connector. The
teflon hose with quick connector is
used to connect the measuring
chamber to the process.
Remark
• Please ensure that the teflon hose remains dry and clean. Wet and
contaminated hoses can effect the measurement and should be
exchanged.
7.2 Electrical connection
Please recharge the dew point meter if the battery is empty. For this use
the charger which is included in your delivered package.
