35

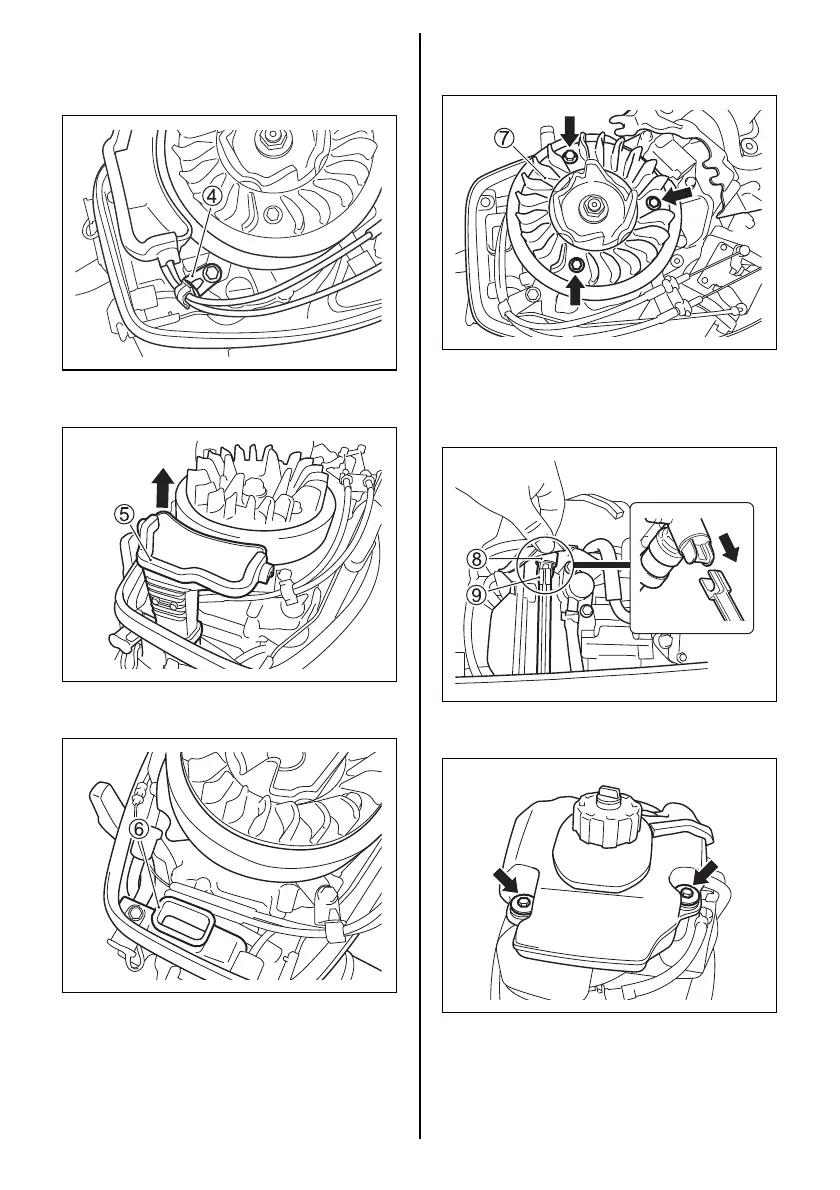

13. Install the clamp 4 with recoil starter secur-
ing bolt.
Bind the throttle cables to the clamp 4.
14. Remove the air vent duct 5.
15. Remove the cushion 6.
16. Remove the bolts securing the cooling fan
7 in place.
17. Put the fuel tank in place by aligning the
position of fuel cock 8 with that of fuel cock
lever 9.
18. Fuel tank is secured with two bolts.
To Next Page
