2-2
CONTROLS

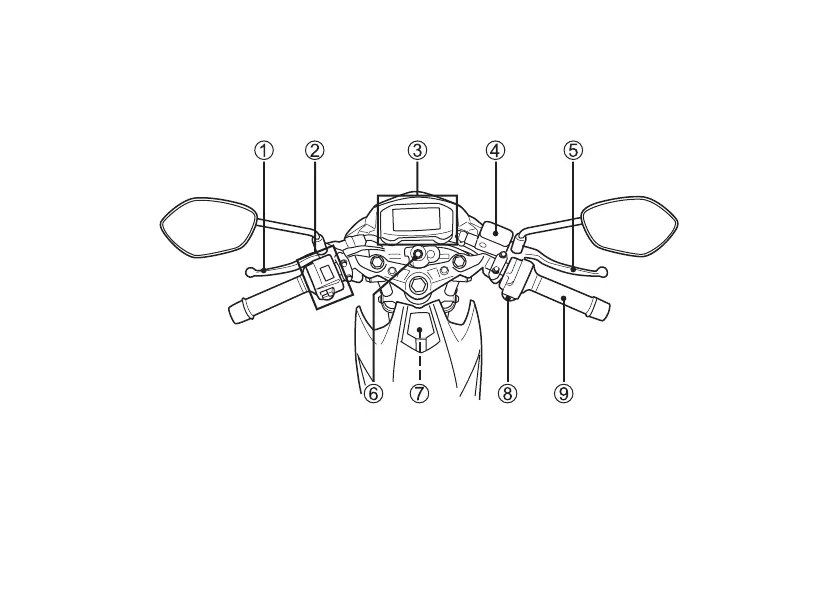

LOCATION OF PARTS
1 Clutch lever
2 Left handlebar switches
3 Instrument panel
4 Front brake fluid reservoir
5 Front brake lever
6 Ignition switch
7 Engine coolant reservoir
8 Electric starter switch
9 Throttle grip
