CLUTCH
10 – 15 mm

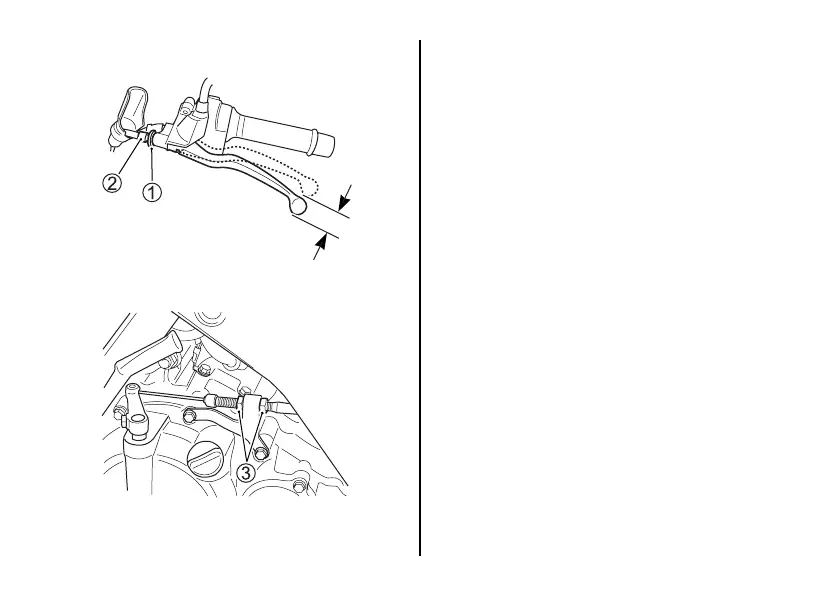

At each maintenance interval, adjust the
clutch cable play with the clutch cable
adjuster. The cable play should be 10 – 15
mm as measured at the clutch lever end
before the clutch begins to disengage. If you
find that the amount of clutch cable play is
incorrect, adjust it in the following way:
1. Loosen the lock nut 1.
2. Turn the clutch lever adjuster 2 clock-
wise as far as it will go.
3. Loosen the cable adjuster lock nuts 3 to
obtain approximately 10 – 15 mm of free
play at the clutch lever end as indicated.
4. Minor adjustment can now be made with
the adjuster 2.
5. Tighten the lock nuts, 1 and 3, after fin-
ishing adjustment.
NOTE: Any maintenance of the clutch other
than the clutch cable play should be per-
formed by your Suzuki dealer.
