6-56 CHASSIS
• Apply brake fluid to the piston and cups.

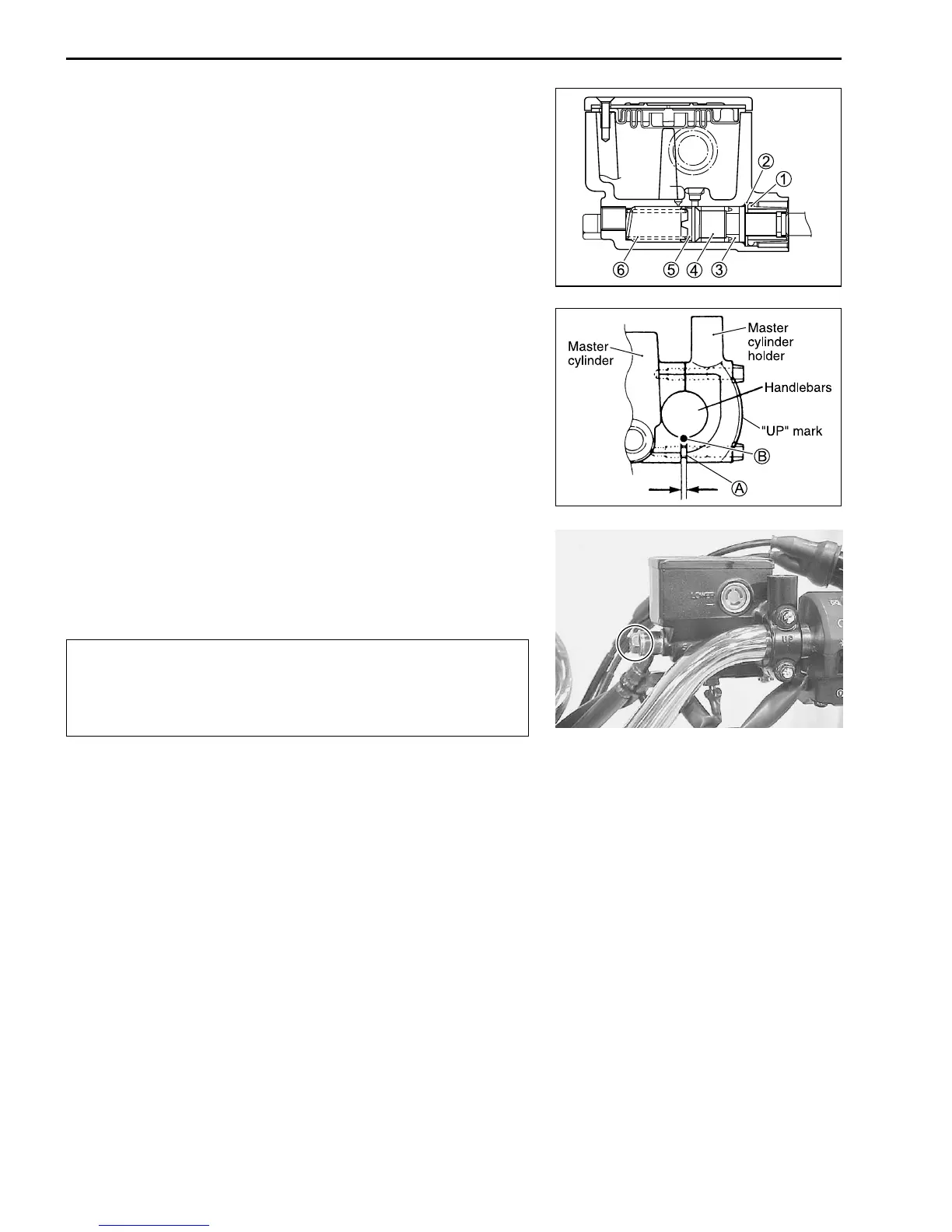

• Install the following parts to the master cylinder.
1 Dust boot
2 Circlip
3 Secondary cup
4 Piston
5 Primary cup
6 Return spring
\ 09900-06108: Snap ring plires
• When remounting the brake master cylinder onto the handle-
bar, align the master cylinder holder’s mating surface A with
punched mark B on the handlebars and tighten the upper clamp
bolt first as shown.
" Front brake master cylinder mounting bolt: 10 N
.
m
(1.0 kgf
.
m, 7.3 lb-ft)
• Tighten the union bolt.
(Brake hose routing: 8-22)
" Brake hose union bolt: 23 N
.
m (2.3 kgf
.
m, 16.5 lb-ft)

* The seal washers should be replaced by the new ones
to prevent fluid leakage.
* Bleed air from the system after reassembling the mas-
ter cylinder. (2-21)
INSPECTION AFTER REASSEMBLY
• Front brake: 2-19
