8-16 SERVICING INFORMATION
WIRING HARNESS, CABLE AND HOSE ROUTING

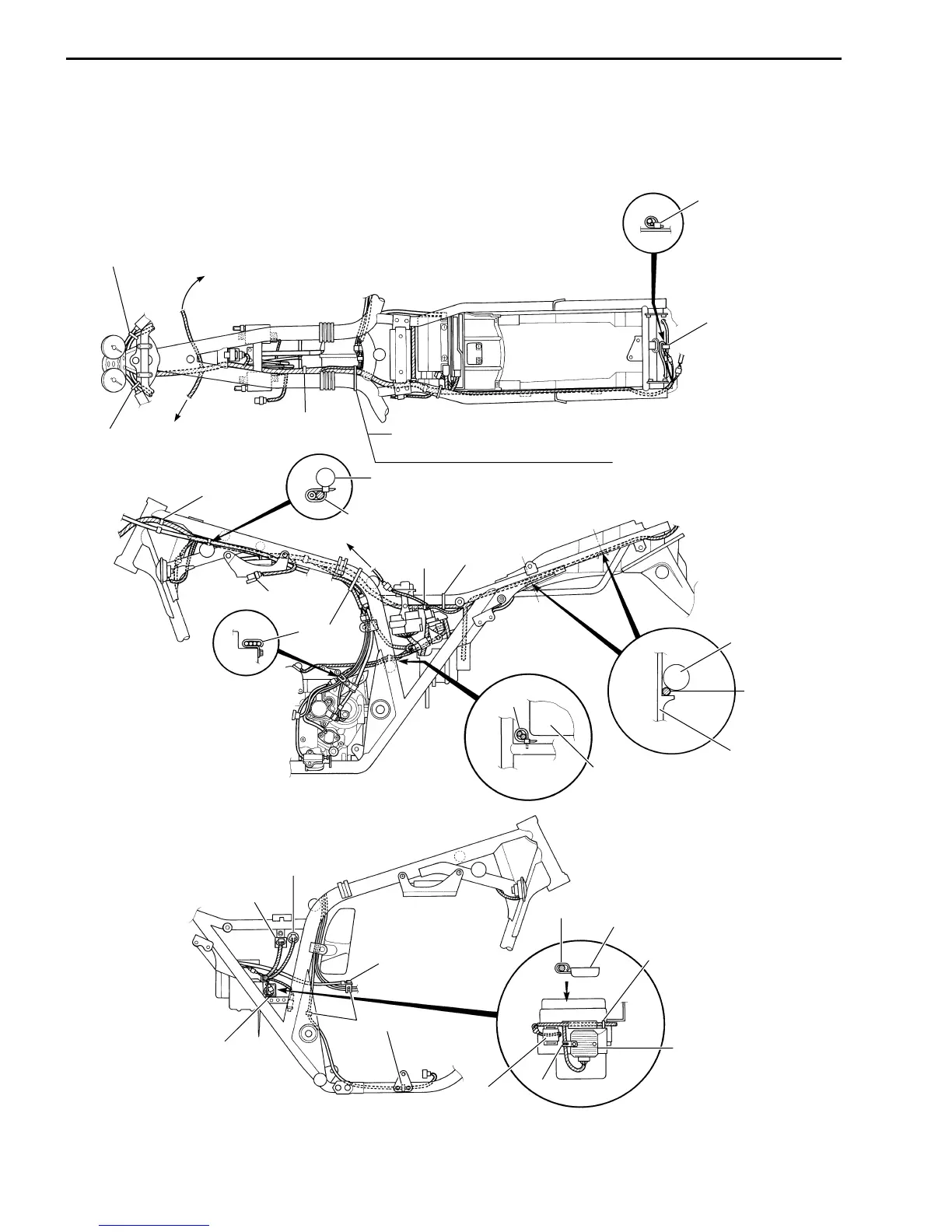

WIRING HARNESS ROUTING
Clamp
(After binding the
lead wires, cut the
projection of the clamp.)
Clamp
(After binding the lead wires,
cut the projection of the clamp.)
Clamp
Clamp
(After binding the lead wires,
cut the projection of the clamp.)
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Frame
Fuel injector lead wires/wiring harness
To the right horn
To the left horn
Clamp
CMP sensor
To the fuel level gauge
Frame
Wiring harness
Rear fender
Regulator/Rectifier
Regulator/Rectifier
TO sensor
Engine ground
IAT sensor
AP sensor
TO sensor
Air cleaner box
