CLUTCH RELEASE CYLINDER AND MASTER CYLINDER
CONSTRUCTION
#
* This clutch system is filled with an ethylene glycol-based DOT 4 brake fluid. Do not use or mix
different types of fluid such as silicone-based or petroleum-based.
* Do not use any brake fluid taken from old, used or unsealed containers. Never reuse brake fluid
left over from the last servicing or stored for long periods.
* When storing the brake fluid, seal the container completely and keep away from children.
* When replenishing brake fluid, take care not to get dust into fluid.
* When washing brake components, use fresh brake fluid. Never use cleaning solvent.

Handle brake fluid with care: the fluid reacts chemically with paint, plastics, rubber materials etc. and
will damage them sererly.

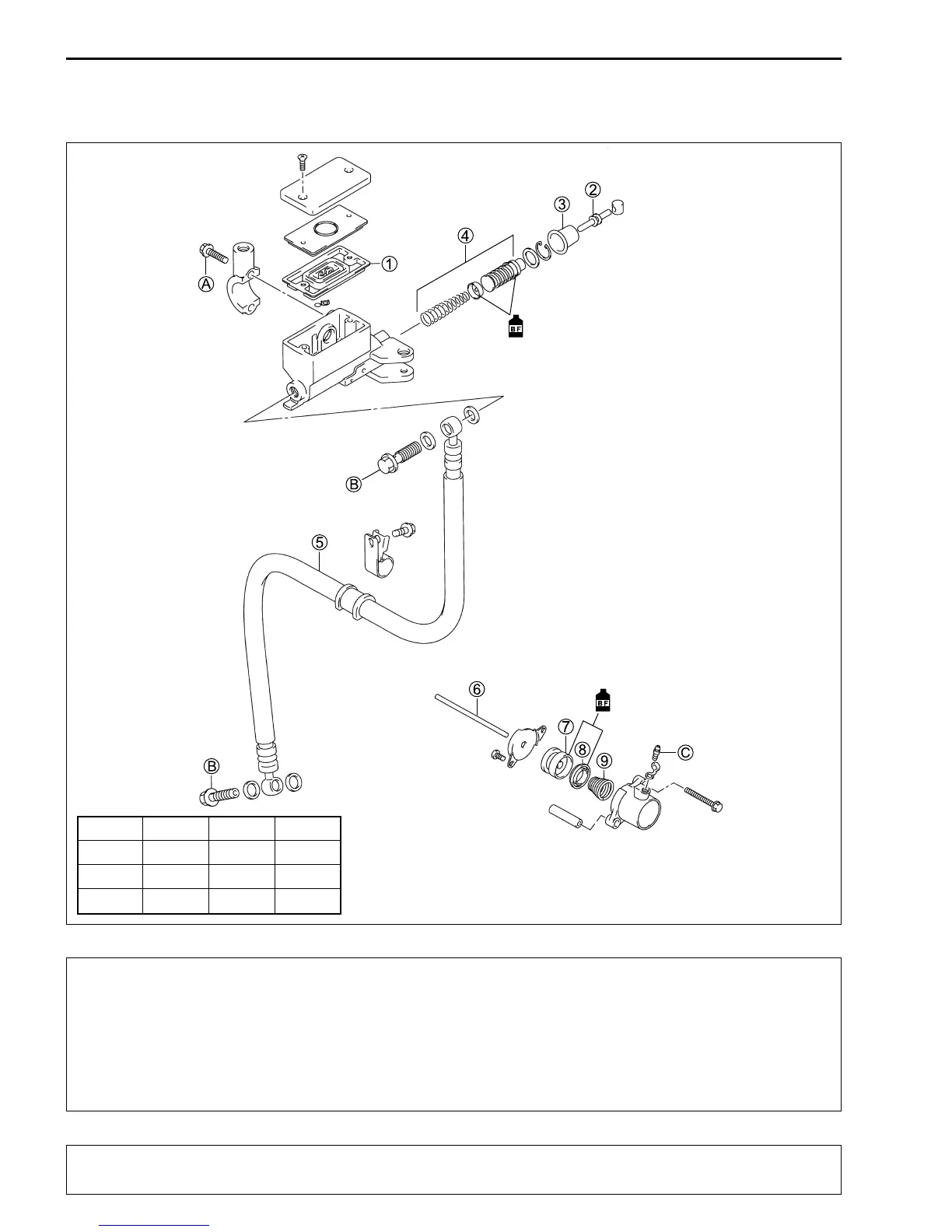

1 Diaphragm
2 Push rod
3 Dust boot
4 Piston/cup set
5 Clutch hose
6 Clutch push rod
7 Piston
8 Piston cup
9 Spring
A Clutch master cylinder mounting bolt
B Clutch hose union bolt
C Air bleeder valve
"
ITEM N
.
m kgf
.
m lb-ft
A 10 1.0 7.3
B 23 2.3 16.5
C 8 0.8 5.7
