CHASSIS 6-63

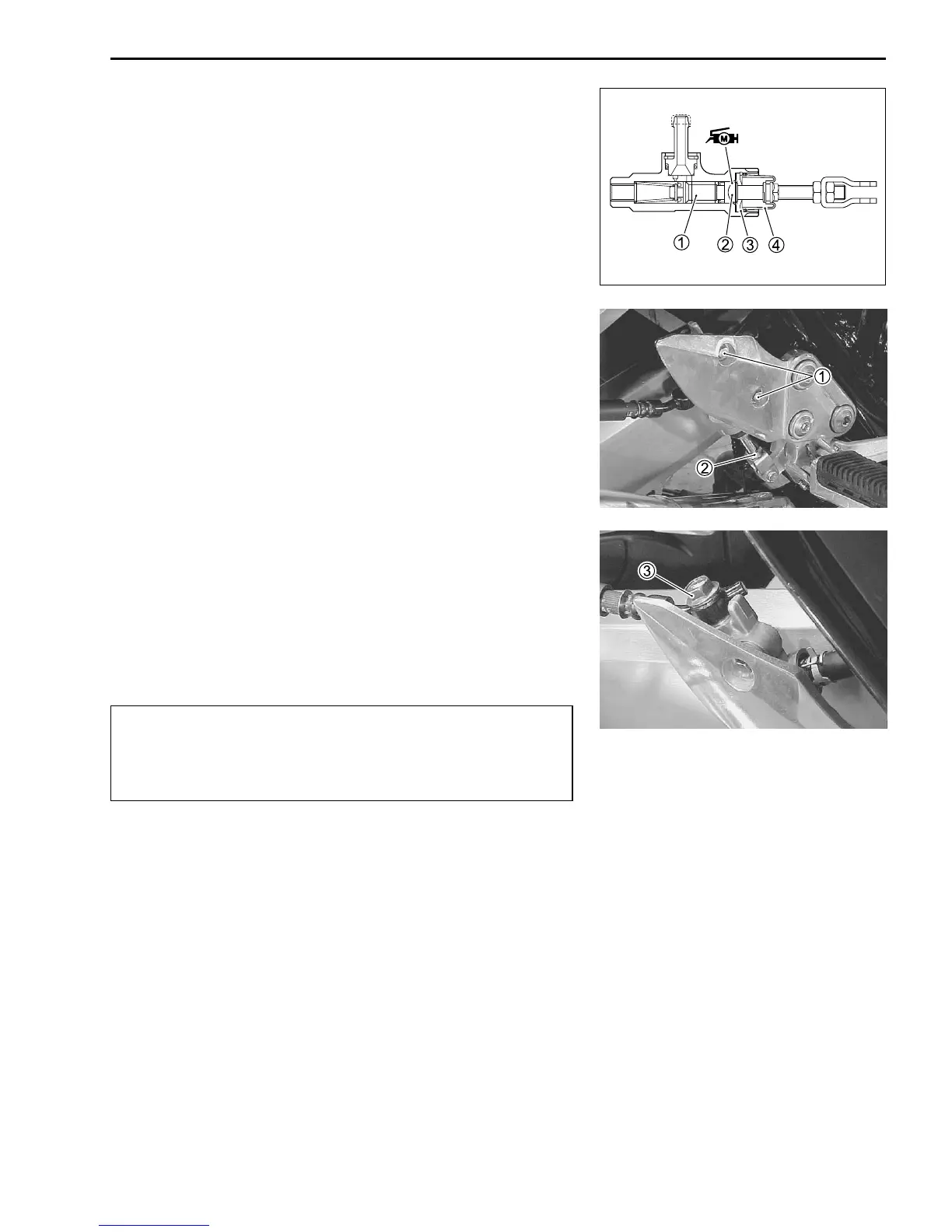

• Apply brake fluid to the piston/cup set.
• Install the following parts.
1 Piston/primary cup
2 Push rod
3 Circlip
4 Dust boot
• Apply the SUZUKI MOLY PASTE to the push rod.
Z 99000-25140: SUZUKI MOLY PASTE
\ 09900-06108: Snap ring pliers
• Install the master cylinder.
• Tighten the lock nut 2.
" Rear master cylinder mounting bolt 1:
10 N
.
m (1.0 kgf
.
m, 7.3 lb-ft)
Rear master cylinder rod lock nut 2:
18 N
.
m (1.8 kgf
.
m, 13.0 lb-ft)
• Connect the brake hose to the master cylinder.
(Rear brake hose routing: 8-23)
• Tighten the brake hose union bolt 3 to the specified torque.
" Brake hose union bolt 3: 23 N
.
m (2.3 kgf
.
m, 16.5 lb-ft)
• Install the reservoir tank and reservoir tank hose.
(Rear brake hose routing : 8-23)

* The seal washers should be replaced by the new ones
to prevent fluid leakage.
* Bleed air from the system after reassembling the mas-
ter cylinder. (2-22)
• Adjust the brake pedal height. (2-20)
INSPECTION AFTER REASSEMBLY
Rear brake: 2-19
