CHASSIS 6-57
REAR BRAKE

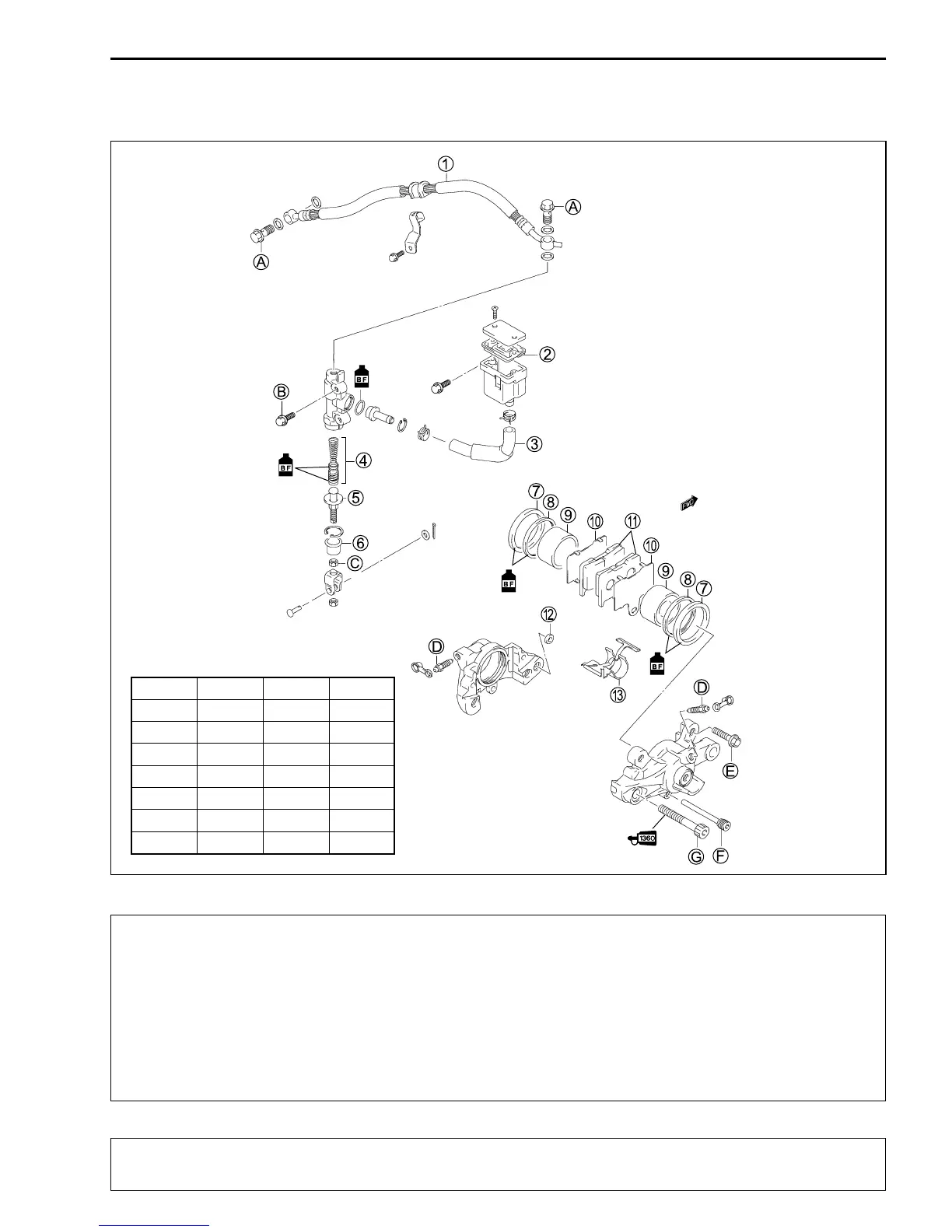

CONSTRUCTION
#
* This brake system is filled with an ethylene glycol-based DOT 4 brake fluid. Do not use or mix
different types of fluid such as silicone-based or petroleum-based.
* Do not use any brake fluid taken from old, used or unsealed containers. Never reuse brake fluid
left over from the last servicing or stored for long periods.
* When storing the brake fluid, seal the container completely and keep away from children.
* When replenishing brake fluid, take care not to get dust into fluid.
* When washing brake components, use fresh brake fluid. Never use cleaning solvent.
* A contaminated brake disc or brake pad reduces braking performance. Discard contaminated
pads and clean the disc with high quality brake cleaner or neutral detergent.

Handle brake fluid with care: the fluid reacts chemically with paint, plastics, rubber materials etc. and
will damage them severly.
1 Brake hose
2 Diaphragm
3 Reservoir tank hose
4 Piston/cup set
5 Push rod
6 Dust boot
7 Piston seal
8 Dust seal
9 Piston
0 Pad shim
A Brake pad
B O-ring
C Brake pad spring
A Brake hose union bolt
B Rear brake master cylinder mounting
C Rear brake master cylinder rod lock nut
D Air bleeder valve
E Brake caliper mounting bolt
F Pad mounting pin
G Brake caliper housing bolt
"
ITEM N
.
m kgf
.
m lb-ft
A 23 2.3 16.5
B 10 1.0 7.3
C 18 1.8 13.0
D 8 0.8 5.7
E 26 2.6 19.0
F 17 1.7 12.5
G 37 3.7 27.0
